          EPIX Framegrabbers
  • Analog, Camera Link and Digital LVDS framegrabbers
  • Support for more than 1,000 cameras from over 70 manufacturers
  • Windows 7, Windows XP and drivers
  • 3rd Party drivers for Matlab, LabView and many other applications
  • SDK support for C/C++, C#, Visual Basic and VB.NET
  • Applications - Machine vision, medical equipment, microscopy and security

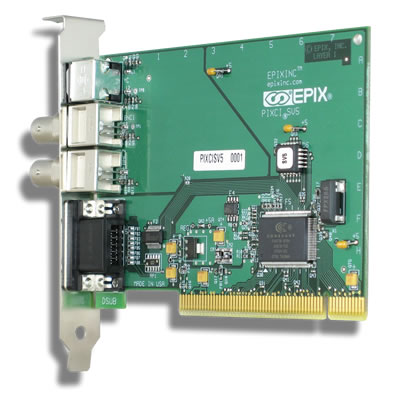

  PIXCI-SV5
  • Analog framegrabber with 2 BNC and 1 S-Video input
  • Video acquisition in color and monochrome
  • S-Video, NTSC, RS-170, CCIR and PAL
  • 4 TTL OUT and 4 TTL IN for Trigger, Strobe, camera reset and  for external device control
  • Automatic detection of video format
  • PCI Bus Master with real-time image transfer

PIXCI-SV5A
  • Analog framegrabber with 3 BNC inputs
  • Video acquisition in color and monochrome
  • S-Video, NTSC, RS-170, CCIR and PAL
  • 4 TTL OUT and 4 TTL IN for Trigger, Strobe, camera reset and for external device control
  • Automatic detection of video format
  • PCI Bus Master with real-time image transfer

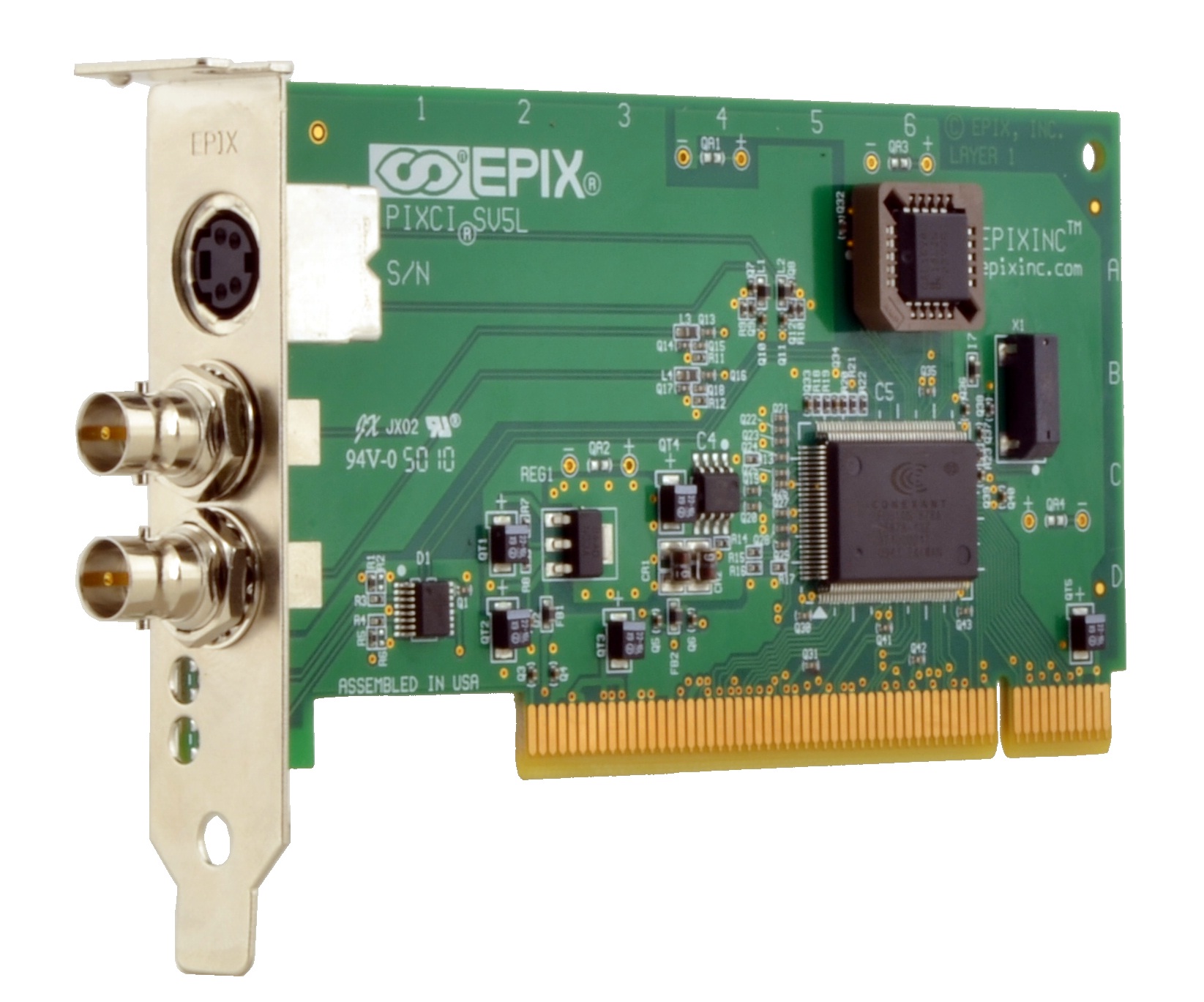

PIXCI-SV5L
  • Analog framegrabber with 2 BNC and 1 S-Video input
  • Video acquisition in color and monochrome
  • S-Video, NTSC, RS-170, CCIR and PAL
  • Automatic detection of video format
  • PCI Bus Master with real-time image transfer

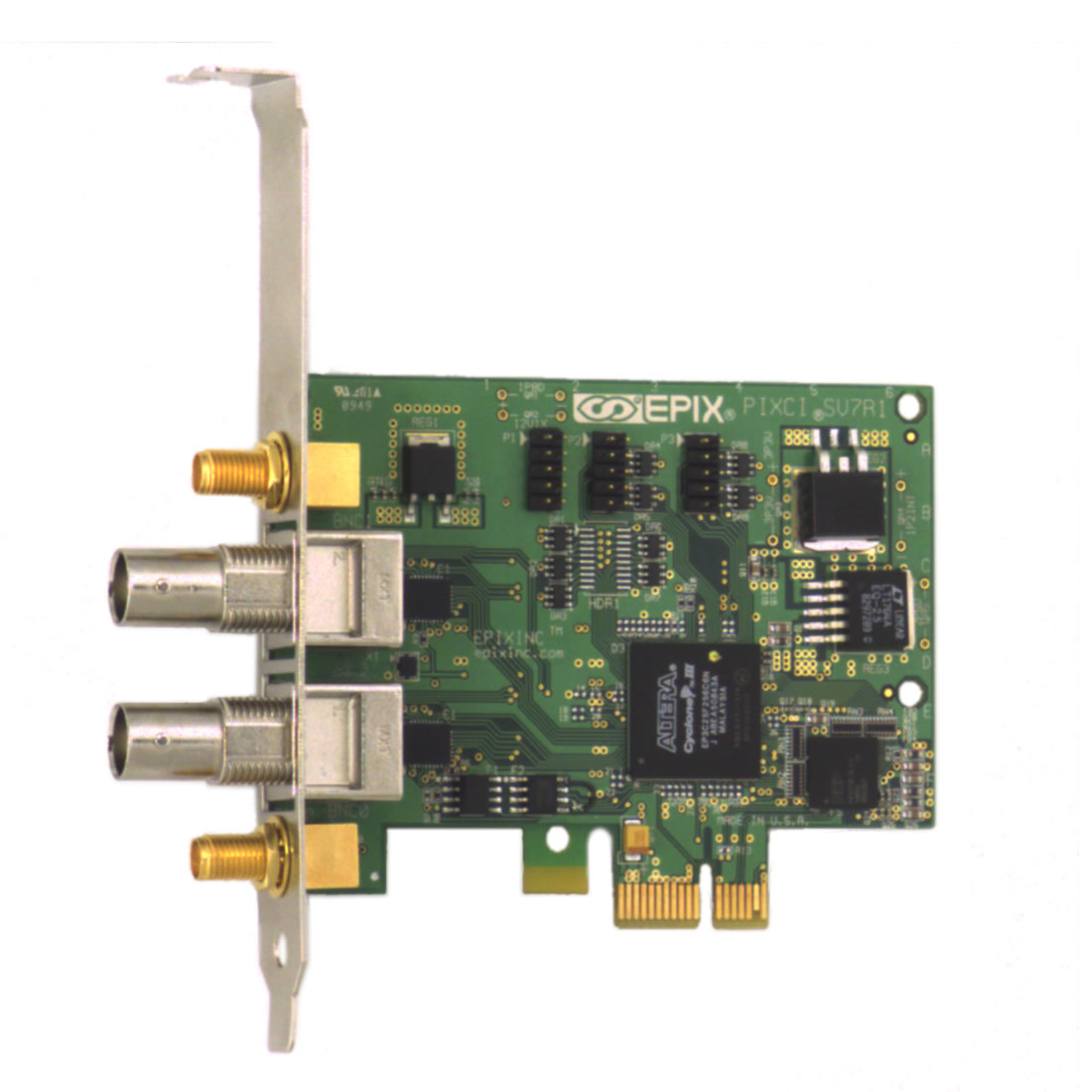

PIXCI-SV7
  • Analog framegrabber with 2 BNC and 1 S-Video input
  • PCI Express
  • Video acquisition in color and monochrome
  • S-Video, NTSC, RS-170, CCIR and PAL
  • Trigger and Strobe support
  • Automatic detection of video format
  • PCI Bus Master with real-time image transfer
  • Available in Low-Profile

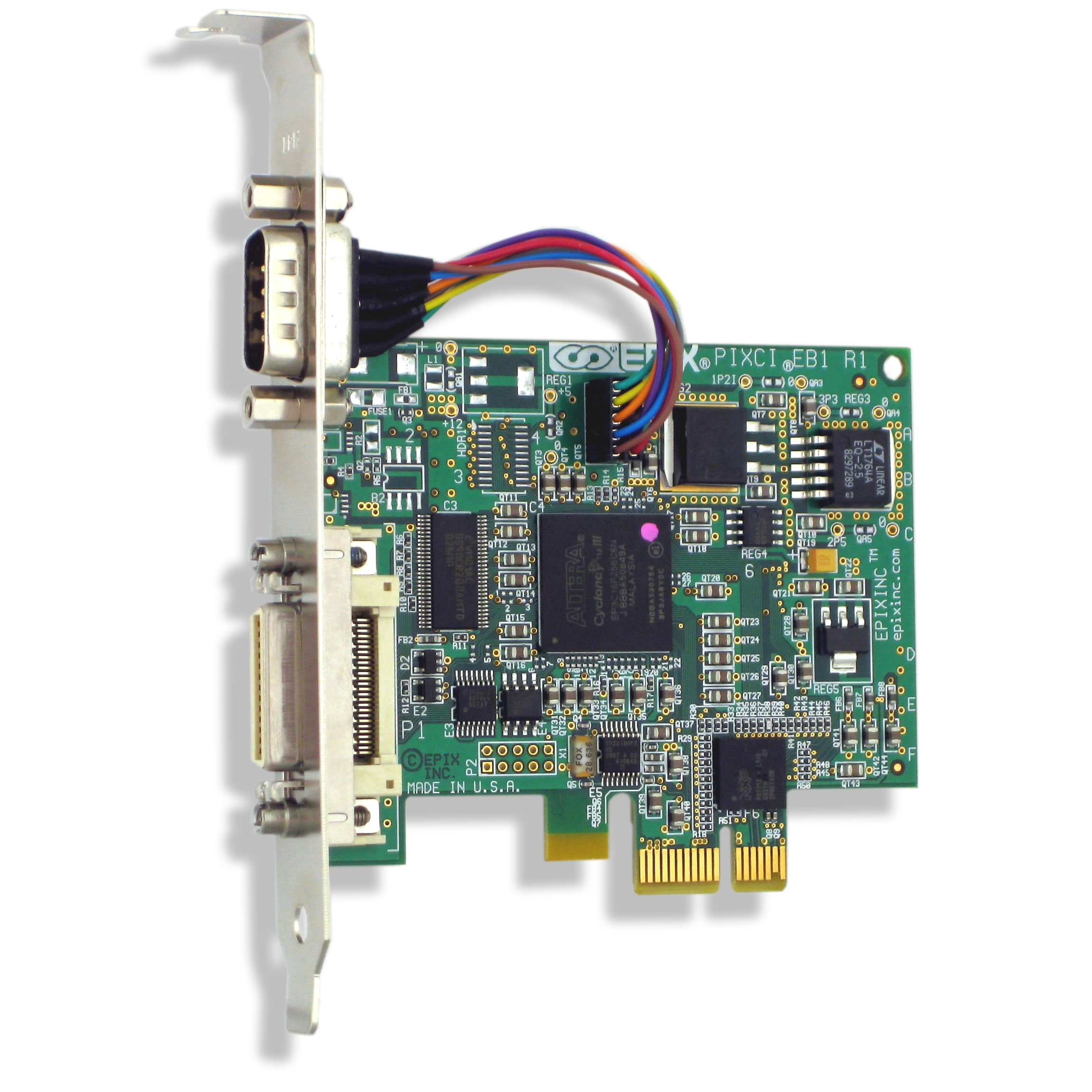

PIXCI-EB1
  • Digital framegrabber - Camera Link Base configuration
  • PCI Express
  • PoCL ( Power Over Camera Link )
  • Support for area scan and line scan cameras
  • Free-running or triggered image acquisition
  • Image acquisition at 2.5 gigabit/second

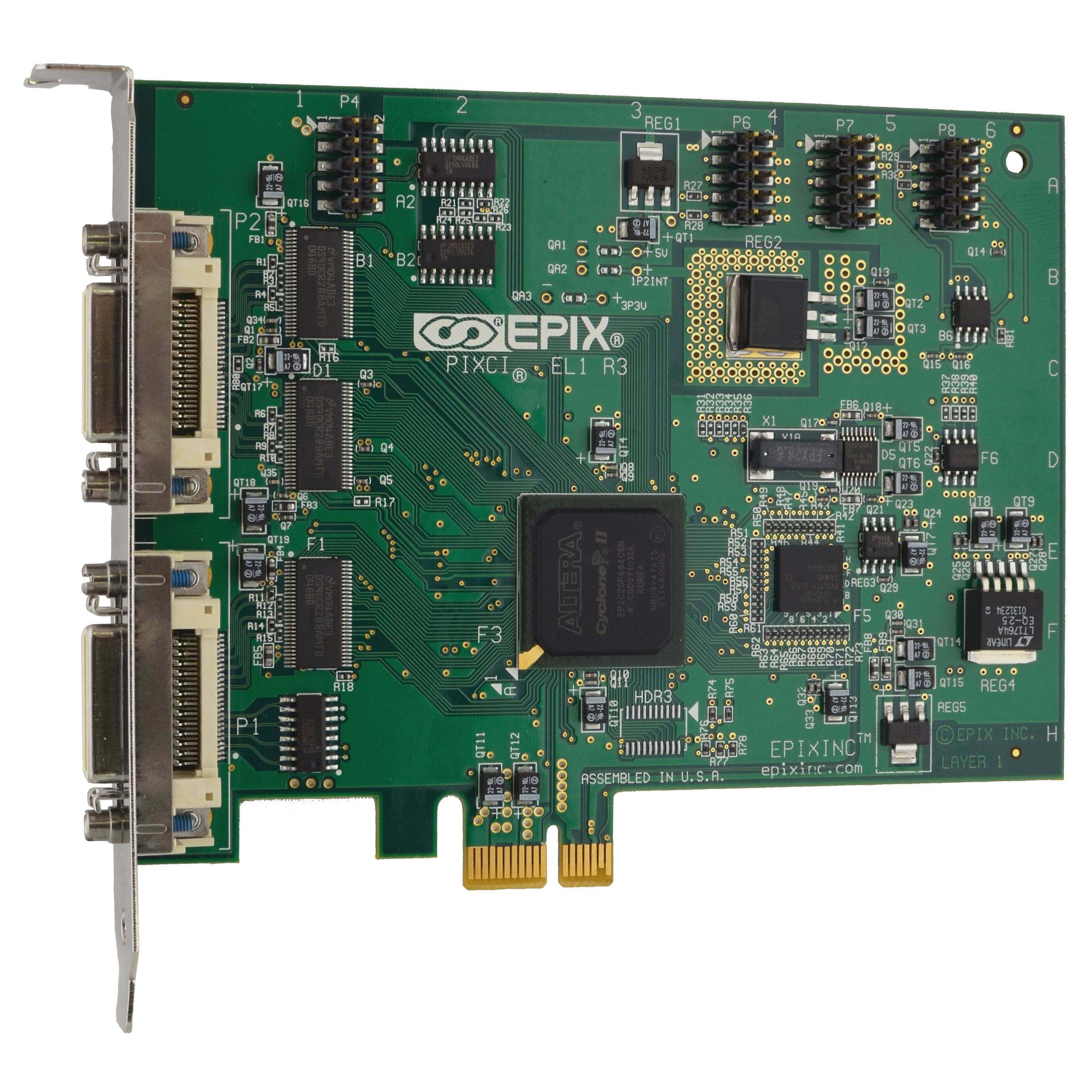

PIXCI-EL1
  • Digital framegrabber - Camera Link
  • Support for Base, Medium and Full modes
  • PCI Express
  • PoCL ( Power Over Camera Link )
  • Support for area scan and line scan cameras
  • Free-running or triggered image acquisition
  • Image acquisition at 2.5 gigabit/second
