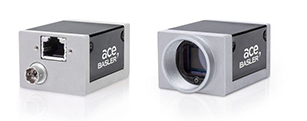

Basler ace Classic
|
Main Features
-
GigE interface with PoE - Power Over Ethernet
support
- Compact industrial housing
-
2 Opto-isolated GPIO signals with trigger
and strobe support
-
Sequencer
acquisition function that allows capture of a
sequence of images, with each image using a different
and pre-configured setting, such as shutter speed and
gain while maintaining the frame rate. Ideal for
ITS/LPR applications
-
Drivers for Windows and Linux with support for ARM
processors
-
3rd Party drivers for LabView, Matlab, Cognex
VisionPro, Adaptive Vision Studio and many others
|
Camera Model
|
Type
|
Resolution
|
Frame Rate
|
Sensor Size
|
Shutter
|
Pixel Size
|
Sensor Model
|
acA640-300gc
|
Color |
640 x 480 Pixels
|
376 FPS |
1/4" CMOS |
Global |
4.8 x 4.8 µm
|
PYTHON 300 |
acA640-300gm
|
Monochrome |
640 x 480 Pixels
|
376 FPS |
1/4" CMOS |
Global |
4.8 x 4.8 µm
|
PYTHON 300
|
acA640-90gc
|
Color |
659 x 494 Pixels
|
90 FPS |
1/3" CCD |
Global |
7.4 x 7.4 µm
|
Sony ICX424 |
acA640-90gm
|
Monochrome |
659 x 494 Pixels
|
90 FPS |
1/3" CCD |
Global
|
7.4 x 7.4 µm
|
Sony ICX424
|
acA640-120gc
|
Color |
659 x 494 Pixels
|
120 FPS |
1/4" CCD |
Global |
5.6 x 5.6 µm
|
Sony ICX618 |
acA640-120gm
|
Monochrome |
659 x 494 Pixels
|
120 FPS |
1/4" CCD |
Global
|
5.6 x 5.6 µm
|
Sony ICX618
|
acA645-100gc
|
Color |
659 x 494 Pixels
|
100 FPS |
1/2" CCD |
Global |
9.9 x 9.9 µm
|
Sony ICX414 |
acA645-100gm
|
Monochrome |
659 x 494 Pixels
|
100 FPS |
1/2" CCD |
Global
|
9.9 x 9.9 µm
|
Sony ICX414
|
acA720-290gc
|
Color |
720 x 540 Pixels
|
293 FPS
|
1/2.9" CCD |
Global |
6.9 x 6.9 µm
|
Sony IMX287
|
acA720-290gm
|
Monochrome |
720 x 540 Pixels
|
293 FPS
|
1/2.9" CCD |
Global |
6.9 x 6.9 µm
|
Sony IMX287 |
acA750-30gc
|
Color |
752 x 580 Pixels
|
30 FPS
|
1/3" CCD |
Global |
6.5 x 6.25 µm
|
Sony ICX409
|
acA750-30gm
|
Monochrome |
752 x 580 Pixels
|
30 FPS
|
1/3" CCD
|
Global
|
6.5 x 6.25 µm
|
Sony ICX409
|
acA780-75gc
|
Color |
782 x 582 Pixels
|
88 FPS
|
1/2" CCD |
Global |
8.3 x 8.3 µm
|
Sony ICX415 |
acA780-75gm
|
Monochrome |
782 x 582 Pixels
|
88 FPS
|
1/2" CCD
|
Global
|
8.3 x 8.3 µm
|
Sony ICX415
|
acA800-200gc
|
Color |
800 x 600 Pixels
|
240 FPS |
1/3.6" CMOS |
Global |
4.8 x 4.8 µm
|
PYTHON 500 |
acA800-200gm
|
Monochrome |
800 x 600 Pixels
|
240 FPS |
1/3.6" CMOS |
Global |
4.8 x 4.8 µm
|
PYTHON 500
|
acA1300-22gc
|
Color |
1296 x 966 Pixels
|
22 FPS
|
1/3" CDD |
Global |
3.75 x 3.75 µm
|
Sony ICX445 |
acA1300-22gm
|
Monochrome |
1296 x 966 Pixels
|
22 FPS
|
1/3" CDD |
Global |
3.75 x 3.75 µm
|
Sony ICX445
|
acA1300-30gc
|
Color |
1296 x 966 Pixels
|
30 FPS
|
1/3" CCD |
Global |
3.75 x 3.75 µm
|
Sony ICX445 |
acA1300-30gm
|
Monochrome |
1296 x 966 Pixels
|
30 FPS
|
1/3" CCD
|
Global
|
3.75 x 3.75 µm
|
Sony ICX445
|
acA1280-60gc
|
Color |
1280 x 1024 Pixels
|
60 FPS
|
1/1.8" CMOS |
Rolling |
5.3 x 5.3 µm
|
EV76C560 |
acA1280-60gm
|
Monochrome |
1280 x 1024 Pixels
|
60 FPS
|
1/1.8" CMOS |
Rolling |
5.3 x 5.3 µm
|
EV76C560
|
acA1300-60gc
|
Color |
1280 x 1024 Pixels
|
60 FPS
|
1/1.8" CMOS |
Global |
5.3 x 5.3 µm
|
EV76C560 |
acA1300-60gm
|
Monochrome |
1280 x 1024 Pixels
|
60 FPS
|
1/1.8" CMOS
|
Global
|
5.3 x 5.3 µm
|
EV76C560
|
acA1300-60gmNIR
|
Monochrome |
1280 x 1024 Pixels
|
60 FPS
|
1/1.8" CMOS
|
Global
|
5.3 x 5.3 µm
|
EV76C661
|
acA1300-75gc
|
Color |
1280 x 1024 Pixels
|
88 FPS
|
1/2" CMOS |
Global |
4.8 x 4.8 µm
|
PYTHON 1300 |
acA1300-75gm
|
Monochrome |
1280 x 1024 Pixels
|
88 FPS
|
1/2" CMOS |
Global |
4.8 x 4.8 µm
|
PYTHON 1300
|
acA1440-73gc
|
Color |
1440 x 1080 Pixels
|
73 FPS
|
1/2.9" CMOS |
Global |
3.45 x 3.45 µm
|
IMX273
|
acA1440-73gm
|
Monochrome |
1440 x 1080 Pixels
|
73 FPS
|
1/2.9" CMOS |
Global |
3.45 x 3.45 µm
|
IMX273
|
acA1600-60gc
|
Color |
1600 x 1200 Pixels
|
60 FPS
|
1/1.8" CMOS |
Global |
4.5 x 4.5 µm
|
EV76C570 |
acA1600-60gm
|
Monochrome |
1600 x 1200 Pixels
|
60 FPS
|
1/1.8" CMOS
|
Global
|
4.5 x 4.5 µm
|
EV76C570
|
acA1600-20gc
|
Color |
1624 x 1234 Pixels
|
20 FPS
|
1/1.8" CCD |
Global |
4.4 x 4.4 µm
|
Sony ICX274 |
acA1600-20gm
|
Monochrome |
1624 x 1234 Pixels
|
20 FPS
|
1/1.8" CCD
|
Global
|
4.4 x 4.4 µm
|
Sony ICX274
|
acA1920-25gc
|
Color |
1920 x 1080 Pixels
|
25 FPS
|
1/3.7" CMOS |
Rolling |
2.2 x 2.2 µm
|
MT9P031 |
acA1920-25gm
|
Monochrome |
1920 x 1080 Pixels
|
25 FPS
|
1/3.7" CMOS |
Rolling |
2.2 x 2.2 µm
|
MT9P031
|
acA1920-40gc
|
Color |
1920 x 1200 Pixels
|
42 FPS
|
1/1.2" CMOS |
Global |
5.86 x 5.86 µm
|
IMX249 |
acA1920-40gm
|
Monochrome |
1920 x 1200 Pixels
|
42 FPS
|
1/1.2" CMOS |
Global |
5.86 x 5.86 µm
|
IMX249
|
acA1920-48gc
|
Color |
1920 x 1200 Pixels
|
50 FPS
|
2/3" CMOS |
Global |
4.8 x 4.8 µm
|
PYTHON 2000 |
acA1920-48gm
|
Monochrome |
1920 x 1200 Pixels
|
50 FPS
|
2/3" CMOS |
Global |
4.8 x 4.8 µm
|
PYTHON 2000
|
acA1920-50gc
|
Color |
1920 x 1200 Pixels
|
50 FPS
|
1/1.2" CMOS |
Global |
5.86 x 5.86 µm
|
Sony IMX174 |
acA1920-50gm
|
Monochrome |
1920 x 1200 Pixels
|
50 FPS
|
1/1.2" CMOS |
Global |
5.86 x 5.86 µm
|
Sony IMX174
|
acA2000-50gc
|
Color |
2046 x 1086 Pixels
|
50 FPS
|
2/3" CMOS |
Global |
5.5 x 5.5 µm
|
CMV2000 |
acA2000-50gm
|
Monochrome |
2046 x 1086 Pixels
|
50 FPS
|
2/3" CMOS
|
Global
|
5.5 x 5.5 µm
|
CMV2000
|
acA2000-50gmNIR
|
Monochrome |
2048 x 1088 Pixels
|
50 FPS
|
2/3" CMOS |
Global |
5.5 x 5.5 µm
|
CMV2000
|
acA2040-35gc
|
Color |
2048 x 1536 Pixels
|
35 FPS |
1/1.8" CMOS |
Global |
3.45 x 3.45 µm
|
IMX265 |
acA2040-35gm
|
Monochrome |
2048 x 1536 Pixels
|
35 FPS |
1/1.8" CMOS |
Global |
3.45 x 3.45 µm
|
IMX265 |
acA2040-25gc
|
Color |
2048 x 2048 Pixels
|
25 FPS
|
1" CMOS |
Global |
5.5 x 5.5 µm
|
CMV4000 |
acA2040-25gm
|
Monochrome |
2048 x 2048 Pixels
|
25 FPS
|
1" CMOS
|
Global
|
5.5 x 5.5 µm
|
CMV4000
|
acA2040-25gmNIR
|
Monochrome |
2048 x 2048 Pixels
|
25 FPS
|
1" CMOS |
Global |
5.5 x 5.5 µm
|
CMV4000
|
acA2440-20gc
|
Color |
2448 x 2048 Pixels
|
20 FPS |
2/3" CMOS |
Global |
3.45 x 3.45 µm
|
IMX264 |
acA2440-20gm
|
Monochrome |
2448 x 2048 Pixels
|
20 FPS |
2/3" CMOS |
Global |
3.45 x 3.45 µm
|
IMX264
|
acA2500-14gc
|
Color |
2592 x 1944 Pixels
|
14 FPS
|
1/2.5" CMOS |
Rolling |
2.2 x 2.2 µm
|
MT9P031 |
acA2500-14gm
|
Monochrome |
2592 x 1944 Pixels
|
14 FPS
|
1/2.5" CMOS |
Rolling |
2.2 x 2.2 µm
|
MT9P031 |
acA2500-20gc
|
Color |
2590 x 2048 Pixels
|
21 FPS
|
1" CMOS |
Global |
4.8 x 4.8 µm
|
PYTHON 5000 |
acA2500-20gm
|
Monochrome |
2590 x 2048 Pixels
|
21 FPS
|
1" CMOS |
Global |
4.8 x 4.8 µm
|
PYTHON 5000
|
acA3088-16gc
|
Color |
3088 x 2064 Pixels
|
21 FPS
|
1/1.8" CMOS |
Rolling |
2.4 x 2.4 µm
|
IMX178
|
acA3088-16gm
|
Monochrome |
3088 x 2064 Pixels
|
21 FPS
|
1/1.8" CMOS |
Rolling |
2.4 x 2.4 µm
|
IMX178
|
acA3800-10gc
|
Color |
3856 x 2764 Pixels
|
10 FPS
|
1/2.3" CMOS |
Rolling |
1.67 x 1.67 µm
|
MT9J003 |
acA3800-10gm
|
Monochrome |
3856 x 2764 Pixels
|
10 FPS
|
1/2.3" CMOS
|
Rolling
|
1.67 x 1.67 µm
|
MT9J003
|
acA4024-8gc
|
Color |
4024 x 3036 Pixels
|
8 FPS |
1/1.7" CMOS |
Rolling |
1.85 x 1.85 µm
|
IMX226 |
acA4024-8gm
|
Monochrome |
4024 x 3036 Pixels
|
8 FPS |
1/1.7" CMOS |
Rolling |
1.85 x 1.85 µm
|
IMX226 |
acA4600-7gc
|
Color |
4608 x 3288 Pixels
|
7 FPS
|
1/2.3" CMOS
|
Rolling
|
1.4 x 1.4 µm
|
MT9F002
|
Basler ace 2 Basic
|
Main Features
-
Optimized hardware meets state-of-the-art CMOS sensor
technology
-
Powerful Computer Vision feature set
-
Unbeatable price/performance ratio for standard vision
applications
|
Camera Model
|
Type
|
Resolution
|
Frame Rate
|
Sensor Size
|
Shutter
|
Pixel Size
|
Sensor Model
|
a2A1920-51gmBAS
|
Monochrome |
1920 x 1200 Pixels
|
51 FPS |
1/2.3'' CMOS
|
Global |
3.45 x 3.45µm
|
Sony IMX392 |
a2A1920-51gcBAS
|
Color |
1920 x 1200 Pixels
|
51 FPS |
1/2.3" CMOS |
Global |
3.45 x 3.45 µm
|
Sony IMX392
|
a2A2448-23gmBAS
|
Monochrome |
2448 x 2048 Pixels
|
23 FPS |
1/1.8" CMOS |
Global |
2.74 x 2.74µm
|
Sony IMX547 |
a2A2448-23gcBAS
|
Color |
2448 x 2048 Pixels
|
23 FPS |
1/1.8" CMOS |
Global
|
2.74 x 2.74µm
|
Sony IMX547
|
a2A2590-22gmBAS
|
Monochrome |
2592 x 1944 Pixels
|
22 FPS
|
1/2.8" CMOS |
Rolling |
2 x 2 µm
|
Sony IMX334ROI
|
a2A2590-22gcBAS
|
Color |
2592 x 1944 Pixels
|
22 FPS
|
1/2.8" CMOS |
Rolling |
2 x 2µm
|
Sony IMX334ROI |
a2A2600-20gmBAS
|
Monochrome |
2600 x 2160 Pixels
|
20 FPS
|
1/2" CMOS |
Global |
2.5 x 2.5µm
|
Gpixel GMAX2505 |
a2A2600-20gcBAS
|
Color |
2600 x 2160 Pixels
|
20 FPS
|
1/2" CMOS
|
Global
|
2.5 x 2.5µm
|
Gpixel GMAX2505
|
a2A2840-14gmBAS
|
Monochrome |
2840 x 2840 Pixels
|
14 FPS
|
2/3" CMOS |
Global |
2.74 x 2.74µm
|
Sony IMX546 |
a2A2840-14gcBAS
|
Color |
2840 x 2840 Pixels
|
14 FPS
|
2/3" CMOS |
Global |
2.74 x 2.74 µm
|
Sony IMX546
|
a2A3840-13gmBAS
|
Monochrome |
3840 x 2160 Pixels
|
13 FPS
|
1/1.8" CMOS |
Rolling |
2 x 2 µm
|
Sony IMX334 |
a2A3840-13gcBAS
|
Color |
3840 x 2160 Pixels
|
13 FPS
|
1/1.8" CMOS |
Rolling |
2 x 2µm
|
Sony IMX334
|
a2A4096-9gmBAS
|
Monochrome |
4096 x 3000 Pixels
|
9 FPS
|
1/1.1" CMOS
|
Global
|
2.74 x 2.74µm
|
Sony IMX545
|
a2A4096-9gcBAS
|
Color |
4096 x 3000 Pixels
|
9 FPS
|
1/1.1" CMOS |
Global |
2.74 x 2.74µm
|
Sony IMX545 |
a2A4200-12gmBAS
|
Monochrome |
4200 px x 2160 Pixels
|
12 FPS
|
2/3" CMOS |
Global |
2.5 x 2.5µm
|
Gpixel GMAX2509
|
a2A4200-12gcBAS
|
Color |
4200 x 2160 Pixels
|
12 FPS
|
2/3" CMOS |
Global |
2.5 x 2.5µm
|
Gpixel GMAX2509 |
a2A4504-5gmBAS
|
Monochrome |
4504 x 4504 Pixels
|
5 FPS
|
1/1" CMOS
|
Global
|
2.74 x 2.74µm
|
Sony IMX541
|
a2A4504-5gcBAS
|
Color |
4504 x 4504 Pixels
|
5 FPS
|
1/1" CMOS |
Global |
2.74 x 2.74µm
|
Sony IMX541 |
a2A5320-7gmBAS
|
Monochrome |
5320 x 3032 Pixels
|
7 FPS
|
1/1" CMOS |
Global |
2.74 x 2.74µm
|
Sony IMX542
|
a2A5320-7gcBAS
|
Color |
5320 x 3032 Pixels
|
7 FPS
|
1.1" CMOS |
Global |
2.74 x 2.74µm
|
Sony IMX542 |
a2A5328-4gmBAS
|
Monochrome |
5328 x 4608 Pixels
|
4 FPS
|
1.2" CMOS |
Global |
2.74 x 2.74 µm
|
Sony IMX540
|
a2A5328-4gcBAS
|
Color |
5328 x 4608 Pixels
|
4 FPS
|
1.2" CMOS |
Global |
2.74 x 2.74 µm
|
Sony IMX540 |
Basler ace 2 Pro
|
Main Features
-
Optimized hardware meets state-of-the-art CMOS sensor
technology
-
Powerful Computer Vision feature set
-
Unbeatable price/performance ratio for standard vision
applications
|
Camera Model
|
Type
|
Resolution
|
Frame Rate
|
Sensor Size
|
Shutter
|
Pixel Size
|
Sensor Model
|
a2A1920-51gcPRO
|
Color |
1920 x 1200 Pixels
|
51 FPS |
1/2.3'' CMOS
|
Global |
3.45 x 3.45µm
|
Sony IMX392 |
a2A1920-51gmPRO
|
Monochrome |
1920 x 1200 Pixels
|
51 FPS |
1/2.3" CMOS |
Global |
3.45 x 3.45 µm
|
Sony IMX392
|
a2A2448-23gmPRO
|
Monochrome |
2448 x 2048 Pixels
|
23 FPS |
1/1.8" CMOS |
Global |
2.74 x 2.74µm
|
Sony IMX547 |
a2A2448-23gcPRO
|
Color |
2448 x 2048 Pixels
|
23 FPS |
1/1.8" CMOS |
Global
|
2.74 x 2.74µm
|
Sony IMX547
|
a2A2590-22gmPRO
|
Monochrome |
2592 x 1944 Pixels
|
22 FPS
|
1/2.8" CMOS |
Rolling |
2 x 2µm
|
Sony IMX334ROI
|
a2A2590-22gcPRO
|
Color |
2592 x 1944 Pixels
|
22 FPS
|
1/2.8" CMOS |
Rolling |
2 x 2µm
|
Sony IMX334ROI |
a2A2600-20gmPRO
|
Monochrome |
2600 x 2160 Pixels
|
20 FPS
|
1/2" CMOS |
Global |
2.5 x 2.5µm
|
Gpixel GMAX2505 |
a2A2600-20gcPRO
|
Color |
2600 x 2160 Pixels
|
20 FPS
|
1/2" CMOS
|
Global
|
2.5 x 2.5µm
|
Gpixel GMAX2505
|
a2A2840-14gmPRO
|
Monochrome |
2840 x 2840 Pixels
|
14 FPS
|
2/3" CMOS |
Global |
2.74 x 2.74µm
|
Sony IMX546 |
a2A2840-14gcPRO
|
Color |
2840 x 2840 Pixels
|
14 FPS
|
2/3" CMOS |
Global |
2.74 x 2.74 µm
|
Sony IMX546
|
a2A3840-13gmPRO
|
Monochrome |
3840 x 2160 Pixels
|
13 FPS
|
1/1.8" CMOS |
Rolling |
2 x 2µm
|
Sony IMX334 |
a2A3840-13gcPRO
|
Color |
3840 x 2160 Pixels
|
13 FPS
|
1/1.8" CMOS |
Rolling |
2 x 2µm
|
Sony IMX334
|
a2A4096-9gmPRO
|
Monochrome |
4096 x 3000 Pixels
|
9 FPS
|
1/1.1" CMOS
|
Global
|
2.74 x 2.74µm
|
Sony IMX545
|
a2A4096-9gcPRO
|
Color |
4096 x 3000 Pixels
|
9 FPS
|
1/1.1" CMOS |
Global |
2.74 x 2.74µm
|
Sony IMX545 |
a2A4200-12gmPRO
|
Monochrome |
4200 px x 2160 Pixels
|
12 FPS
|
2/3" CMOS |
Global |
2.5 x 2.5µm
|
Gpixel GMAX2509
|
a2A4200-12gcPRO
|
Color |
4200 x 2160 Pixels
|
12 FPS
|
2/3" CMOS |
Global |
2.5 x 2.5µm
|
Gpixel GMAX2509 |
a2A4504-5gmPRO
|
Monochrome |
4504 x 4504 Pixels
|
5 FPS
|
1/1" CMOS
|
Global
|
2.74 x 2.74µm
|
Sony IMX541
|
a2A4504-5gcPRO
|
Color |
4504 x 4504 Pixels
|
5 FPS
|
1/1" CMOS |
Global |
2.74 x 2.74µm
|
Sony IMX541 |
a2A5320-7gmPRO
|
Monochrome |
5320 x 3032 Pixels
|
7 FPS
|
1/1" CMOS |
Global |
2.74 x 2.74µm
|
Sony IMX542
|
a2A5320-7gcPRO
|
Color |
5320 x 3032 Pixels
|
7 FPS
|
1.1" CMOS |
Global |
2.74 x 2.74µm
|
Sony IMX542 |
a2A5328-4gmPRO
|
Monochrome |
5328 x 4608 Pixels
|
4 FPS
|
1.2" CMOS |
Global |
2.74 x 2.74 µm
|
Sony IMX540
|
a2A5328-4gcPRO
|
Color |
5328 x 4608 Pixels
|
4 FPS
|
1.2" CMOS |
Global |
2.74 x 2.74 µm
|
Sony IMX540 |
Basler Ace L
|
Main Features
-
GigE interface with PoE - Power Over Ethernet
support
- Compact industrial housing
-
2 Opto-isolated GPIO signals with trigger
and strobe support
-
Sequencer
acquisition function that allows capture of a
sequence of images, with each image using a different
and pre-configured setting, such as shutter speed and
gain while maintaining the frame rate. Ideal for
ITS/LPR applications
-
Drivers for Windows and Linux with support for ARM
processors
-
3rd Party drivers for LabView, Matlab, Cognex
VisionPro, Adaptive Vision Studio and many others
|
Camera Model
|
Type
|
Resolution
|
Frame Rate
|
Sensor Size
|
Shutter
|
Pixel Size
|
Sensor Model
|
acA4096-11gm
|
Monochrome |
4096 x 2160 Pixels
|
12 FPS
|
CMOS |
Global |
3.45 x 3.45 µm
|
IMX267
|
acA4096-11gc
|
Color |
4096 x 2160 Pixels
|
12 FPS
|
CMOS |
Global |
3.45 x 3.45 µm
|
IMX267
|
acA4112-8gm
|
Monochrome |
4096 x 3000 Pixels
|
8 FPS
|
CMOS |
Global |
3.45 x 3.45 µm
|
IMX304
|
acA4112-8gc
|
Color |
4096 x 3000 Pixels
|
8 FPS |
CMOS |
Global |
3.45 x 3.45 µm
|
IMX304
|

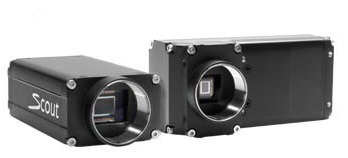

Basler Scout
|
Main Features
- GigE interface
-
Available in C and CS-Mount versions
-
6 Opto-isolated GPIO signals with trigger
and strobe support
-
Sequencer
acquisition function that allows capture of a
sequence of images, with each image using a different
and pre-configured setting, such as shutter speed and
gain while maintaining the frame rate. Ideal for
ITS/LPR applications
-
Compatible with the GigEVision and GenICam standards
-
Drivers for Windows and Linux with support for ARM
processors
-
3rd Party drivers for LabView, Matlab, Cognex
VisionPro, Adaptive Vision Studio and many others
|
Camera Model
|
Type
|
Resolution
|
Frame Rate
|
Sensor Size
|
Shutter
|
Pixel Size
|
Sensor Model
|
scA640-70gc
|
Color |
659 x 494 Pixels
|
70 FPS |
1/3" CCD |
Global |
7.4 x 7.4 µm
|
Sony ICX424
|
scA640-70gm
|
Monochrome |
659 x 494 Pixels
|
70 FPS |
1/3" CCD |
Global |
7.4 x 7.4 µm
|
Sony ICX424
|
scA640-74gc
|
Color |
659 x 494 Pixels
|
79 FPS |
1/2" CCD |
Global |
9.9 x 9.9 µm
|
Sony ICX414
|
scA640-74gm
|
Monochrome |
659 x 494 Pixels
|
79 FPS |
1/2" CCD |
Global |
9.9 x 9.9 µm
|
Sony ICX414
|
scA640-120gc
|
Color |
659 x 494 Pixels
|
122 FPS |
1/4" CCD |
Global |
5.6 x 5.6 µm
|
Sony ICX618
|
scA640-120gm
|
Monochrome |
659 x 494 Pixels
|
122 FPS |
1/4" CCD |
Global |
5.6 x 5.6 µm
|
Sony ICX618
|
scA750-60gc
|
Color |
752 x 480 Pixels
|
64 FPS
|
1/3" CMOS |
Global |
6.0 x 6.0 µm
|
Aptina MT9V022
|
scA750-60gm
|
Monochrome |
752 x 480 Pixels
|
64 FPS
|
1/3" CMOS
|
Global |
6.0 x 6.0 µm
|
Aptina MT9V022
|
scA780-54gc
|
Color |
782 x 582 Pixels
|
55 FPS
|
1/2" CCD |
Global |
8.3 x 8.3 µm
|
Sony ICX415
|
scA780-54gm
|
Monochrome |
782 x 582 Pixels
|
55 FPS
|
1/2" CCD
|
Global |
8.3 x 8.3 µm
|
Sony ICX415
|
scA1300-32gc
|
Color |
1296 x 966 Pixels
|
32 FPS
|
1/3" CCD |
Global |
3.75 x 3.75 µm
|
Sony ICX445
|
scA1300-32gm
|
Monochrome |
1296 x 966 Pixels
|
32 FPS
|
1/3" CCD
|
Global |
3.75 x 3.75 µm
|
Sony ICX445
|
scA1390-17gc
|
Color |
1392 x 1040 Pixels
|
17 FPS
|
1/2" CCD |
Global |
4.65 x 4.65 µm
|
Sony ICX267
|
scA1390-17gm
|
Monochrome |
1392 x 1040 Pixels
|
17 FPS
|
1/2" CCD
|
Global |
4.65 x 4.65 µm
|
Sony ICX267
|
scA1400-17gc
|
Color |
1392 x 1040 Pixels
|
17 FPS
|
2/3" CCD |
Global |
6.45 x 6.45 µm
|
Sony ICX285
|
scA1400-17gm
|
Monochrome |
1392 x 1040 Pixels
|
17 FPS
|
2/3" CCD
|
Global |
6.45 x 6.45 µm
|
Sony ICX285
|
scA1400-30gc
|
Color |
1392 x 1040 Pixels
|
30 FPS |
2/3" CCD |
Global |
6.45 x 6.45 µm
|
Sony ICX285
|
scA1400-30gm
|
Monochrome |
1392 x 1040 Pixels
|
30 FPS
|
2/3" CCD
|
Global |
6.45 x 6.45 µm
|
Sony ICX285
|
scA1600-14gc
|
Color |
1628 x 1236 Pixels
|
14 FPS
|
1/1.8" CCD |
Global |
4.4 x 4.4 µm
|
Sony ICX274
|
scA1600-14gm
|
Monochrome |
1628 x 1236 Pixels
|
14 FPS
|
1/1.8" CCD
|
Global |
4.4 x 4.4 µm
|
Sony ICX274
|
scA1600-28gc
|
Color |
1628 x 1236 Pixels
|
28 FPS |
1/1.8" CCD |
Global |
4.4 x 4.4 µm
|
Sony ICX274
|
scA1600-28gm
|
Monochrome |
1628 x 1236 Pixels
|
28 FPS
|
1/1.8" CCD
|
Global |
4.4 x 4.4 µm
|
Sony ICX274
|

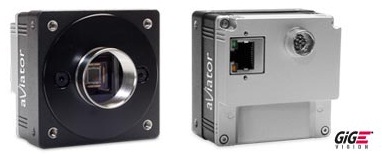

Basler Aviator
|
Main Features
- GigE interface
-
6 Opto-isolated GPIO signals with trigger
and strobe support
-
Compatible with the GigEVision and GenICam standards
-
Drivers for Windows and Linux with support for ARM
processors
-
3rd Party driver support for LabView, Matlab, Cognex
VisionPro, Adaptive Vision Studio and many others
|
Camera Model
|
Type
|
Resolution
|
Frame Rate
|
Sensor Size
|
Shutter
|
Pixel Size
|
Sensor Model
|
avA1000-100gc
|
Color |
1024 x 1024 Pixels
|
101 FPS |
1/2" CCD |
Global |
5.5 x 5.5 µm
|
Kodak KAI-01050
|
avA1000-100gm
|
Monochrome |
1024 x 1024 Pixels
|
101 FPS |
1/2" CCD |
Global |
5.5 x 5.5 µm
|
Kodak KAI-01050
|
avA1600-50gc
|
Color |
1600 x 1200 Pixels
|
55 FPS |
2/3" CCD |
Global |
5.5 x 5.5 µm
|
Kodak KAI-02050
|
avA1600-50gm
|
Monochrome |
1600 x 1200 Pixels
|
55 FPS |
2/3" CCD |
Global |
5.5 x 5.5 µm
|
Kodak KAI-02050
|
avA1900-50gc
|
Color |
1920 x 1080 Pixels
|
51 FPS |
2/3" CCD |
Global |
5.5 x 5.5 µm
|
Kodak KAI-02150
|
avA1900-50gm
|
Monochrome |
1920 x 1080 Pixels
|
51 FPS |
2/3" CCD |
Global |
5.5 x 5.5 µm
|
Kodak KAI-02150
|
avA2300-25gc
|
Color |
2330 x 1750 Pixels
|
26 FPS |
1" CCD |
Global |
5.5 x 5.5 µm
|
Kodak KAI-02050
|
avA2300-25gm
|
Monochrome |
2330 x 1750 Pixels
|
26 FPS |
1" CCD |
Global |
5.5 x 5.5 µm
|
Kodak KAI-02050
|

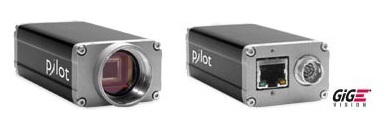

Basler Pilot
|
Main Features
- GigE interface
-
6 Opto-isolated GPIO signals with trigger
and strobe support
-
Compatible with the GigEVision and GenICam standards
-
Drivers for Windows and Linux with support for ARM
processors
-
3rd Party driver support for LabView, Matlab, Cognex
VisionPro, Adaptive Vision Studio and many others
|
Camera Model
|
Type
|
Resolution
|
Frame Rate
|
Sensor Size
|
Shutter
|
Pixel Size
|
Sensor Model
|
piA640-210gm
|
Monochrome |
646 x 486 Pixels
|
210 FPS |
1/3" CCD |
Global |
7.4 x 7.4 µm
|
Kodak KAI-0340
|
piA640-210gc
|
Color |
646 x 486 Pixels
|
210 FPS |
1/3" CCD |
Global |
7.4 x 7.4 µm
|
Kodak KAI-0340
|
piA1000-48gm
|
Monochrome |
1000 x 1000 Pixels
|
48 FPS |
2/3" CCD |
Global |
7.4 x 7.4 µm
|
Kodak KAI-1020
|
piA1000-48gc
|
Color |
1000 x 1000 Pixels
|
48 FPS |
2/3" CCD |
Global |
7.4 x 7.4 µm
|
Kodak KAI-1020
|
piA1000-60gm
|
Monochrome |
1000 x 1000 Pixels
|
60 FPS |
2/3" CCD |
Global |
7.4 x 7.4 µm
|
Kodak KAI-1020
|
piA1000-60gc
|
Color |
1000 x 1000 Pixels
|
60 FPS |
2/3" CCD |
Global |
7.4 x 7.4 µm
|
Kodak KAI-1020
|
piA1600-35gm
|
Monochrome |
1604 x 1204 Pixels
|
35 FPS |
1" CCD |
Global |
7.4 x 7.4 µm
|
Kodak KAI-2020
|
piA1600-35gc
|
Color |
1604 x 1204 Pixels
|
35 FPS |
1" CCD |
Global |
7.4 x 7.4 µm
|
Kodak KAI-2020
|
piA1900-32gm
|
Monochrome |
1928 x 1084 Pixels
|
32 FPS |
1" CCD |
Global |
7.4 x 7.4 µm
|
Kodak KAI-2093
|
piA2400-17gm
|
Monochrome |
2456 x 2058 Pixels
|
17 FPS |
2/3" CCD |
Global |
3.45 x 3.45 µm
|
Sony ICX625
|
piA2400-17gc
|
Color |
2456 x 2058 Pixels
|
17 FPS |
2/3" CCD |
Global |
3.45 x 3.45 µm
|
Sony ICX625 |

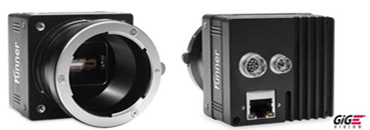

Basler Runner - Line Scan
|
Main Features
- Linescan color camera
-
Resolution 2098 x 3 Pixels
- GigE interface
-
Synchronization via external trigger or
software
-
Compatible with the GigEVision and GenICam standards
|
Camera Model
|
Type
|
Resolution
|
Line Rate
|
Sensor Size
|
Pixel Size
|
Sensor Model
|
ruL2098-10gc
|
Color |
2098 x 3 Pixels
|
9.20 KHz
|
CCD |
14 x 14 µm
|
Kodak KLI-2113
|

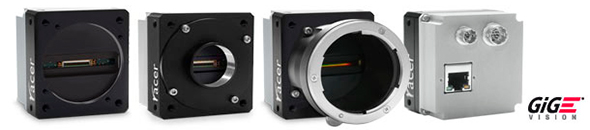

Basler Racer - Line
Scan
|
Main Features
-
Linescan cameras with resolutions up to 12.288
Pixels
-
GigE interface
-
Synchronization via external trigger, software or
internal timing
-
Compatible with the GigEVision and
GenICam standards
-
Support for C-Mount, F-Mount and M42 lenses
|
Camera Model
|
Type
|
Resolution
|
Line Rate
|
Sensor Size
|
Pixel Size
|
Sensor Model
|
raL2048-48gm
|
Monochrome |
2048 x 1 Pixels
|
51.00 KHz |
CMOS |
7.0 x 7.0 µm
|
DR-2K-7
|
raL4096-24gm
|
Monochrome |
4096 x 1 Pixels
|
26.00 KHz |
CMOS |
7.0 x 7.0 µm
|
DR-4K-7
|
raL6144-16gm
|
Monochrome |
6144 x 1 Pixels
|
17.00 KHz |
CMOS |
7.0 x 7.0 µm
|
DR-6K-7
|
raL8192-12gm
|
Monochrome |
8192 x 1 Pixels
|
12.00 KHz |
CMOS |
3.5 x 3.5 µm
|
DR-8K-3.5
|
raL12288-8gm
|
Monochrome |
12288 x 1 Pixels
|
8.00 KHz |
CMOS |
3.5 x 3.5 µm
|
DR-12K-3.5
|
raL2048-80km
|
Monochrome |
2048 x 1 Pixels
|
80 kHz |
CMOS |
7.0 x 7.0 µm
|
DR-2k-7
|
raL4096-80km
|
Monochrome |
4096 x 1 Pixels
|
80 kHz |
CMOS |
7.0 x 7.0 µm
|
DR-4k-7
|
raL6144-80km
|
Monochrome |
6144 x 1 Pixels
|
80 kHz |
CMOS |
7.0 x 7.0 µm
|
DR-6k-7
|
raL8192-80km
|
Monochrome |
8192 x 1 Pixels
|
80 kHz |
CMOS |
3.5 x 3.5 µm
|
DR-8k-3.5
|
raL12288-66km
|
Monochrome |
12288 x 1 Pixels
|
66 kHz |
CMOS |
3.5 x 3.5 µm
|
DR-12k-3.5
|
|
