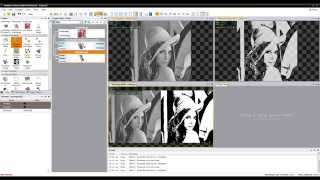

1. Adaptive Vision Studio Tutorial: Getting Started

Adaptive Vision Studio Tutorial: Getting Started

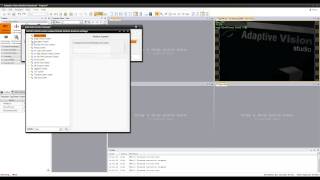

This tutorial presents the very basics of Adaptive Vision Studio environment. You will learn how to create and execute easy programs, so it's the right place to start if you're completely new to Adaptive Vision Studio.

2. Image Acquisition (from files, web camera)

Image Acquisition (from files, web camera)

This tutorial demonstrates how you can load images from disk or grab them from a web camera in Adaptive Vision Studio environment. It introduces the Image Acquisition category in the Toolbox which is a starting point from loading images to your program from various sources.

3. Adaptive Vision Studio Tutorial: Image Acquisition (GigE Vision)

Adaptive Vision Studio Tutorial: Image Acquisition (GigE Vision)

This tutorial shows how to get started using GigE Vision cameras in Adaptive Vision Studio.

4. Adaptive Vision Studio Tutorial: Image Acquisition (GenICam)

Adaptive Vision Studio Tutorial: Image Acquisition (GenICam)

In this tutorial we show how you can grab images using the GenICam standard. Please note, that you need to have a GenTL Provider for your camer installed on your PC.

5. Image Acquisition (industrial camera native drivers)

Image Acquisition (industrial camera native drivers)

In this tutorial we show how you can grab images using an industrial camera and its native drivers in Adaptive Vision Studio. In the video we're using a USB camera and a dedicated filter. Please note, that to use this kind of image acuisition you need to make sure that your camera vendor is supported in AV Studio and that you have installed proper camera drivers.

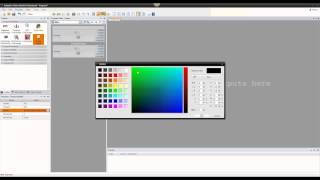

6. Adaptive Vision Studio Tutorial: Types of Data

Adaptive Vision Studio Tutorial: Types of Data

This tutorial presents some of the most common data types in Adaptive Vision Studio.

7. Adaptive Vision Studio Tutorial: Macrofilters

Adaptive Vision Studio Tutorial: Macrofilters

This tutorial is an introduction to the concept of macrofilters in Adaptive Vision Studio. You can use macrofilters to create your own re-usable subprograms or to simply make your program well organized.

8. Adaptive Vision Studio Tutorial: Previews

Adaptive Vision Studio Tutorial: Previews

In this part of the tutorial we're introducing the tools available for Preview Panels in Adaptive Vision Studio.

9. Adaptive Vision Studio: Execution Modes

Adaptive Vision Studio: Execution Modes

This time, we'll introduce different program execution modes in Adaptive Vision Studio.

10. Adaptive Vision Studio Tutorial: Optional and Conditional Types

Adaptive Vision Studio Tutorial: Optional and Conditional Types

This tutorial presents the conecept of optional (e.g. Region*) and conditional (e.g. String?) port in Adaptive Vision Studio and corresponding to them respectively special valuas: Auto (optional) and Nil (conditional).

11. Adaptive Vision Studio Tutorial: Types of Connections

Adaptive Vision Studio Tutorial: Types of Connections

In this video we'll go through the most common types of connections (normal, conversion, array and conditional connection) in Adaptive Vision Studio. There can also be more complex types of connections such as e.g. a conditional array connection - the good news is that they are created automatically, you just need to understand the main concept.

12. Adaptive Vision Studio Tutorial: Dialog Edit Plugins

Adaptive Vision Studio Tutorial: Dialog Edit Plugins

This tutorial is an overview of dialog edit plugins in Adaptive Vision Studio. We'll present here plugins for editing paths, fitting fields and regions (but please note that there are also other types which can be edited in dialog edit plugins).

13. Adaptive Vision Studio Tutorial: HMI Basics

Adaptive Vision Studio Tutorial: HMI Basics

This tutorial shows you the basics of creating HMI for your projects in Adaptive Vision Studio.

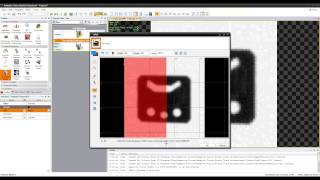

14. Adaptive Vision Studio Tutorial: Template Matching

Adaptive Vision Studio Tutorial: Template Matching

This tutorial demonstrates how you can perform Template Matching in Adaptive Vision Studio using a 2-step graphical creator for that.

15. Adaptive Vision Studio Tutorial: Counting Nails Example

Adaptive Vision Studio Tutorial: Counting Nails Example

This tutorial presents how you can use Blob Analysis technique in Adaptive Vision Studio to count nails among other objects in an image aquired with backlight.

16. Adaptive Vision Studio Examples - Reading Barcodes

Adaptive Vision Studio Examples - Reading Barcodes

This video presents how you can read barcodes of given format using the ReadSingleBarcode filter (ReadBarcodes: Single) in Adaptive Vision Studio.

17. Adaptive Vision Studio Examples - Count and Classify Mounts

Adaptive Vision Studio Examples - Count and Classify Mounts

This video presents how you can count and classify (defected / not defected) objects in an image using the Blob Analysis technique and some region feature (here: area) in Adaptive Vision Studio.

18. Adaptive Vision Studio Examples - Reading DataMatrix Codes

Adaptive Vision Studio Examples - Reading DataMatrix Codes

This video presents how you can read DataMatrix codes using the ReadDataMatrixCodes filter in Adaptive Vision Studio.

19. Adaptive Vision Studio Examples - Count Nails

Adaptive Vision Studio Examples - Count Nails

This video presents how you can count objects (here: nails) in an image using the Blob Analysis technique in Adaptive Vision Studio.

20. Adaptive Vision Studio Examples - Sorting Blobs

Adaptive Vision Studio Examples - Sorting Blobs

This video presents how you can sort blobs (representing objects of different sizes) using the Blob Analysis technique in Adaptive Vision Studio.

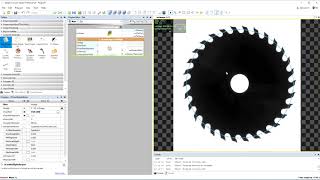

21. Adaptive Vision Studio Examples - Count Saw Teeth

Adaptive Vision Studio Examples - Count Saw Teeth

This video presents how you can count teeth of a circular saw using the 1D Edge Detection technique in Adaptive Vision Studio.

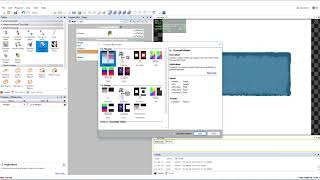

22. Adaptive Vision Studio Examples - Detect Chocolate

Adaptive Vision Studio Examples - Detect Chocolate

This video presents how you can calculate wafer area covered by chocolate using thresholding (for extracting chocolate) and a formula (for performing calculations) in Adaptive Vision Studio.

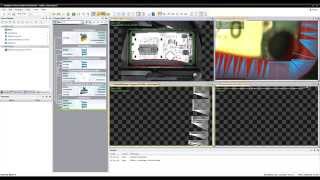

23. Adaptive Vision Studio Examples - Locate Capacitor

Adaptive Vision Studio Examples - Locate Capacitor

This video presents how you can locate a capacitor on a board using Edge-Based Template Matching technique in Adaptive Vision Studio.

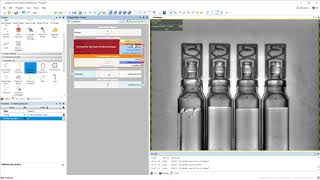

24. Adaptive Vision Studio Examples - Bottle Inspection: Count Bottles

Adaptive Vision Studio Examples - Bottle Inspection: Count Bottles

This video presents the 1st part of Bottle Inspection series in Adaptive Vision Studio. In this part you'll start from scratch by loading images and counting present bottles.

25. Adaptive Vision Studio - Bottle Inspection: Check Liquid Level

Adaptive Vision Studio Examples - Bottle Inspection: Check Liquid Level

This video presents the 2nd part of Bottle Inspection series in Adaptive Vision Studio. In this part we'll continue with the program from the previous part to find liquid levels in bottles.

26. Adaptive Vision Studio Examples - Bottle Inspection: Detect Foam

Adaptive Vision Studio Examples - Bottle Inspection: Detect Foam

This video presents the 3rd part of Bottle Inspection series in Adaptive Vision Studio. In this part we'll continue with the program from the previous part to find foam in bottles using a color analysis tool.

27. Adaptive Vision Studio Examples - Bottle Inspection: Visualize Results

Adaptive Vision Studio Examples - Bottle Inspection: Visualize Results

This video presents the 4th (final) part of Bottle Inspection series in Adaptive Vision Studio. In this part we'll use the program from the previous part and visualize results for it using the built-in HMI Designer.

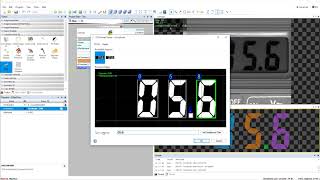

28. Adaptive Vision Studio Examples - Reading Numbers

Adaptive Vision Studio Examples - Reading Numbers

This video presents how you can read number from an image using the OCR technique in Adaptive Vision Studio.

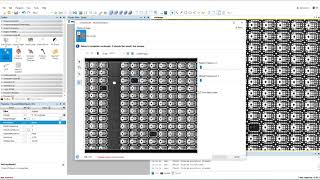

29. Adaptive Vision Studio Examples - Missing Chips

Adaptive Vision Studio Examples - Missing Chips

This video presents how you can detect missing chips using the Gray-Based Template Matching technique in Adaptive Vision Studio.
