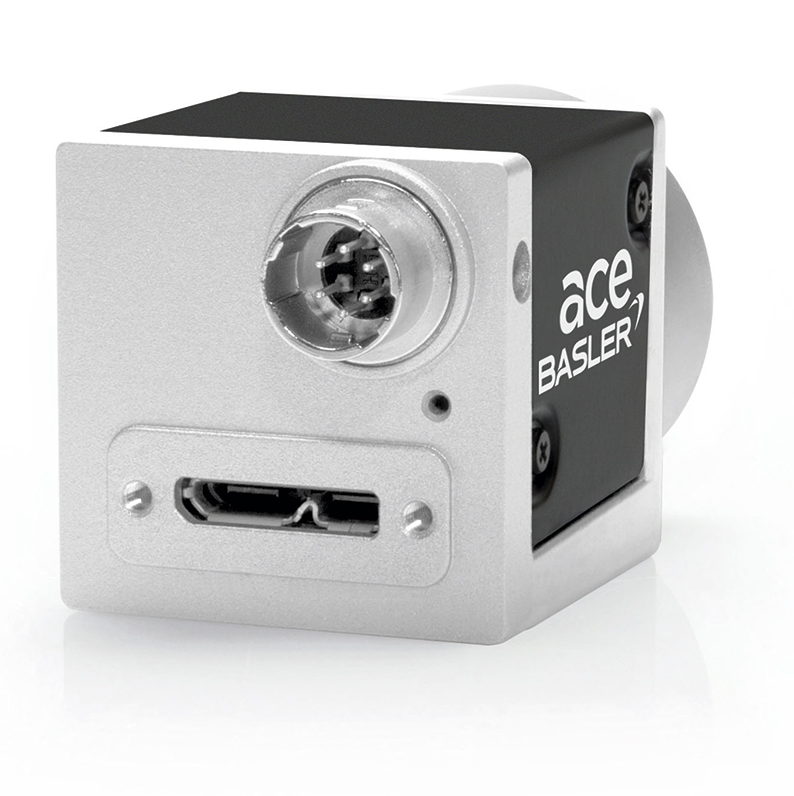

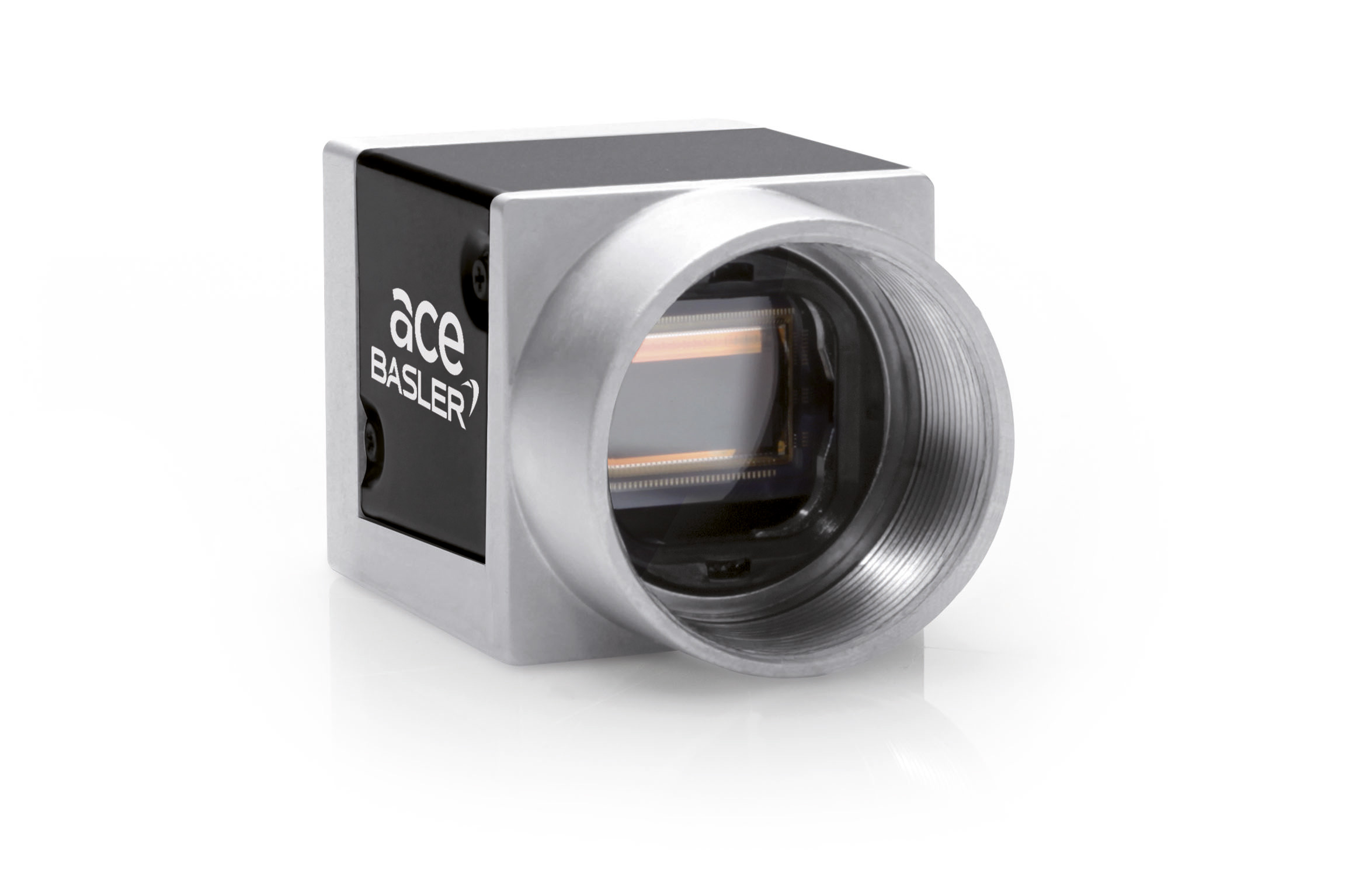

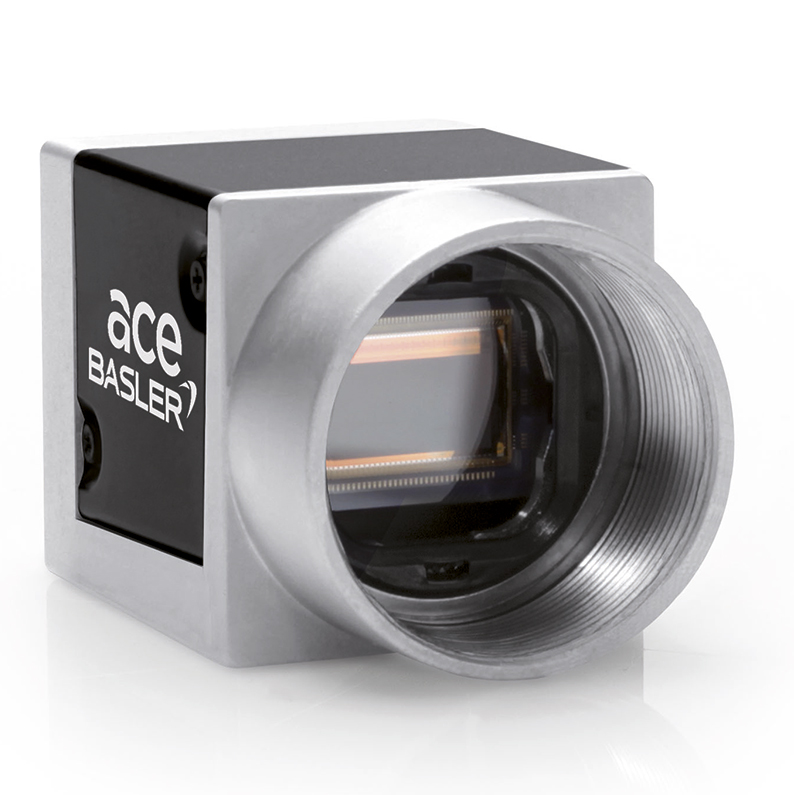

Basler acA1920-155um

acA1920-155um

  • 1/1.2" CMOS, 164 FPS

  • 1920 x 1200 Pixels, Mono

  • Global Shutter
    • Request Quote
    Resolution (H x V pixels) 1920 x 1200 Pixels
    Max. Image Circle 1/1.2"
    Sensor Type CMOS Mono
    Shutter Global Shutter
    Pixel Size horizontal/vertical 5.86 µ x 5.86 µ
    Frame Rate 164 FPS
    Interface USB 3.0
    Pixel Bit Depth 10 ou 12 bits
    Exposure Control
    • Programmable via the camera API
    • External Trigger Signal
    Synchronization
    • External Trigger
    • Software
    • Free-Run
    Housing Size (L x W x H)mm 29.3 x 29.0 x 29.0
    Housing Temperature 0 °C - 50 °C
    Lens Mount
    • C-Mount
    Digital Input 1
    Digital Output 1
    General Purpose I/O 2
    Power Requirements Via USB 3.0 interface
    Power Consumption (typical) 3.2 W
    Weight (typical) 80 g
    Sensor IMX174
    Sensor Size (mm) 11.33 mm x 7.13 mm
