Industrial USB Camera Basler Ace
 Basler Ace Classic
       Main Features
  • USB 3.0 interface with 5 Gbits/sec of bandwidth
  • Resolutions up to 14 Megapixel
  • C-Mount and CS-Mount lens support
  • Compact industrial housing - 29.3 x 29.0 x 29.0 mm
  • 2 Opto-isolated GPIO signals with trigger and strobe support
  • Drivers for Windows and Linux
  • Software support for MATLAB, LabView, Cognex VisionPro, Adaptive Vision Studio and many other 3rd party applications


Camera Model Type Resolution  Shutter Frame Rate Sensor Size  Pixel Size (μm) Sensor Model
acA640-750um Monochrome 640 x 480 Pixels  Global 751 FPS 1/4" CMOS 4.8 X 4.8 PYTHON 300
acA640-750uc Color 640 x 480 Pixels  Global 751 FPS 1/4" CMOS 4.8 X 4.8 PYTHON 300
acA640-90um Monochrome 659 x 494 Pixels  Global 90 FPS 1/3" CCD 7.4 x 7.4  Sony ICX424
acA640-90uc Color 659 x 494 Pixels  Global 90 FPS 1/3" CCD 7.4 x 7.4  Sony ICX424
acA640-120um Monochrome 659 x 494 Pixels  Global 120 FPS 1/4" CCD 5.6 x 5.6 Sony ICX618
acA640-120uc Color 659 x 494 Pixels  Global 120 FPS 1/4" CCD 5.6 x 5.6 Sony ICX618
acA720-520um Monochrome 720 x 540 Pixels  Global 520 FPS 1/2.9" CMOS 6.9 x 6.9 Sony IMX287
acA720-520uc Color 720 x 540 Pixels  Global 520 FPS 1/2.9" CMOS 6.9 x 6.9 Sony IMX287
acA800-510um Monochrome 800 x 600 Pixels  Global 511 FPS 1/3.6" CMOS 4.8 X 4.8 PYTHON 500
acA800-510uc Color 800 x 600 Pixels  Global 511 FPS 1/3.6" CMOS 4.8 X 4.8 PYTHON 500
acA1300-200um Monochrome 1280 x 1024 Pixels Global 203 FPS 1/2" CMOS 4.8 X 4.8 PYTHON 1300
acA1300-200uc Color 1280 x 1024 Pixels Global 203 FPS 1/2" CMOS 4.8 X 4.8 PYTHON 1300
acA1300-30um Monochrome 1296 x 966 Pixels  Global 30 FPS 1/3" CCD 3.75 x 3.75 Sony ICX445
acA1300-30uc Color 1296 x 966 Pixels  Global 30 FPS 1/3" CCD 3.75 x 3.75 Sony ICX445
acA1440-220um Monochrome 1440 x 1080 Pixels  Global 220 FPS 1/2.9" CMOS 3.45 x 3.45 Sony IMX273
acA1440-220uc Color 1440 x 1080 Pixels  Global 220 FPS 1/2.9" CMOS 3.45 x 3.45 Sony IMX273
acA1600-20um Monochrome 1628 x 1236 Pixels  Global 20 FPS 1/1.8" CCD 4.4 x 4.4 Sony ICX274
acA1600-20uc Color 1628 x 1236 Pixels  Global 20 FPS 1/1.8" CCD 4.4 x 4.4 Sony ICX274
acA1920-25um Monochrome 1920 x 1080 Pixels  Rolling 25 FPS 1/3.7" CMOS 2.2 X 2.2 MT9P031
acA1920-25uc Color 1920 x 1080 Pixels  Rolling 25 FPS 1/3.7" CMOS 2.2 X 2.2 MT9P031
acA1920-40um Monochrome 1920 x 1200 Pixels  Global 41 FPS 1/1.2" CMOS 5.86 X 5.86 Sony IMX249
acA1920-40uc Color 1920 x 1200 Pixels  Global 41 FPS 1/1.2" CMOS 5.86 X 5.86 Sony IMX249
acA1920-150um Monochrome 1920 x 1200 Pixels  Global 164 FPS 2/3" CMOS 4.8 X 4.8 PYTHON 2000
acA1920-150uc Color 1920 x 1200 Pixels  Global 164 FPS 2/3" CMOS 4.8 X 4.8 PYTHON 2000
acA1920-155um Monochrome 1920 x 1200 Pixels  Global 164 FPS 1/1.2" CMOS 5.86 X 5.86 Sony IMX 174
acA1920-155uc Color 1920 x 1200 Pixels  Global 164 FPS 1/1.2" CMOS 5.86 X 5.86 Sony IMX 174
acA2000-165um Monochrome 2048 x 1088 Pixels  Global 165 FPS 2/3" CMOS 5.5 x 5.5 CMOSIS CMV2000
acA2000-165uc Color 2048 x 1088 Pixels  Global 165 FPS 2/3" CMOS 5.5 x 5.5 CMOSIS CMV2000
acA2000-165umNIR Monochrome 2048 x 1088 Pixels  Global 165 FPS 2/3" CMOS 5.5 x 5.5 CMOSIS CMV2000
acA2040-55um Monochrome 2048 x 1536 Pixels  Global 55 FPS 1/1.8" CMOS 3.45 x 3.45 IMX265
acA2040-55uc Color 2048 x 1536 Pixels  Global 55 FPS 1/1.8" CMOS 3.45 x 3.45 IMX265
acA2040-120um Monochrome 2048 x 1536 Pixels  Global 120 FPS 1/1.8" CMOS 3.45 x 3.45 IMX252
acA2040-120uc Color 2048 x 1536 Pixels  Global 120FPS 1/1.8" CMOS 3.45 x 3.45 IMX252
acA2040-90um Monochrome 2048 x 2048 Pixels  Global  90 FPS 1" CMOS 5.5 x 5.5 CMOSIS CMV4000
acA2040-90uc Color 2048 x 2048 Pixels  Global  90 FPS 1" CMOS 5.5 x 5.5 CMOSIS CMV4000
acA2040-90umNIR Monochrome 2048 x 2048 Pixels  Global  90 FPS 1" CMOS 5.5 x 5.5 CMOSIS CMV4000
acA2440-35um Monochrome 2448 x 2048 Pixels  Global 35 FPS 2/3" CMOS 3.45 x 3.45 IMX264
acA2440-35uc Color 2448 x 2048 Pixels  Global 35 FPS 2/3" CMOS 3.45 x 3.45 IMX264
acA2440-75um Monochrome 2448 x 2048 Pixels  Global 75 FPS 2/3" CMOS 3.45 x 3.45 IMX250
acA2440-75uc Color 2448 x 2048 Pixels  Global 75 FPS 2/3" CMOS 3.45 x 3.45 IMX250
acA2500-14um Monochrome 2592 x 1944 Pixels  Rolling 14 FPS 1/2.5" CMOS 2.2 x 2.2 MT9P031
acA2500-14uc Color 2592 x 1944 Pixels  Rolling 14 FPS 1/2.5" CMOS 2.2 x 2.2 MT9P031
acA2500-60um Monochrome 2590 x 2048 Pixels  Global 71 FPS 1" CMOS 4.8 X 4.8 PYTHON 5000
acA2500-60uc Color 2590 x 2048 Pixels  Global 71 FPS 1" CMOS 4.8 X 4.8 PYTHON 5000
acA3088-57um Monochrome 3088 x 2064 Pixels Rolling 59 FPS 1/1.8" CMOS 2.4 x 2.4 IMX178
acA3088-57uc Color 3088 x 2064 Pixels Rolling 59 FPS 1/1.8" CMOS 2.4 x 2.4 IMX178
acA3800-14um Monochrome 3856 x 2764 Pixels  Rolling 14 FPS 1/2.3" CMOS 1.67 x 1.67 MT9J003
acA3800-14uc Color 3856 x 2764 Pixels  Rolling 14 FPS 1/2.3" CMOS 1.67 x 1.67 MT9J003
acA4024-29um Monochrome 4024 x 3036 Pixels Rolling 31 FPS 1/1.7" CMOS 1.85 x 1.85 IMX226
acA4024-29uc Color 4024 x 3036 Pixels Rolling 31 FPS 1/1.7" CMOS 1.85 x 1.85 IMX226
acA4600-10uc Color 4608 x 3288 Pixels  Rolling 10 FPS 1/2.3" CMOS 1.4 x 1.4 MT9F002

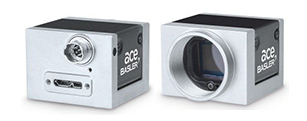

Industrial USB Camera
 Basler Ace L
       Main Features
  • USB 3.0 interface with 5 Gbits/sec of bandwidth
  • C-Mount and CS-Mount lens support
  • Compact industrial housing
  • 2 Opto-isolated GPIO signals with trigger and strobe support
  • Drivers for Windows and Linux
  • Software support for MATLAB, LabView, Cognex VisionPro, Adaptive Vision Studio and many other 3rd party applications


Camera Model Type Resolution Shutter Frame Rate Sensor Size  Pixel Size (μm) Sensor Model
acA4096-30um Mono 4096 x 2168 Pixels Global  CMOS 32 FPS 3.45 x 3.45 IMX267
acA4096-30uc Color 4096 x 2168 Pixels Global  CMOS 32 FPS 3.45 x 3.45 IMX267
acA4096-40um Mono 4096 x 2168 Pixels Global  CMOS 42 FPS 3.45 x 3.45 IMX255
acA4096-40uc Color 4096 x 2168 Pixels Global  CMOS 42 FPS 3.45 x 3.45 IMX255
acA4112-20um Mono 4096 x 3000 Pixels Global  CMOS 23 FPS 3.45 x 3.45 IMX304
acA4112-20uc Color 4096 x 3000 Pixels Global  CMOS 23 FPS 3.45 x 3.45 IMX304
acA4112-30um Mono 4096 x 3000 Pixels Global  CMOS 30 FPS 3.45 x 3.45 IMX253
acA4112-30uc Color 4096 x 3000 Pixels Global  CMOS 30 FPS 3.45 x 3.45 IMX253


Basler ace 2 Series
  Basler ace 2 Basic
     Main Features
  • Optimized hardware meets state-of-the-art CMOS sensor technology
  • Powerful Computer Vision feature set
  • Unbeatable price/performance ratio for standard vision applications
Camera Model Type Resolution Frame Rate Sensor Size Shutter Pixel Size Sensor Model
a2A1920-160umBAS Monochrome 1920 x 1200 Pixels 160 FPS 1/2.3" CMOS Global 3.45x 3.45µm Sony IMX392
a2A1920-160ucBAS Color 2448 x 2048 Pixels 160 FPS 1/1.8" CMOS Global 6.7 x 5.6µm Sony IMX547
a2A2448-75umBAS Monochrome 2448 x 2048 Pixels 75 FPS 1/1.8" CMOS Global 2.74 x 2.74µm Sony IMX547
a2A2448-75ucBAS Color 2448 x 2048 Pixels 75 FPS 1/1.8" CMOS Global 2.74 x 2.74µm Sony IMX547
a2A2590-60umBAS Monochrome 2592 x 1944 Pixels 60 FPS 1/2.8" CMOS Rolling 2 x 2µm Sony IMX334ROI
a2A2590-60ucBAS Color 2592 x 1944 Pixels 60 FPS 1/2.8" CCD Rolling 2 x 2µm Sony IMX334ROI
a2A2600-64umBAS Monochrome 2600 x 2160 Pixels 64 FPS 1/2" CMOS Global 2.5 x 2.5µm Gpixel GMAX2505
a2A2600-64ucBAS Color 2600 x 2160 Pixels 64 FPS 1/2" CMOS Global 2.5 x 2.5µm Gpixel GMAX2505
a2A2840-48umBAS Monochrome 2840 x 2840 Pixels 48 FPS 2/3" CMOS Global 2.74 x 2.74 µm Sony IMX546
a2A2840-48ucBAS Color 2840 x 2840 Pixels 48 FPS 2/3" CMOS Global 2.74 x 2.74µm Sony IMX546
a2A3840-45umBAS Monochrome 3840 x 2160 Pixels 45 FPS 1/1.8" CMOS Rolling 2 x 2µm Sony IMX334
a2A3840-45ucBAS Color 3840 x 2160 Pixels 45 FPS 1/1.8" CMOS Rolling 2 x 2µm Sony IMX334
a2A4096-30umBAS Monochrome 4096 x 3000 Pixels 30 FPS 1/1.1" CMOS Global 2.74 x 2.74µm Sony IMX545
a2A4096-30ucBAS Color 4096 x 3000 Pixels 30 FPS 1/1.1" CMOS Global 2.74 x 2.74µm Sony IMX545
a2A4200-40umBAS Monochrome 4200 x 2160 Pixels 40 FPS 2/3" CMOS Global 2.5 x 2.5µm Gpixel GMAX2509
a2A4200-40ucBAS Color 4200 x 2160 Pixels 40 FPS 2/3" CMOS Global 2.5 x 2.5µm Gpixel GMAX2509
a2A4504-18umBAS Monochrome 4504 x 4504 Pixels 18 FPS 1/1" CMOS Global 2.74 x 2.74µm Sony IMX541
a2A4504-18ucBAS Color 4504 x 4504 Pixels 18 FPS 1/1" CMOS Global 2.74 x 2.74µm Sony IMX541
a2A5320-23umBAS Monochrome 5320 x 3032 Pixels 23 FPS 1.1" CMOS Global 2.74 x 2.74µm Sony IMX542
a2A5320-23ucBAS Color 5320 x 3032 Pixels 23 FPS 1/1" CMOS Global 2.74 x 2.74µm Sony IMX542
a2A5328-15umBAS Monochrome 5328 x 4608 Pixels 15 FPS 1.2" CMOS Global 2.74 x 2.74µm Sony IMX540
a2A5328-15ucBAS Color 5328 x 4608 Pixels 15 FPS 1.2" CMOS Global 2.74 x 2.74µm Sony IMX540


Basler ace 2 Series
  Basler ace 2 Pro
     Main Features
  • Optimized hardware meets state-of-the-art CMOS sensor technology
  • Powerful Computer Vision feature set
  • Unbeatable price/performance ratio for standard vision applications
Camera Model Type Resolution Frame Rate Sensor Size Shutter Pixel Size Sensor Model
a2A1920-160ucPRO Color 1920 x 1200 Pixels 160 FPS 1/2.3" CMOS Global 3.45 x 3.45µm Sony IMX392
a2A1920-160umPRO Monochrome 1920 x 1200 Pixels 160 FPS 1/2.3" CMOS Global 6.6 x 4.1µm Sony IMX392
a2A2448-75umPRO Monochrome 2448 x 2048 Pixels 75 FPS 1/1.8" CMOS Global 2.74 x 2.74µm Sony IMX547
a2A2448-75ucPRO Color 2448 x 2048 Pixels 75 FPS 1/1.8" CMOS Global 2.74 x 2.74µm Sony IMX547
a2A2590-60umPRO Monochrome 2592 x 1944 Pixels 60 FPS 1/2.8" CMOS Rolling 2 x 2µm Sony IMX334ROI
a2A2590-60ucPRO Color 2592 x 1944 Pixels 60 FPS 1/2.8" CCD Rolling 2 x 2µm Sony IMX334ROI
a2A2600-64umPRO Monochrome 2600 x 2160 Pixels 64 FPS 1/2" CMOS Global 2.5 x 2.5µm Gpixel GMAX2505
a2A2600-64ucPRO Color 2600 x 2160 Pixels 64 FPS 1/2" CMOS Global 2.5 x 2.5µm Gpixel GMAX2505
a2A2840-48umPRO Monochrome 2840 x 2840 Pixels 48 FPS 2/3" CMOS Global 2.74 x 2.74 µm Sony IMX546
a2A2840-48ucPRO Color 2840 x 2840 Pixels 48 FPS 2/3" CMOS Global 2.74 x 2.74µm Sony IMX546
a2A3840-45umPRO Monochrome 3840 x 2160 Pixels 45 FPS 1/1.8" CMOS Rolling 2 x 2µm Sony IMX334
a2A3840-45ucPRO Color 3840 x 2160 Pixels 45 FPS 1/1.8" CMOS Rolling 2 x 2µm Sony IMX334
a2A4096-30umPRO Monochrome 4096 x 3000 Pixels 30 FPS 1/1.1" CMOS Global 2.74 x 2.74µm Sony IMX545
a2A4096-30ucPRO Color 4096 x 3000 Pixels 30 FPS 1/1.1" CMOS Global 2.74 x 2.74µm Sony IMX545
a2A4200-40umPRO Monochrome 4200 x 2160 Pixels 40 FPS 2/3" CMOS Global 2.5 x 2.5µm Gpixel GMAX2509
a2A4200-40ucPRO Color 4200 x 2160 Pixels 40 FPS 2/3" CMOS Global 2.5 x 2.5µm Gpixel GMAX2509
a2A4504-18umPRO Monochrome 4504 x 4504 Pixels 18 FPS 1/1" CMOS Global 2.74 x 2.74µm Sony IMX541
a2A4504-18ucPRO Color 4504 x 4504 Pixels 18 FPS 1/1" CMOS Global 2.74 x 2.74µm Sony IMX541
a2A5320-23umPRO Monochrome 5320 x 3032 Pixels 23 FPS 1.1" CMOS Global 2.74 x 2.74µm Sony IMX542
a2A5320-23ucPRO Color 5320 x 3032 Pixels 23 FPS 1/1" CMOS Global 2.74 x 2.74µm Sony IMX542
a2A5328-15umPRO Monochrome 5328 x 4608 Pixels 15 FPS 1.2" CMOS Global 2.74 x 2.74µm Sony IMX540
a2A5328-15ucPRO Color 5328 x 4608 Pixels 15 FPS 1.2" CMOS Global 2.74 x 2.74µm Sony IMX540


       Industrial USB Camera Basler Dart
  Basler Dart
      Main Features
  • USB 3.0 interface with 5 Gbits/sec of bandwidth
  •  Resolutions up to 5 Megapixel
  • C-Mount and CS-Mount lens support
  • Drivers for Windows and Linux
  • Software support for MATLAB, LabView, Cognex VisionPro, Adaptive Vision Studio and many other 3rd party applications
Modelo Tipo Resolu��o  Shutter Frame Rate Sensor Size Pixel (μm) Sensor Model
daA1280-54um
 		Monochrome 1280 x 960 Pixels
 		Global 54 FPS
 		1/3" CMOS 3.75 X 3.75 AR0134
daA1280-54uc Color 1280 x 960 Pixels
 		Global
 		54 FPS
 		1/3" CMOS
 		3.75 X 3.75 AR0134
daA1600-60um Monochrome 1600 x 1200 Pixels Global 60 FPS 1/1.8" CMOS 4.5 X 4.5 EV76C570
daA1600-60uc Color 1600 x 1200 Pixels Global 60 FPS 1/1.8" CMOS 4.5 X 4.5 EV76C570
daA1920-15um
 		Monochrome 1920 x 1080 Pixels
 		Rolling
 		15 FPS
 		1/3.7" CMOS
 		2.2 X 2.2
 		MT9P031
daA1920-30uc
 		Color 1920 x 1080 Pixels Rolling 30 FPS
 		1/3.7" CMOS 2.2 X 2.2 MT9P031
daA1920-30um
 		Monochrome 1920 x 1080 Pixels Rolling 30 FPS
 		1/2.5" CMOS 2.2 X 2.2 MT9P031
daA2500-14uc
 Color 2592 x 1944 Pixels Rolling
 14 FPS
 1/2.5" CMOS 2.2 X 2.2 MT9P031
daA2500-14um
 		Monochrome 2592 x 1944 Pixels Rolling 14 FPS
 		1/2.5" CMOS 2.2 X 2.2 MT9P031


         Industrial USB Camera Basler Pulse
  Basler  Pulse
      Main Features
  • USB 3.0 interface with 5 Gbits/sec of bandwidth
  •  Resolutions up to 5 Megapixel
  • C-Mount and CS-Mount lens support
  • Drivers for Windows and Linux
  • Software support for MATLAB, LabView, Cognex VisionPro, Adaptive Vision Studio and many other 3rd party applications
Modelo Tipo Resolu��o  Shutter Frame Rate Sensor Size Pixel (μm) Sensor Model
puA1280-54um
 		Monochrome 1280 x 960 Pixels
 		Global 54 FPS
 		1/3" CMOS 3.75 X 3.75 AR0134
puA1280-54uc Color 1280 x 960 Pixels
 		Global 54 FPS 1/3" CMOS 3.75 X 3.75 AR0134
puA1600-60um Monochrome 1600 x 1200 Pixels Global 60 FPS 1/1.8" CMOS 4.5 X 4.5 EV76C570
puA1600-60uc Color 1600 x 1200 Pixels Global 60 FPS 1/1.8" CMOS 4.5 X 4.5 EV76C570
puA1920-30um Monochrome 1920 x 1080 Pixels Rolling 30 FPS
 		1/3.7" CMOS 2.2 X 2.2 MT9P031
puA1920-30uc Color 1920 x 1080 Pixels Rolling 30 FPS
 		1/3.7" CMOS 2.2 X 2.2 MT9P031
puA2500-14um Monochrome 2592 x 1944 Pixels Rolling
 14 FPS
 1/2.5" CMOS 2.2 X 2.2 MT9P031
puA2500-14uc Color 2592 x 1944 Pixels Rolling 14 FPS
 		1/2.5" CMOS 2.2 X 2.2 MT9P031


 Cameras  - AVT | Basler  | IDS | uEye | Imaging Source | JAI | Prosilica | Pulnix
Lighting - Advanced Illumination |  Axton Technologies | Metaphase
Framegrabbers - Epix
Lenses - Fujinon | Tamron
Filters - Midwest Optical
