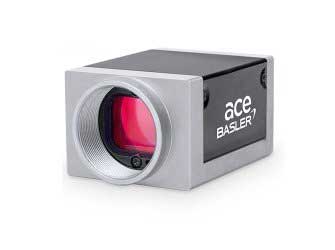

Basler acA4112-8gm

acA4112-8gm

  • 1.1" CMOS, 8 FPS

  • 4096 x 3000 Pixels, Mono

  • Global Shutter
    • Request Quote
    Resolution (H x V pixels) 4096 x 3000 Pixels
    Max. Image Circle 1.1"
    Sensor Type CMOS Mono
    Shutter Global Shutter
    Pixel Size horizontal/vertical 3.45 µ x 3.45 µ
    Frame Rate 8 FPS
    Interface GigE
    Pixel Bit Depth 12 bits
    Exposure Control
    • Programmable via the camera API
    Synchronization
    • External Trigger
    • Ethernet Connection
    • Free-Run
    Housing Size (L x W x H)mm 50 x 40 x 30
    Housing Temperature 0 °C - 50 °C
    Lens Mount
    • C-Mount
    Digital Input 1
    Digital Output 1
    Power Requirements PoE or 12-24 VDC
    Power Consumption (typical) 2.8 W
    Power Consumption PoE 3.2 W
    Weight (typical) 90 g
    Sensor IMX304
    Sensor Size (mm) 14.1 mm x 10.3 mm
