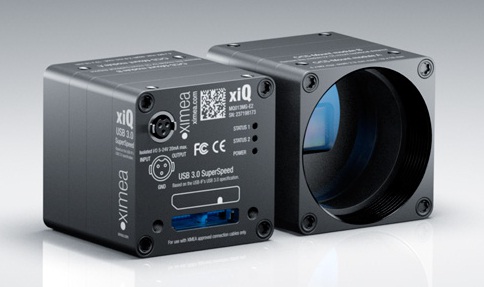

Ximea xiQ
                    Ximea xiQ

      Main Features

  • USB 3.0 interface with 5 Gbits/sec of bandwidth
  • Ultra small industrial housing - 26.4 x 26.4 x 21.2 mm
  • C-Mount and CS-Mount lens support - configurable by user
  • Frame rates up to 600 FPS ( VGA ) and resolutions up to 4 Megapixel @ 90 FPS
  • Trigger, Strobe and GPIO support
  • Built-in sensor for internal temperature monitoring
  • Software support for MATLAB, LabView, Cognex VisionPro, Matrox MIL and many other 3rd party applications
  • Drivers for Windows, Linux and MAC OS X
          Datasheet
Camera Model TypeResolution  Shutter Frame Rate Sensor Size  Pixel Size (μm) Sensor Model
MQ003MG-CM Monochrome648 x 488 Pixels  Global 500 FPS 1/3" CMOS 7,4CMV300
MQ003CG-CMColor648 x 488 Pixels Global500 FPS1/3" CMOS7,4
CMV300
MQ013MG-E2Monochrome1280 x 1024 PixelsGlobal60 FPS1/1.8" CMOS5,3EV76C560
MQ013RG-E2Mono NIR1280 x 1024 PixelsGlobal60 FPS1/1.8" CMOS5,3EV76C661
MQ013CG-E2Color1280 x 1024 PixelsGlobal60 FPS1/1.8" CMOS5,3EV76C560
MQ013MG-ONMonochrome1280 x 1024 PixelsGlobal150 FPS1/2" CMOS4,8VITA1300
MQ013CG-ONColor1280 x 1024 PixelsGlobal150 FPS1/2" CMOS4,8VITA1300
MQ020MG-E2Monochrome1600 x 1200 PixelsGlobal60 FPS1/1.8" CMOS4,8EV76C570
MQ020CG-E2Color1600 x 1200 PixelsGlobal60 FPS1/1.8" CMOS4,8EV76C570
MQ022MG-CMMonochrome2048 x 1088 PixelsGlobal180 FPS2/3" CMOS4,8CMV2000
MQ022RG-CMMono NIR2048 x 1088 PixelsGlobal170 FPS2/3" CMOS5,5CMV2000
MQ022CG-CMColor2048 x 1088 PixelsGlobal180 FPS2/3" CMOS4,8CMV2000
MQ042RG-CMMono NIR2048 x 2048 PixelsGlobal90 FPS1" CMOS5,5CMV4000
MQ042MG-CMMonochrome2048 x 2048 PixelsGlobal90 FPS1" CMOS5,5CMV4000
MQ042CG-CMColor2048 x 2048 PixelsGlobal90 FPS1" CMOS5,5CMV4000
