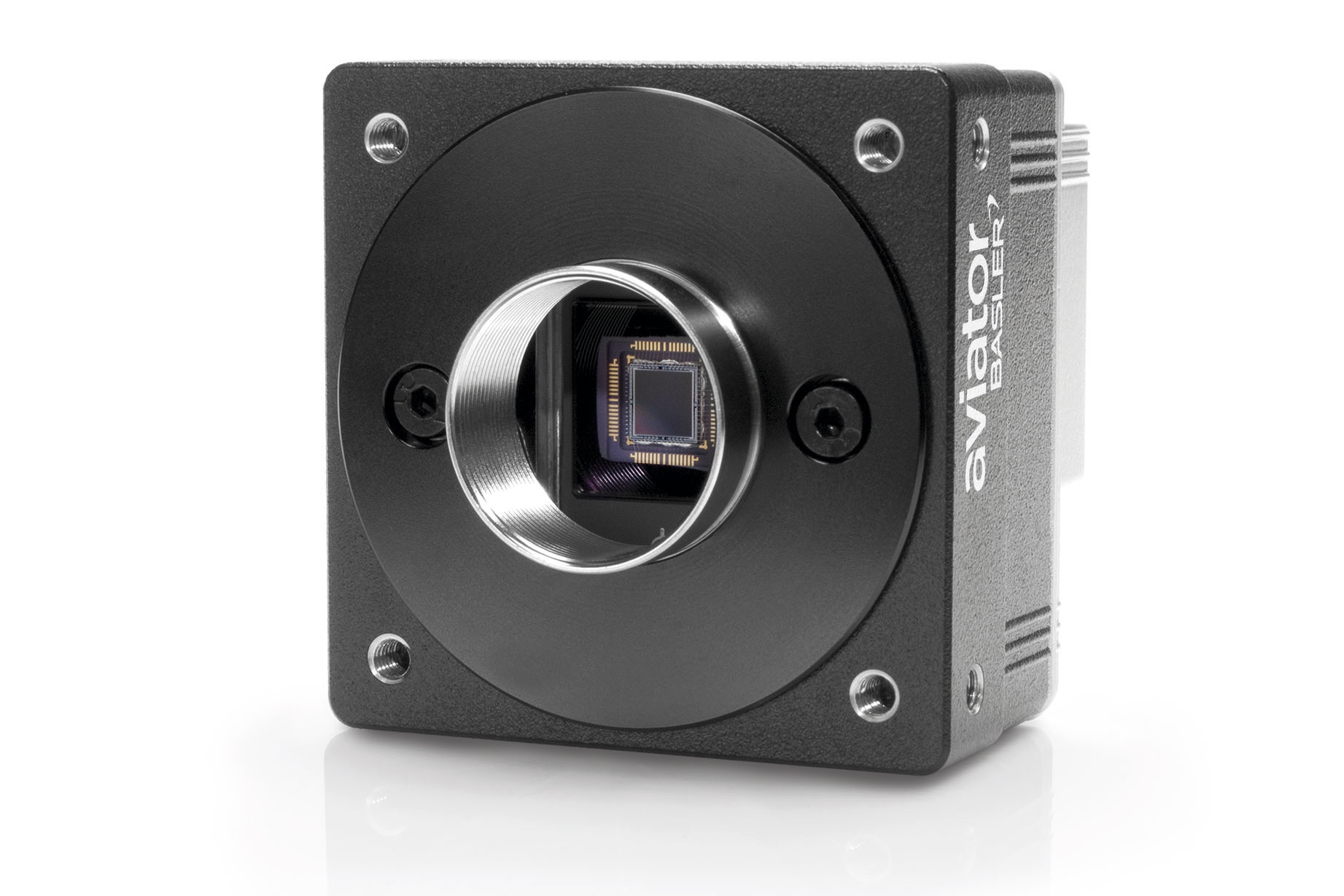

avA1900-50gc

  • 2/3" CCD, 51 FPS

  • 1920 x 1080 Pixels, Color

  • Global Shutter
  • Resolution (H x V pixels) 1920 x 1080 Pixels
    Sensor Type 2/3"
    Shutter CCD Color
    Max. Image Circle Global Shutter
    Pixel Size horizontal/vertical 5.5 µ x 5.5 µ
    Frame Rate 51 FPS
    Interface GigE
    Pixel Bit Depth 12 bits
    Exposure Control
    • Programmable via the camera API
    • External Trigger Signal
    Synchronization
    • External Trigger
    • Ethernet Connection
    • Free-Run
    Housing Size (L x W x H)mm 40.7 x 62.0 x 62.0
    Housing Temperature 0 °C - 50 °C
    Lens Mount
    • C-Mount
    Digital Input 2
    Digital Output 4
    Power Requirements 12 VDC
    Power Consumption (typical) 5.5 W
    Weight (typical) 300 g
    Sensor KAI-2150
    Sensor Size (mm) 10.56 mm x 5.94 mm
