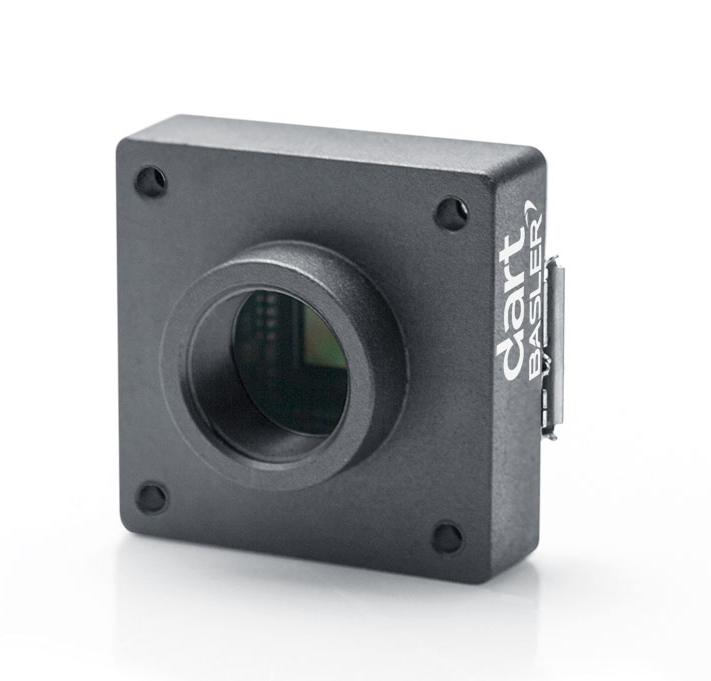

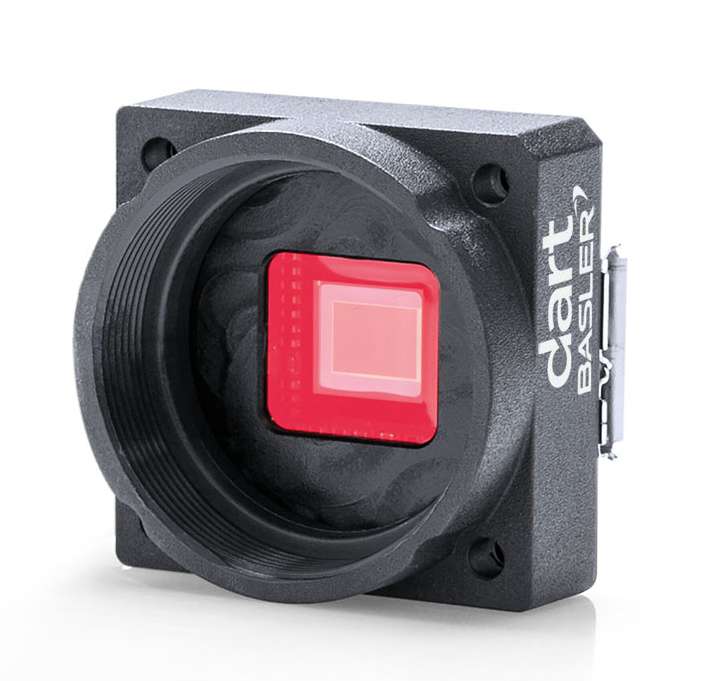

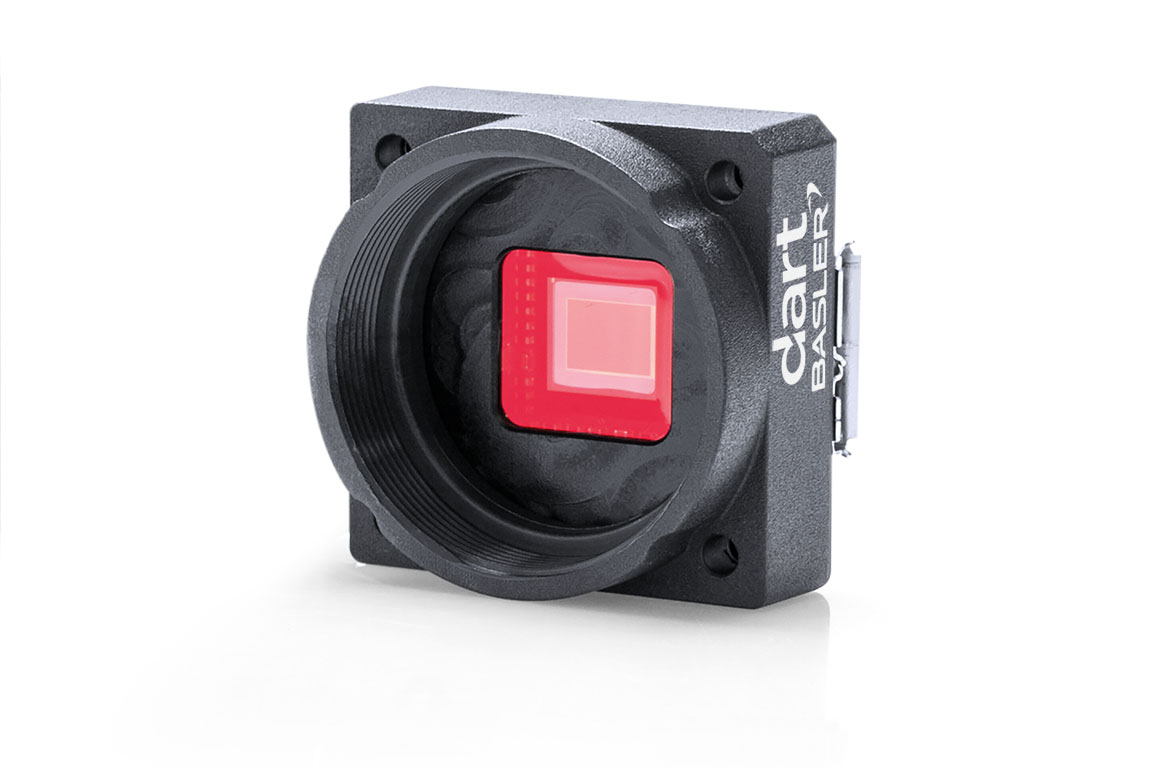

daA1280-54uc
1/3" CMOS, 54 FPS
1280 x 960 Pixels, Color
Global Shutter
Request Quote
Specifications

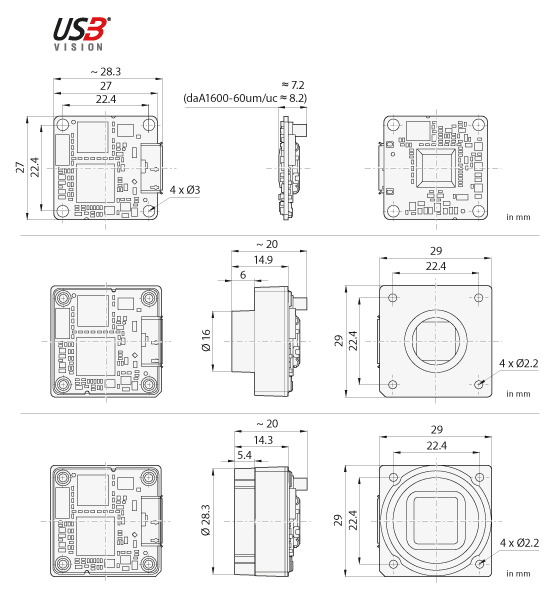

Dimensions
Documents
Resolution (H x V pixels)
1280 x 960 Pixels
Max. Image Circle
1/3"
Sensor Type
CMOS Color
Shutter
Global Shutter
Pixel Size horizontal/vertical
3.75 µ x 3.75 µ
Frame Rate
54 FPS
Interface
USB 3.0
Pixel Bit Depth
8 ou 12 bits
Exposure Control
Programmable via the camera API
Synchronization
External Trigger
Free-Run
Housing

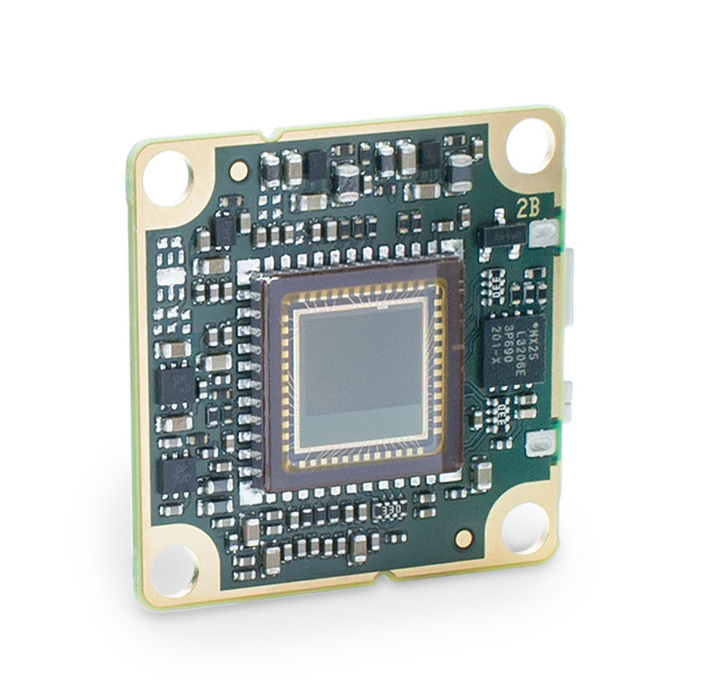

Board Level
Housing Temperature
0 °C - 50 °C
Lens Mount
CS-Mount
S-Mount
Without-Mount
General Purpose I/O
2
Power Requirements
Via USB 3.0 interface
Power Consumption (typical)
1.3 W
Weight (typical)
15 g
Sensor
AR0134
Sensor Size (mm)
4.80 mm x 3.60 mm
Ace USB Data Sheet
Ace USB Users Manual
Sensor
