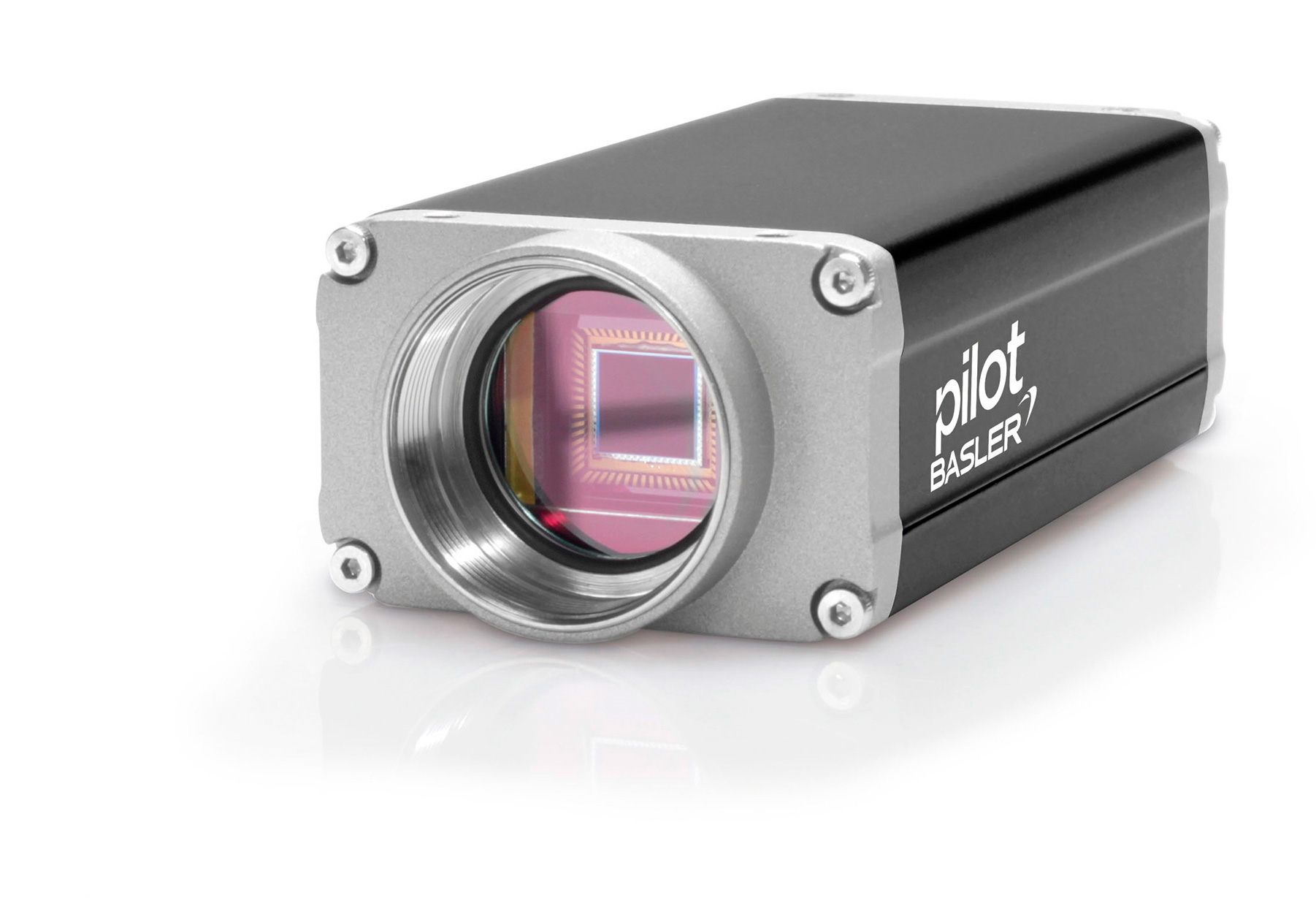

piA640-210gm
1/3" CCD, 210 FPS
648 x 488 Pixels, Mono
Global Shutter
Request Quote
Specifications
Dimensions
Documents
Resolution (H x V pixels)
648 x 488 Pixels
Max. Image Circle
1/3"
Sensor Type
CCD Mono
Shutter
Global Shutter
Pixel Size horizontal/vertical
7.4 µ x 7.4 µ
Frame Rate
210 FPS
Interface
GigE
Pixel Bit Depth
12 bits
Exposure Control
Programmable via the camera API
Synchronization
External Trigger
Software
Free-Run
Housing Size (L x W x H)mm
86.7 x 44.0 x 29.0
Housing Temperature
0 °C - 50 °C
Lens Mount
C-Mount
Digital Input
2
Digital Output
4
Power Requirements
12-24 VDC
Power Consumption (typical)
4.5 W
Weight (typical)
220 g
Sensor
KAI-0340
Sensor Size (mm)
4.80 mm x 3.61 mm
Pilot Data Sheet
Pilot GigE Users Manual
Sensor
