puA2500-14um
1/2.5" CMOS, 14 FPS
2592 x 1944 Pixels, Mono
Rolling Shutter
Request Quote
Specifications

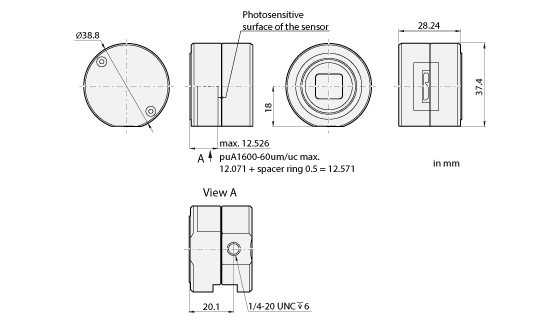

Dimensions
Documents
Resolution (H x V pixels)
2592 x 1944 Pixels
Max. Image Circle
1/2.5'
Sensor Type
CMOS Mono
Shutter
Rolling Shutter
Pixel Size horizontal/vertical
2.2 µ x 2.2 µ
Frame Rate
14 FPS
Interface
USB 3.0
Pixel Bit Depth
8 ou 12 bits
Exposure Control
Programmable via the camera API
Synchronization
Free-Run
Housing Size (Ø x L) mm
38.8 x 28.2
Housing Temperature
0 °C - 50 °C
Lens Mount
CS-Mount
Power Requirements
Via USB 3.0 interface
Power Consumption (typical)
1.3 W
Weight (typical)
60 g
Sensor
MT9P031
Sensor Size (mm)
5.70 mm x 4.28 mm
ace USB Data Sheet
ace USB Users Manual
Sensor
