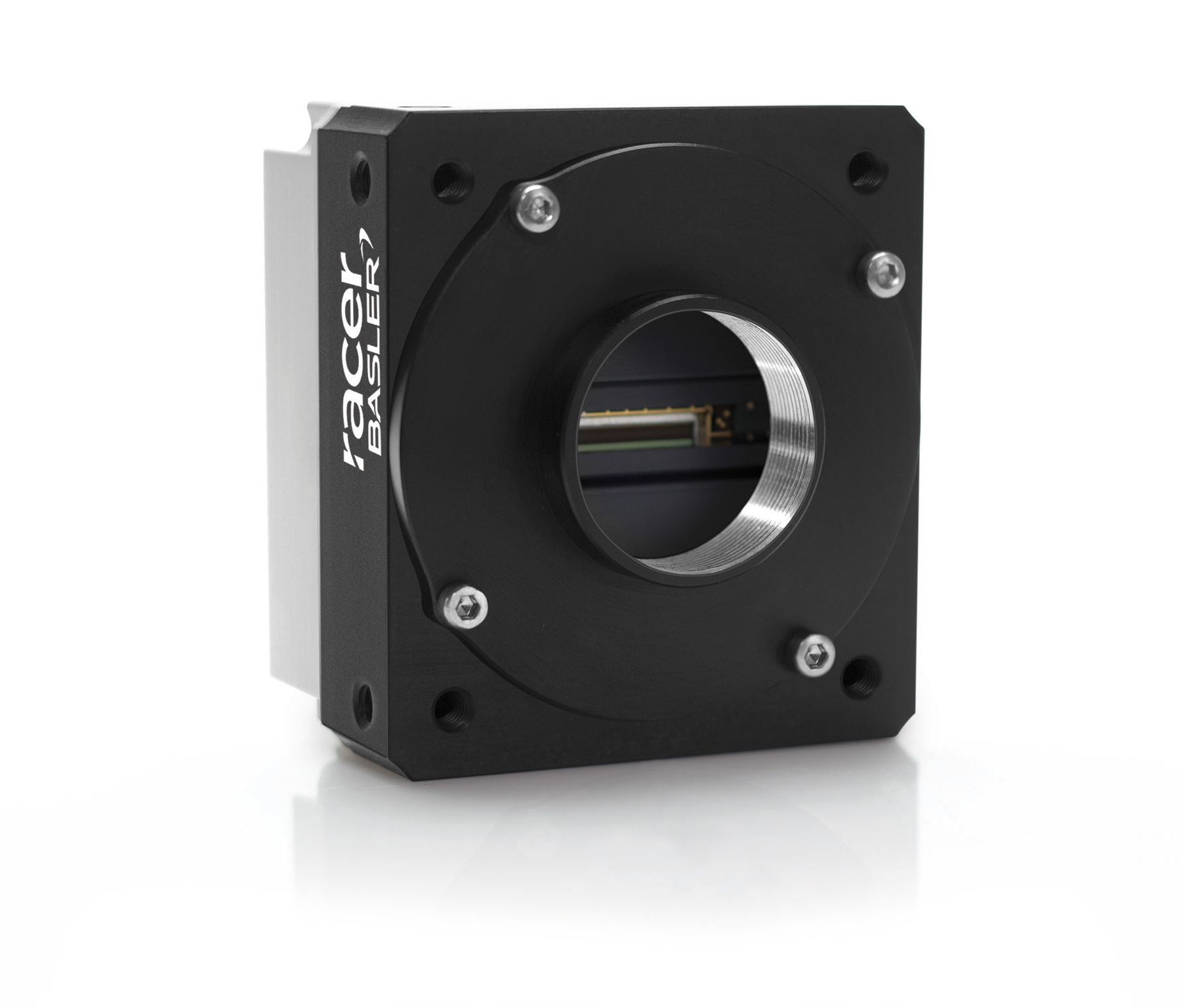

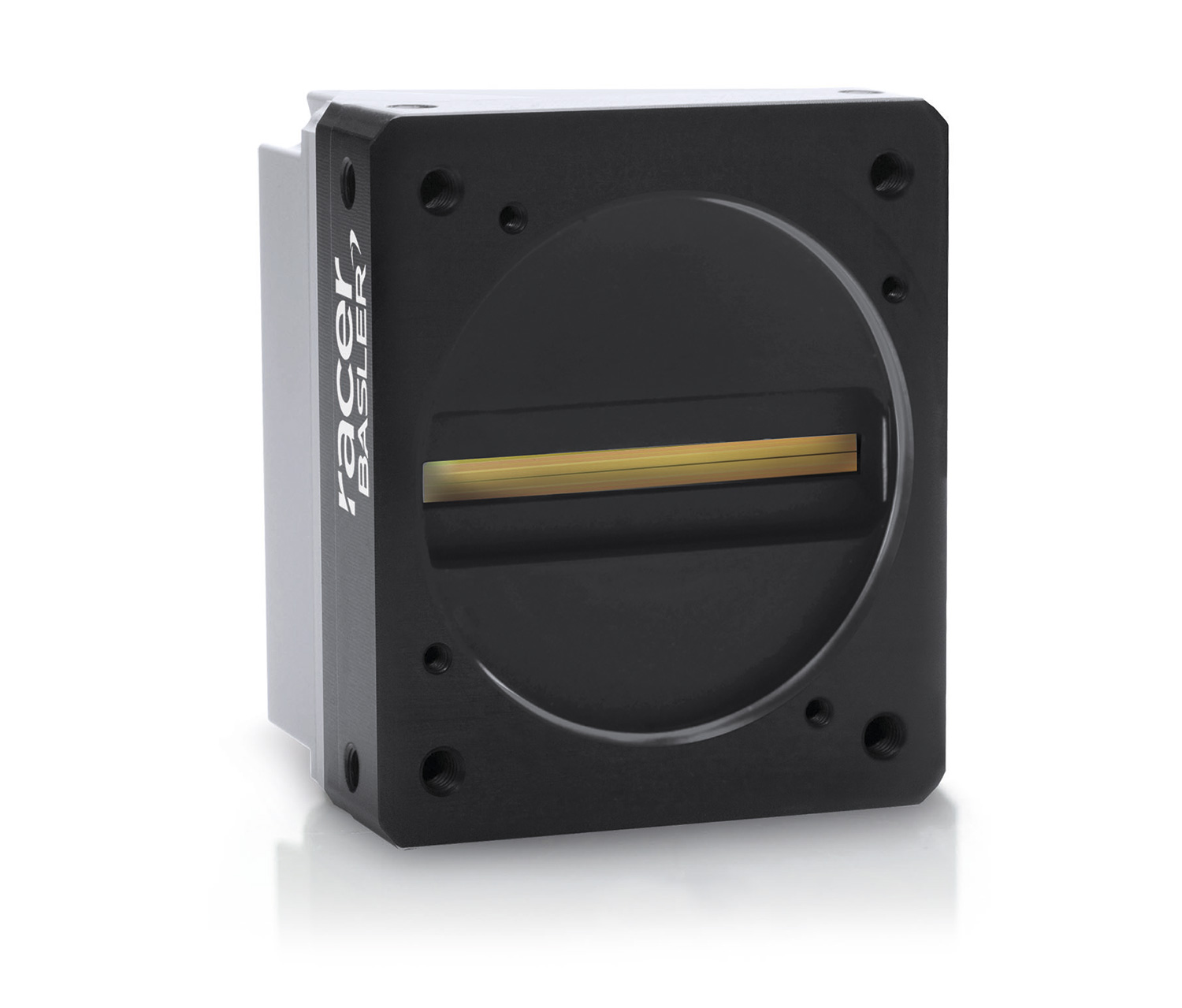

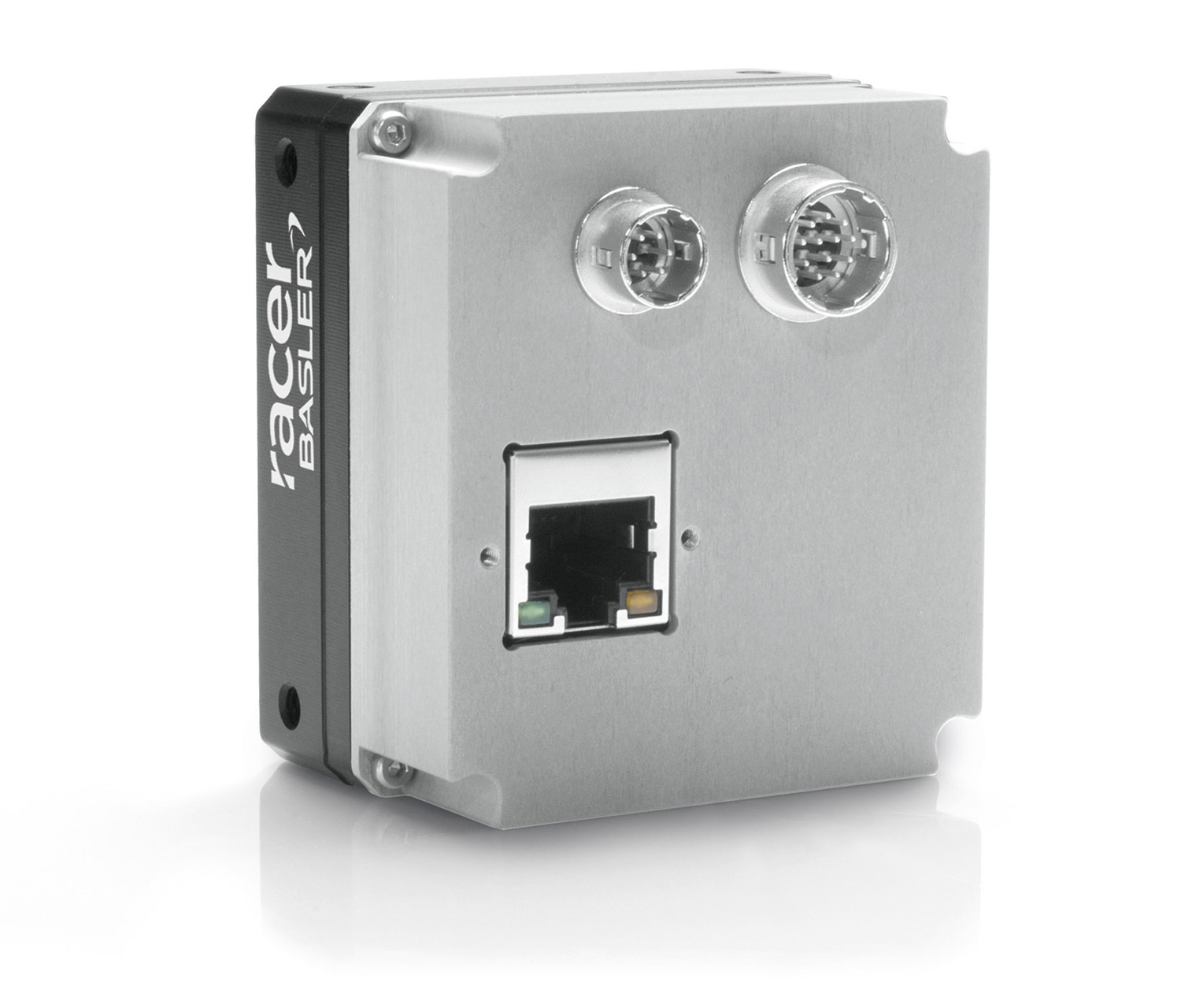

raL4096-80km

  • CMOS, 80 kHz

  • 4096 x 1 Pixels, Mono

  • Global Shutter
  • Resolution (H x V pixels) 4096 x 1 Pixels
    Sensor Type CMOS Mono
    Shutter Global Shutter
    Pixel Size horizontal/vertical 7.0 µm x 7.0 µm
    Line Rate 80 kHz
    Interface GigE
    Pixel Bit Depth 8/10/12 bits
    Exposure Control
    • Trigger Width or Timed
    Synchronization
    • External Trigger
    • Software
    • Free-Run

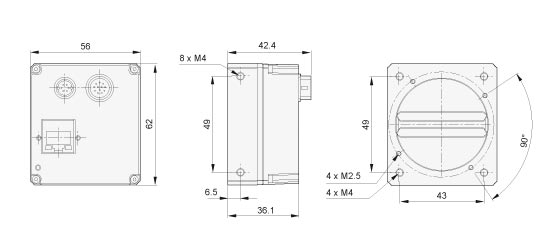

    Housing Size (L x W x H)mm 34 mm x 56 mm x 62 mm
    Housing Temperature 0 - 50 °C
    Lens Mount
    • C-Mount
    • F-Mount
    • M42 x 1-Mount
    • M42 x 0.75-Mount
    • M58 x 0.75-Mount
    Digital Input 3 via CL (max. 4 I/O's total)
    Digital Output 2 via CL (max. 4 I/O's total)
    Power Requirements PoCL or 12-24 VDC
    Power Consumption (typical) 4 W
    Weight (typical) 210 g
    Sensor DR-4k-7
