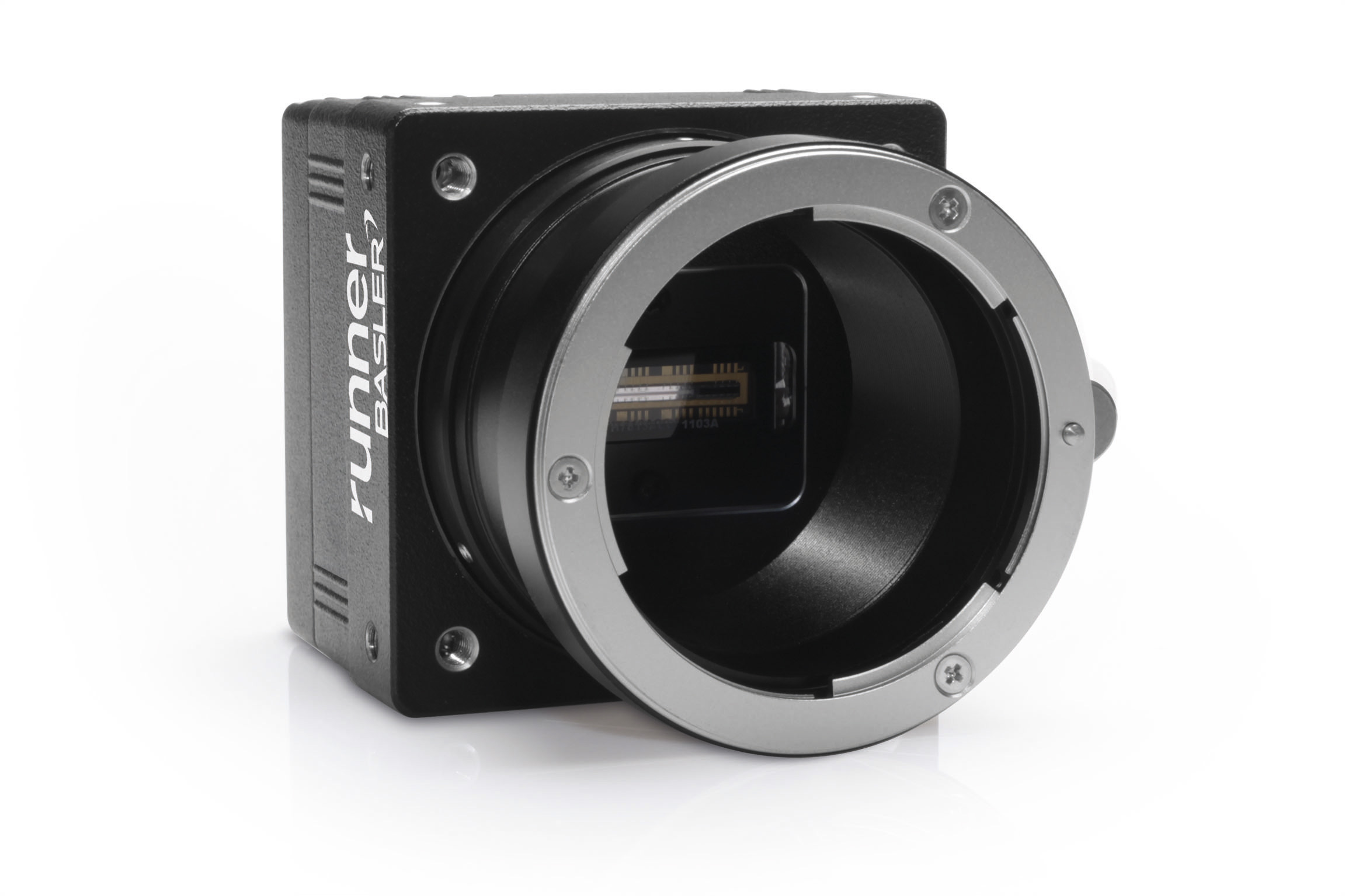

ruL2098-10gc

  • CCD, 9.20 KHz

  • 2098 x 3 Pixels, Color

  • Global Shutter
  • Resolution (H x V pixels) 2098 x 3 Pixels
    Sensor Type CCD Color
    Shutter Global Shutter
    Pixel Size horizontal/vertical 14.0 µ x 14.0 µ
    Line Rate 9.20 KHz
    Interface GigE
    Pixel Bit Depth 8/12 bits
    Exposure Control
    • Programmable via the camera API
    Synchronization
    • External Trigger
    • Software
    • Free-Run
    Housing Size (L x W x H) in mm 48.2 x 62.0 x 62.0
    Housing Temperature 0 °C - 50 °C
    Lens Mount
    • F-Mount
    Digital Input 3
    Digital Output 2
    Power Requirements 12 VDC
    Power Consumption (typical) 5.1 W
    Weight (typical) 235 g
    Sensor KLI-2113
