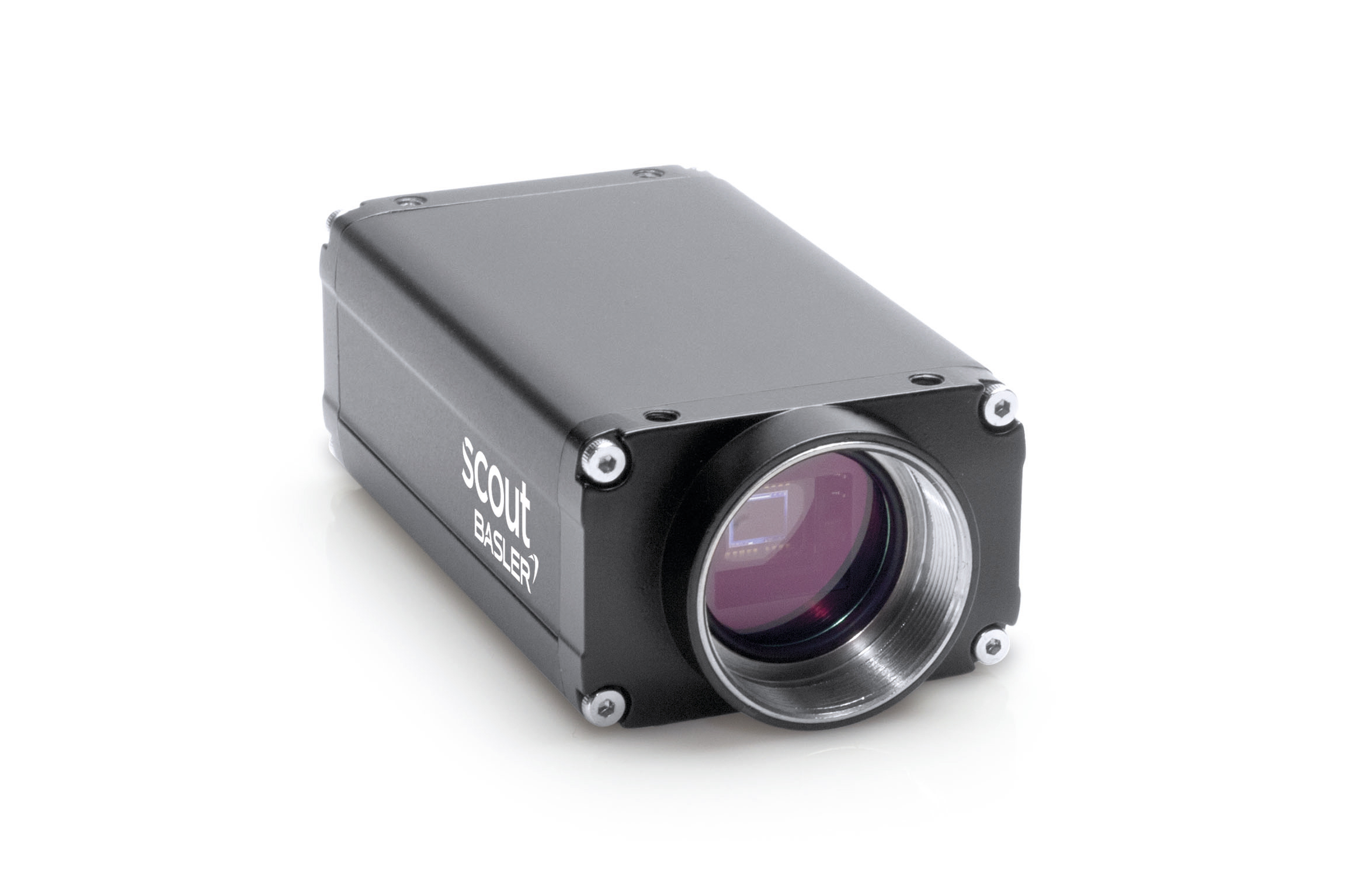

scA780-54gm

Resolution (H x V pixels)	782 x 582 Pixels
Max. Image Circle	1/2"
Sensor Type	CCD Mono
Shutter	Global Shutter
Pixel Size horizontal/vertical	8.3 µ x 8.3 µ
Frame Rate	55 FPS
Interface	GigE
Pixel Bit Depth	12 bits
Exposure Control	Programmable via the camera API
Synchronization	External Trigger Software
Housing Size (L x W x H)mm	73.7 x 44.0 x 29.0
Housing Temperature	0 °C - 50 °C
Lens Mount	C-Mount
Digital Input	2
Digital Output	4
Power Requirements	12-24 VDC
Power Consumption (typical)	3.0 W
Weight (typical)	160 g
Sensor	ICX415
Sensor Size (mm)	6.49 mm x 4.83 mm
