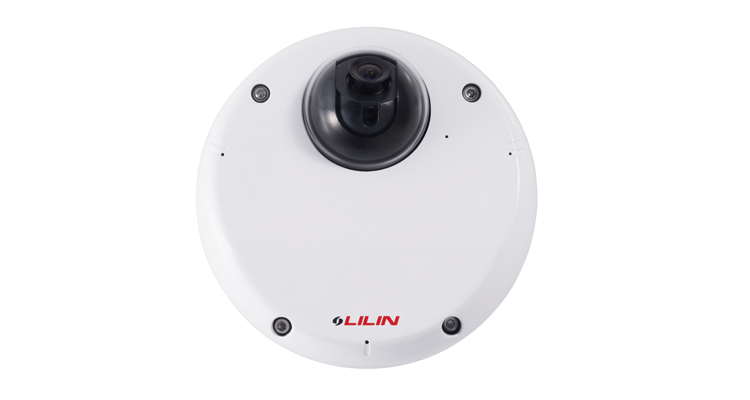

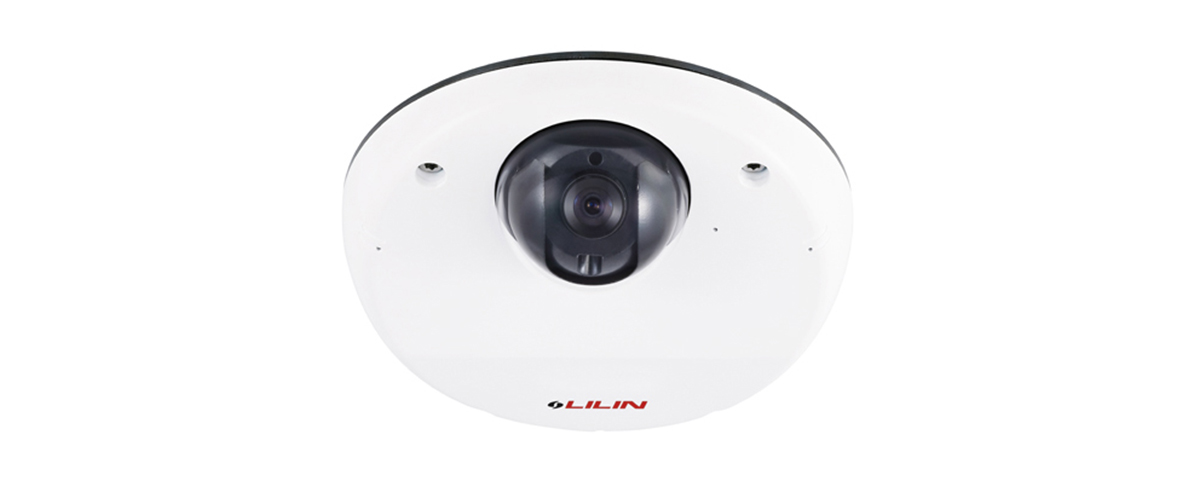

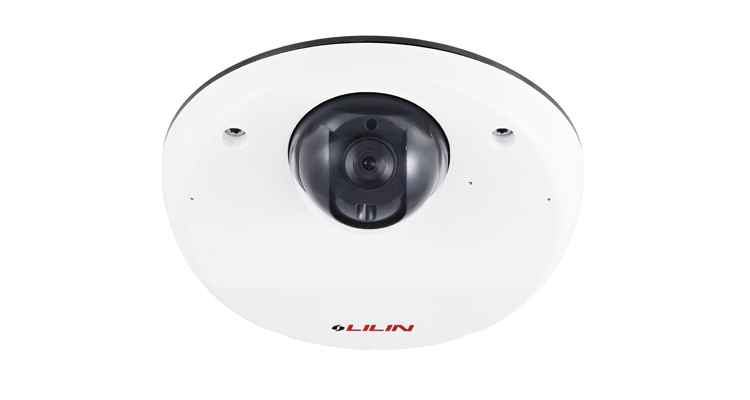

IPD6220 / IPD6222

  • 1/2.7" CMOS

  • 1920 x 1080 Pixels

  • Full HD
  • Resolution (H x V pixels) 1920 x 1080 Pixels
    Image Sensor 1/2.7" CMOS
    Scanning System Progressive Scan
    Shutter Time 1/30s - 1/8.000s
    Lens 2.8mm
    Angle of View
    • 114°(H)
    • 64°(V)
    • 134°(D)
    Video Compression H.264, Motion JPEG
    Frame Rate
    • H.264 : up to 30 FPS @ 1920 x 1080
    • MJPEG : up to 15 FPS @ 1920 x 1080
    Video Streaming RTP/HTTP, RTP/TCP, RTP/UDP, Multicast
    Video Bitrate 128Kbps – 8Mbps
    Sense Up Off / 1 Frame / 2 Frames / 3 Frames / 7 Frames
    Sense Up+ Yes
    3D Noise Reduction Off / 1 – 32 Selectable
    2D WDR Off / Auto / x2 / x3 / x4
    Privacy Masking Off / On (4 independent areas)
    ePTZ & Digital Zoom Yes, ROI is supported
    Alarm Function
    • Face / Tampering / Audio / Motion Detection
    • Image upload over FTP and E-mail by face / Tampering / Audio / Motion Detection
    Network Interface 10Mbps / 100Mbps Base-T, RJ-45
    Audio 1-way Audio, G.711 / PCM
    SD Card Support Micro SD/SDHC card
    IP Rating IP67
    IK Rating IK8
    Dimensions Ø115 x 40mm
    Weight 310g
    Power Supply PoE-5W
