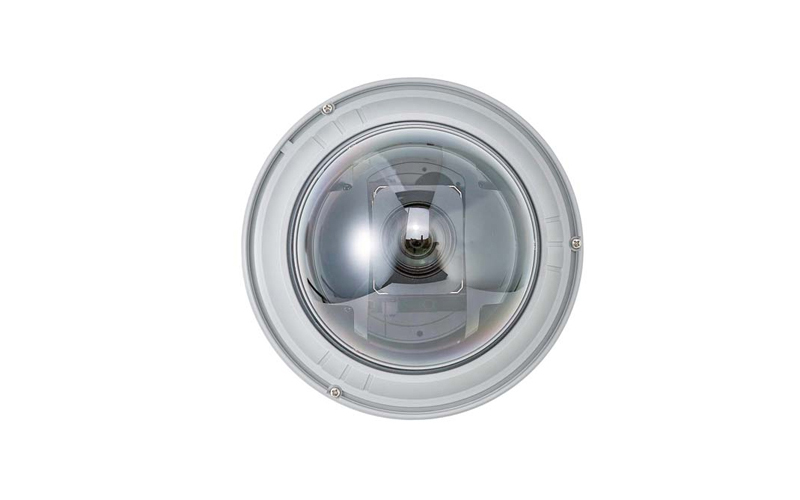

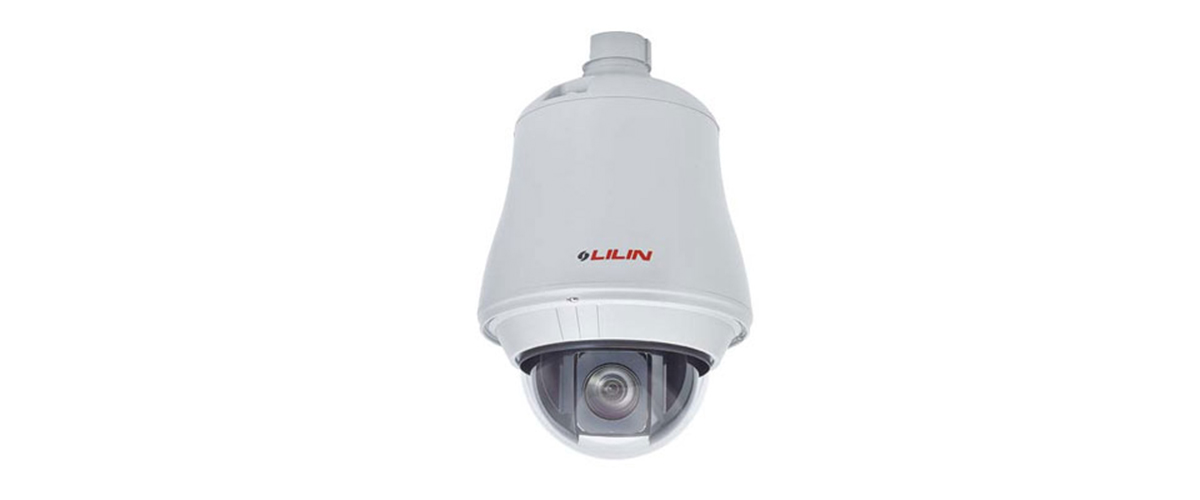

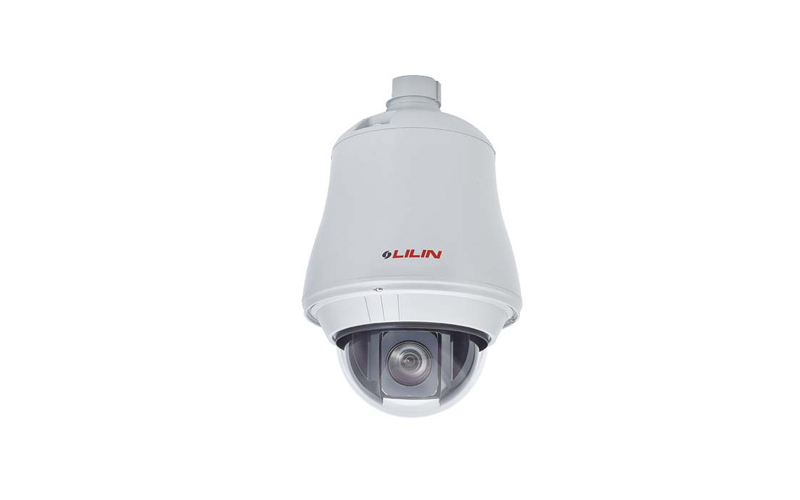

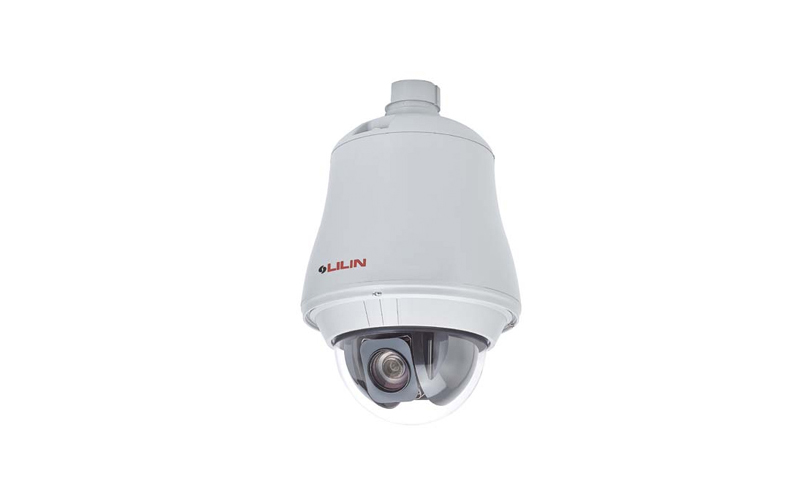

IPS8364 / IPS8368

  • 1/4" Sony

  • 960H - 960 x 480 Pixels

  • 36X Optical Zoom
  • Resolution (H x V pixels) 960 x 480 Pixels
    Image Sensor 1/4" Sony
    Scanning System Progressive Scan
    IR cut filter Colour (Day), Monochrome (Night), Auto, Schedule
    Shutter Time 1/60 - 1/100.000
    Zoom Ratio 36X Optical Zoom
    Lens/Focal length 3.3-119mm
    Angle of View
    • 60.15° - 1.20°(H)
    • 46.3° - 1.47°(V)
    • 72.51° - 2.13°(D)
    Video Compression H.264, Motion JPEG
    Frame Rate
    • H.264 : up to 30 FPS at 960H resolution
    • MJPEG : up to 30 FPS at D1 resolution
    Video Streaming RTP/HTTP, RTP/TCP, RTP/UDP, Multicast
    Video Bitrate 128Kbps – 5Mbps
    Auto Gain Control Off /Low / Middle / High
    3D Noise Reduction Off /Low / Middle / High
    2D WDR Off / On (60 dB)
    Privacy Masking Off / On (8 independent areas)
    ePTZ & Digital Zoom 256X
    Alarm Function
    • Image upload over FTP and E-mail by alarm / Motion Detection
    Network Interface 10Mbps / 100Mbps Base-T, RJ-45
    Audio 2-way Audio, G.711 / PCM
    SD Card/ SD card recording Support Micro SD/SDHC card
    IP Rating IP66
    IK Rating IK10
    Dimensions Ø210 x 332mm
    Weight 3200g
    Power Supply AC24V-25W
