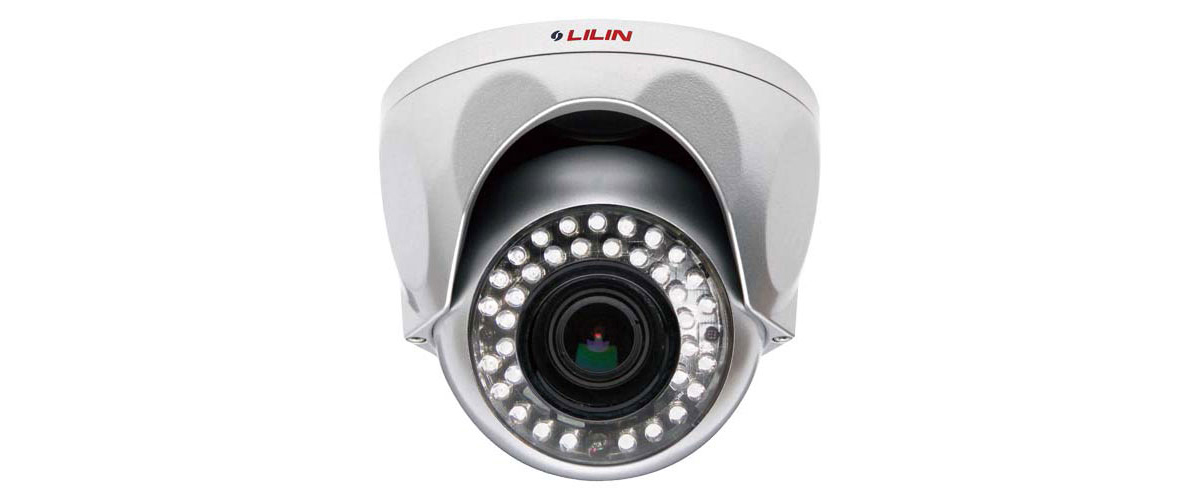

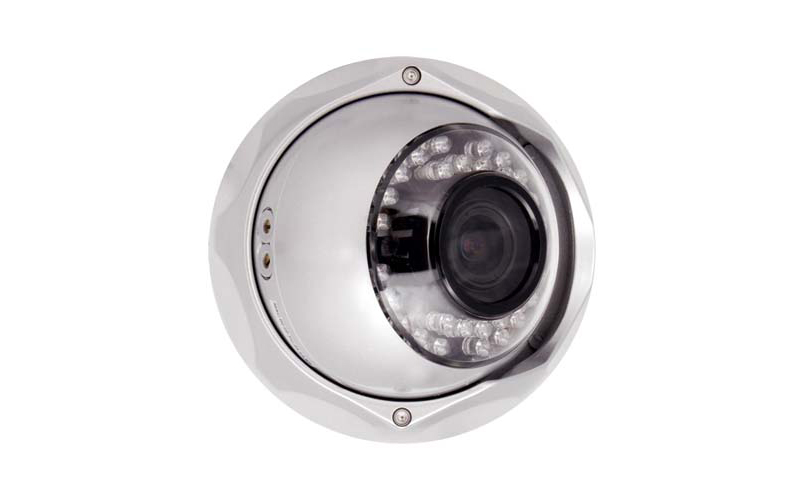

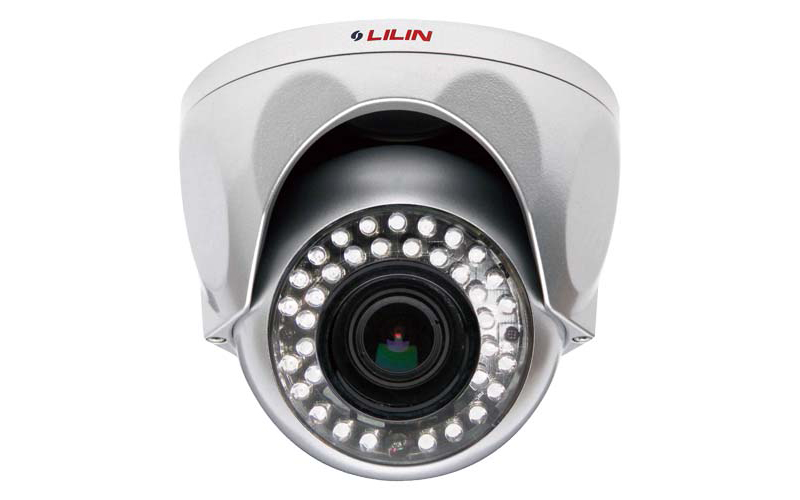

LR6022

  • 1/2.7" CMOS

  • 1920 x 1080 Pixels

  • Full HD
  • Resolution (H x V) 1920 x 1080 Pixels
    Image Sensor 1/2.7" CMOS
    Scanning System Progressive Scan
    IR cut filter Colour (Day), Monochrome (Night), Auto, Schedule
    Shutter Time 1/30(1/25)s - 1/8.000s
    Lens 2.8-12mm
    Angle of View
    • 91.2° – 25.5°(H)
    • 59.4° – 22.4°(V)
    • 99° – 37.3°(D)
    IR Radiant Distance 25M
    Infrared LED Angle 30°
    Peak wavelength 850nm, High efficiency array
    Video Compression H.264, Motion JPEG
    Frame Rate
    • H.264 : up to 15 FPS @ 1920 x 1080
    • Motion JPEG : up to 15 FPS @ 1920 x 1080
    Video Streaming RTP/HTTP, RTP/TCP, RTP/UDP, Multicast
    Video Bitrate 128Kbps – 5Mbps
    Sense Up Off / 1 Frame / 2 Frames / 3 Frames / 7 Frames
    Sense Up+ Yes
    Auto Gain Control 36 dB Variable Gain
    3D Noise Reduction Off / 1 – 32 Selectable
    2D WDR Off / x2 / x3 / x4
    Privacy Masking Off / On (4 independent areas)
    ePTZ & Digital Zoom Yes
    Alarm Function
    • Image upload over FTP and E-mail by motion detection
    Network Interface 10Mbps / 100Mbps Base-T, RJ-45
    IP Rating IP66
    IK Rating IK7
    Dimensions Ø145 x 115mm
    Weight 1000g
    Power Supply DC12V-9W / PoE-10.2W
