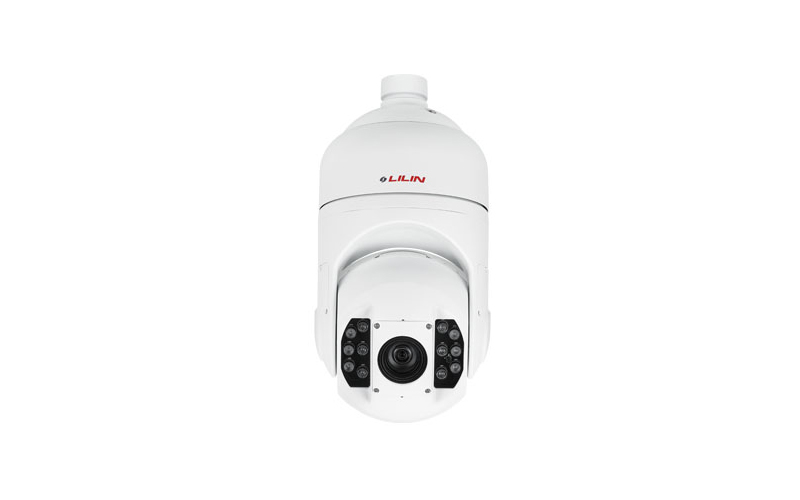

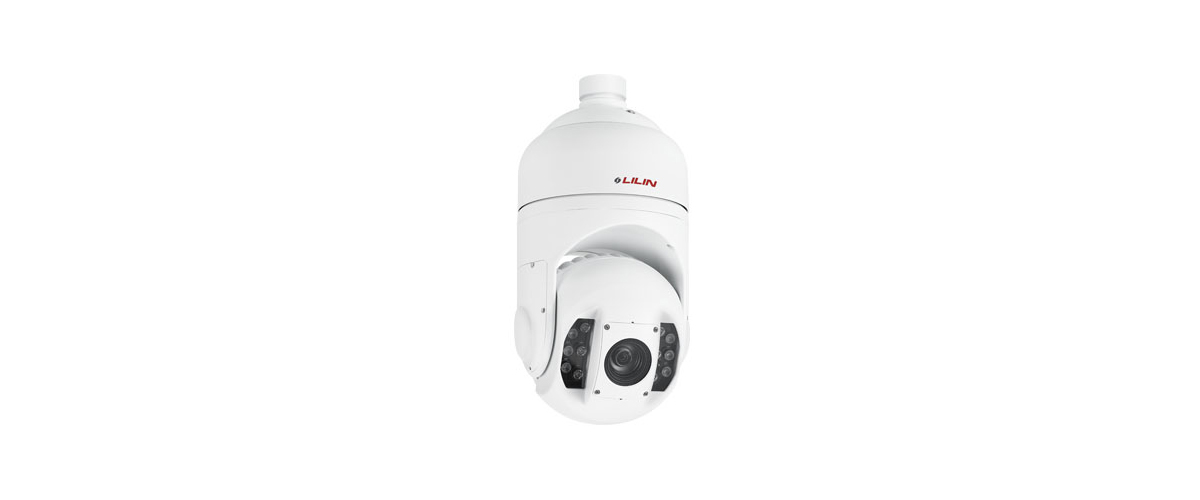

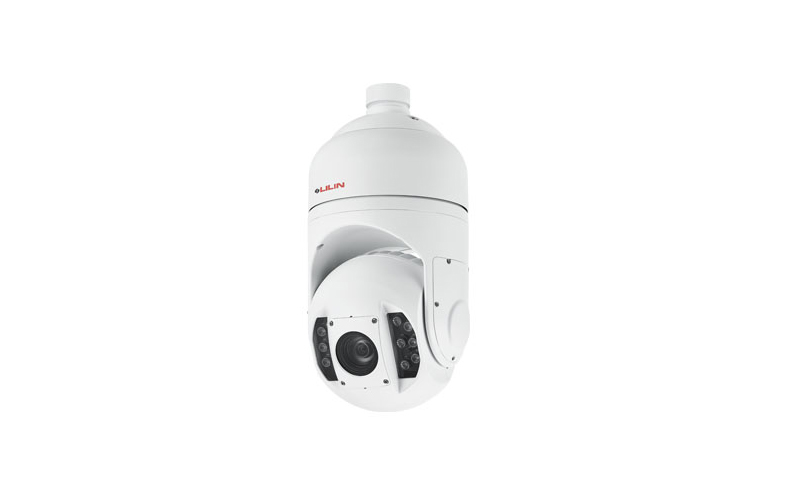

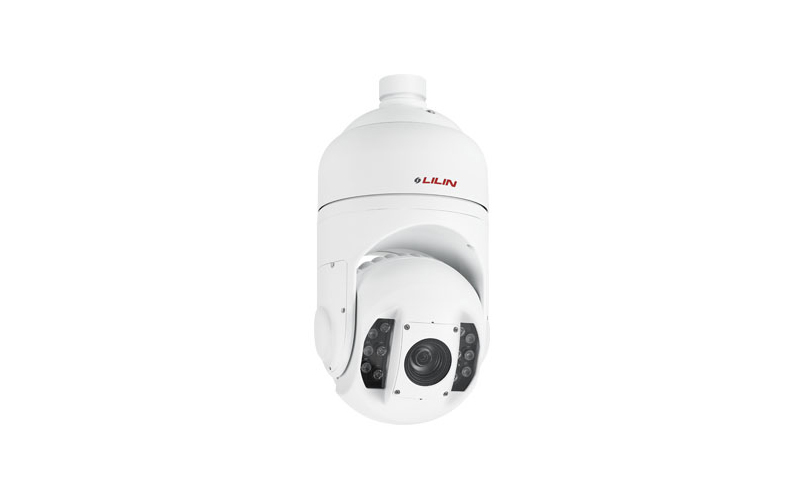

PSR5024EX30

  • 1/2.8" CMOS

  • Full HD - 1920 x 1080 Pixels

  • 30X Optical Zoom Lens
  • Resolution (H x V pixels) 1920 x 1080 Pixels
    Image Sensor 1/2.8" CMOS
    Scanning System Progressive Scan
    IR cut filter Colour (Day), Monochrome (Night), Auto
    Shutter Time Auto / Manual (1/1 - 1/10.000)
    Zoom Ratio 30X Optical Zoom
    Lens/Focal length 4.3mm (Wide) - 129mm (Tele)
    Angle of View
    • 64.45°- 2.41°(H)
    • 39.27° - 1.36°(V)
    IR Radiant Distance 150m
    Peak wavelength 850nm
    Video Compression H.264, Motion JPEG
    Frame Rate
    • H.264 : up to 60 FPS @ 1920 x 1080
    • Motion JPEG : up to 30 FPS @ 720 x 480
    Video Streaming RTP/HTTP, RTP/TCP, RTP/UDP, Multicast
    Video Bitrate 128Kbps – 12Mbps
    Auto Gain Control 0-30 dB
    3D Noise Reduction Off / On (2D, 3D)
    2D WDR Yes
    Privacy Masking Off / On (16 independent areas)
    ePTZ & Digital Zoom 16X
    Alarm Function
    • Alarm / Mtion / Audio / Network loss detection
    Network Interface 10/100/1000Mbps Base-T, RJ-45
    Audio 2-way Audio, G.711 / PCM
    SD Card/ SD card recording Support Micro SD/SDHC/SDXC card
    IP Rating IP66
    Dimensions Ø395 x 198mm
    Weight 6000g
    Power Supply AC24V / DC24V / PoE
