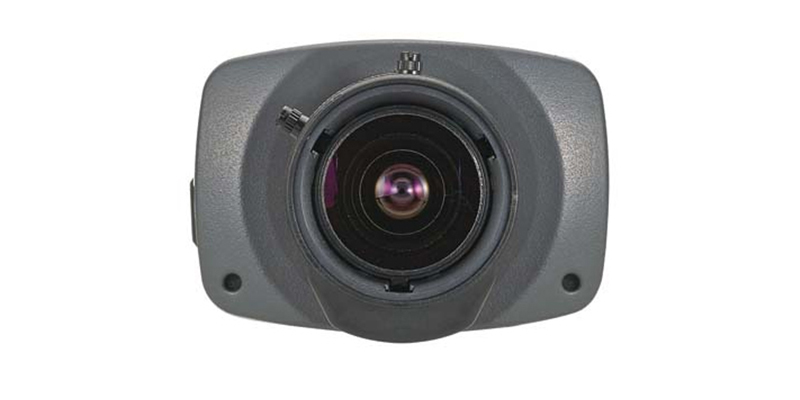

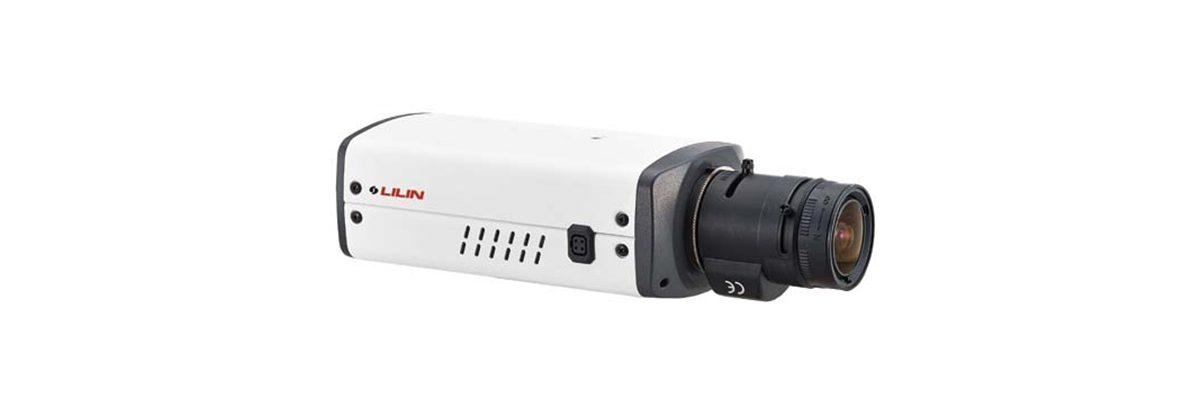

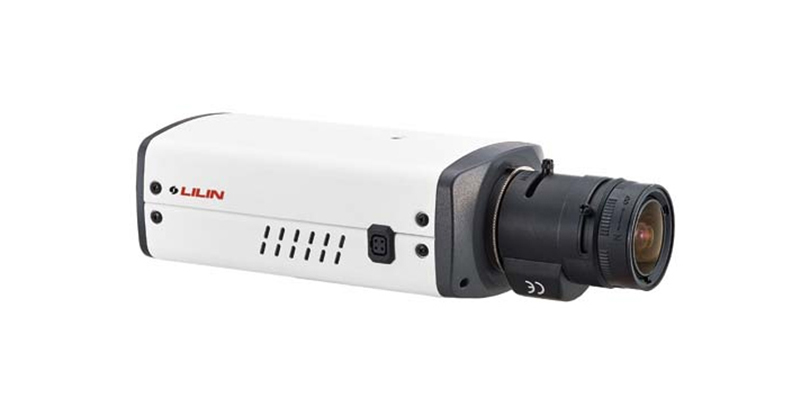

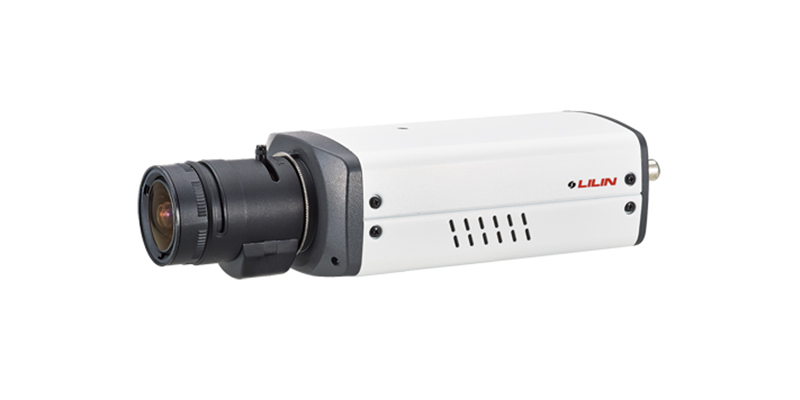

UFG1122

  • 1/2.86" CMOS

  • 1920 x 1080 Pixels

  • Full HD
  • Resolution (H x V) 1920 x 1080 Pixels
    Image Sensor 1/2.86" CMOS
    Scanning System Progressive Scan
    IR cut filter Colour (Day), Monochrome (Night), Auto, Schedule
    Shutter Time 1/30(1/25)s - 1/30.000s
    Video Compression H.264, Motion JPEG
    Frame Rate
    • H.264 : up to 120 FPS @ 1920 x 1080
    • MJPEG : up to 30 FPS @ 1920 x 1080
    Video Streaming RTP/HTTP, RTP/TCP, RTP/UDP, Multicast
    Video Bitrate 128Kbps - 12Mbps
    Sense Up Off / 1 Frame / 2 Frames
    Sense Up+ Yes
    Auto Gain Control 54 dB Variable Gain
    3D Noise Reduction Off / 1 – 32 Selectable
    2D WDR Off / Auto / x2 / x3 / x4
    Privacy Masking Off / On (4 independent areas)
    ePTZ & Digital Zoom Yes, ROI is supported
    Alarm Function
    • Tampering / Audio / Motion / Alarm detection triggering recording into SD card
    • Image upload over FTP and E-mail by tampering / Audio / Motion detection
    Network Interface 10Mbps/100/1000Mbps Base-T, RJ-45
    Audio 2-way audio , G.711 / PCM
    SD Card Support Micro SD/SDHC card
    Dimensions(W x H x D)mm 70 x 50 x 135mm
    Weight 420g
    Power Supply D12V-7.2W / PoE-8W
