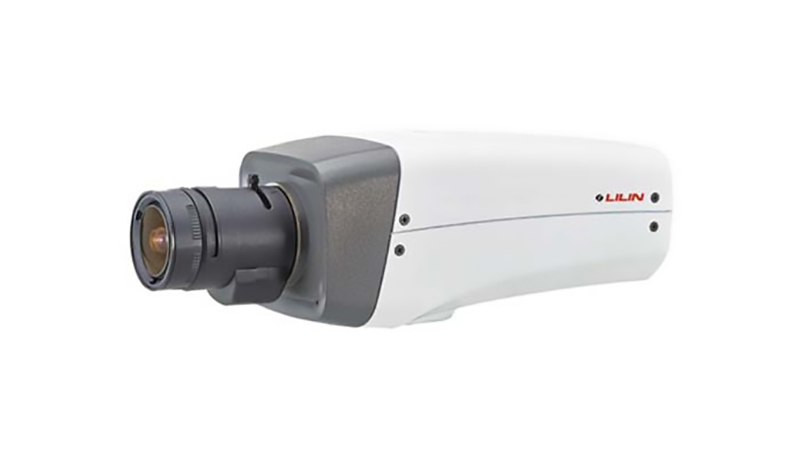

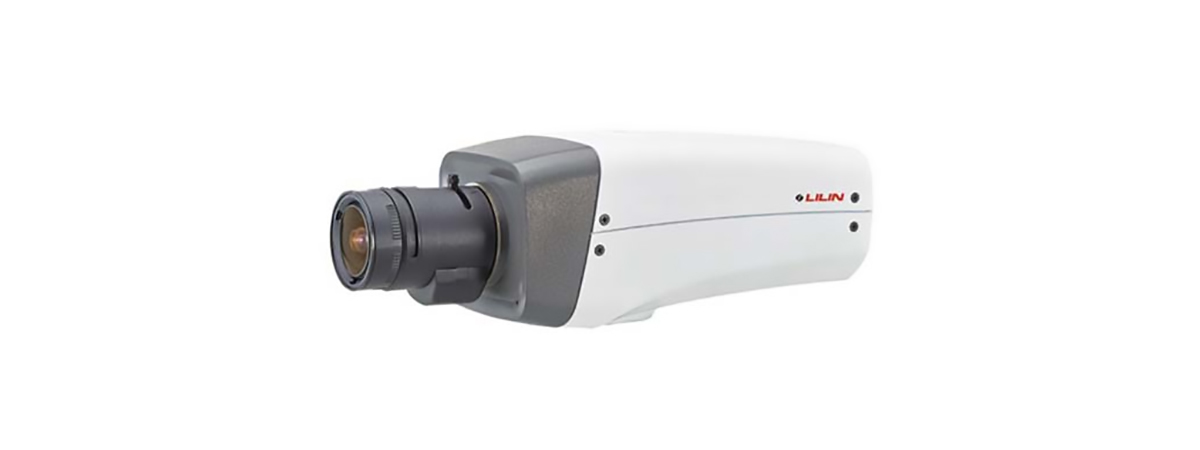

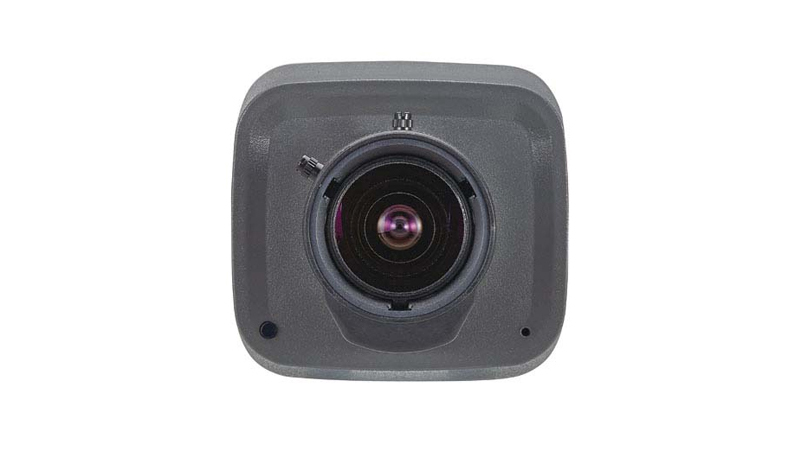

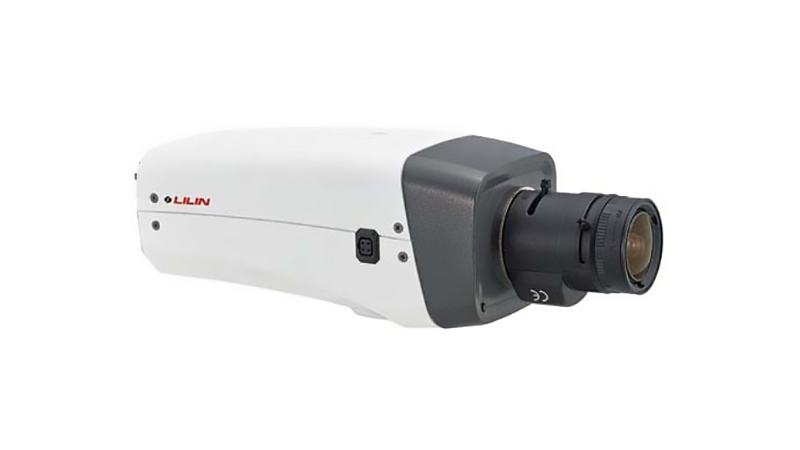

ZG1232

  • 1/2.8" CMOS

  • 2048 x 1536 Pixels

  • Full HD
  • Resolution (H x V) 2048 x 1536 Pixels
    Image Sensor 1/2.8" CMOS
    Scanning System Progressive Scan
    IR cut filter Colour (Day), Monochrome (Night), Auto, Schedule
    Shutter Time 1/30s - 1/8.000s
    Lens 3.3-10.5mm
    Angle of View
    • 79° - 29.8°(H)
    • 73.1° - 26.1°(V)
    • 127.7° - 43.5°(D)
    Video Compression H.264, Motion JPEG
    Frame Rate
    • H.264 : up to 15 FPS @ 2048 x 1536
    • MJPEG : up to 15 FPS @ 1920 x 1080
    Video Streaming RTP/HTTP, RTP/TCP, RTP/UDP, Multicast
    Video Bitrate 128Kbps – 8Mbps
    Sense Up Off / 1 Frame / 2 Frames / 3 Frames / 7 Frames
    Sense Up+ Yes
    Auto Gain Control 36 dB Variable Gain
    3D Noise Reduction Off / 1 – 32 Selectable
    2D WDR Off / Auto / x2 / x3 / x4
    Privacy Masking Off / On (4 zones)
    ePTZ & Digital Zoom Yes, ROI is supported
    Alarm Function
    • Face / Tampering / Audio / Motion / Alarm detection
    Network Interface 10Mbps / 100Mbps Base-T, RJ-45
    Audio 2-way audio , G.711 / PCM
    SD Card Support Micro SD/SDHC card
    Dimensions (W x H x D)mm 70 x 71 x 156
    Weight 450g
    Power Supply DC12V-7W / PoE-8W
