                Manufacturer:



Interface
ueyele

      Main Features
  • Interface USB 2.0
  • C-Mount, CS-Mount, S-Mount and board-level models
  • Trigger, strobe and two I/O - board models only
  • I2C bus for external device/peripheral control
  • Monochrome and color models

                                 IDS uEyeLE
Camera Model Housing Resolution  Shutter Frame Rate  Sensor Size Sensor Model
UI-1225LE-C/M LE Housed 752 x 480 Pixels  Global 87 FPS 1/3" CMOS Aptina MT9V022
UI-1226LE-C/M LE SMount 752 x 480 Pixels Global 87 FPS 1/3" CMOS Aptina MT9V022
UI-1228LE-C/M LE Board level 752 x 480 Pixels Global 87 FPS 1/3" CMOS Aptina MT9V022
UI-1245LE-C/M LE Housed 1280 x 1024 Pixels   Global 25 FPS 1/3" CMOS e2v EV76C560BB/ EV76
UI-1246LE-C/M LE SMount 1280 x 1024 Pixels Global 25 FPS 1/1.8" CMOS e2v EV76C560BB/ EV76
UI-1248LE-C/M LE Board level 1280 x 1024 Pixels Global 25 FPS 1/1.8" CMOS e2v EV76C560BB/ EV76
UI-1545LE-M LE Housed 1280 x 1024 Pixels Rolling 25 FPS 1/2" CMOS Aptina MT9M001STM
UI-1546LE-M LE SMount 1280 x 1024 Pixels Rolling 25 FPS 1/2" CMOS Aptina MT9M001STM
UI-1548LE-M LE Board level 1280 x 1024 Pixels Rolling 25 FPS 1/2" CMOS Aptina MT9M001STM
UI-1645LE-C LE Housed 1280 x 1024 Pixels Rolling 25 FPS 1/3" CMOS Aptina MT9M131STC
UI-1646LE-C LE SMount 1280 x 1024 Pixels Rolling 25 FPS 1/3" CMOS Aptina MT9M131STC
UI-1648LE-C LE Board level 1280 x 1024 Pixels Rolling 25 FPS 1/3" CMOS Aptina MT9M131STC
UI-1555LE-C LE Housed 1600 x 1200 Pixels Rolling 18 FPS 1/3" CMOS Aptina MT9D011
UI-1556LE-C LE SMount 1600 x 1200 Pixels Rolling 18 FPS 1/3" CMOS Aptina MT9D011
UI-1558LE-C LE Board level 1600 x 1200 Pixels Rolling 18 FPS 1/3" CMOS Aptina MT9D011
UI-1465LE-C LE Housed 2048 x 1536 Pixels Rolling 11 FPS 1/2" CMOS Aptina MT9M001STC
UI-1466LE-C LE SMount 2048 x 1536 Pixels Rolling 11 FPS 1/2" CMOS Aptina MT9M001STC
UI-1468LE-C LE Board level 2048 x 1536 Pixels Rolling 11 FPS 1/2" CMOS Aptina MT9M001STC
UI-1485LE-C/M LE Housed 2560 x 1920 Pixels Rolling/Global Start 6 FPS 1/2" CMOS Aptina MT9P031STM/C
UI-1486LE-C/M LE SMount 2560 x 1920 Pixels Rolling/Global Start 6 FPS 1/2" CMOS Aptina MT9P031STM/C
UI-1488LE-C/M LE Board level 2560 x 1920 Pixels Rolling/Global Start 6 FPS 1/2" CMOS Aptina MT9P031STM/C
UI-1495LE-C/M LE Housed 3840 x 2748 Pixels Rolling/Global Start 3 FPS 1/2" CMOS Aptina MT9J003
UI-1496LE-C/M LE SMount 3840 x 2748 Pixels Rolling/Global Start 3 FPS 1/2" CMOS Aptina MT9J003
UI-1498LE-C/M LE Board level 3840 x 2748 Pixels Rolling/Global Start 3 FPS 1/2" CMOS Aptina MT9J003

ueye se
      Main Features
  • USB 2.0 interface
  • Compact industrial housing
  • Opto-isolated trigger and strobe
  • CCD and CMOS models
  • Monochrome and color models


                                             IDS  uEye SE
Camera Model Resolution Shutter Frame Rate Sensor Size Sensor Model
UI-1220SE-M/C 752 x 480 Pixels  Global 87 FPS 1/3" CMOS Aptina MT9V022
UI-1240SE-M/C 1280 x 1024 Pixels   Global 25 FPS 1/3" CMOS e2v EV76C560BB/EV76
UI-1540SE-M 1280 x 1024 Pixels Rolling 25 FPS 1/2" CMOS Aptina MT9M001STM
UI-1640SE-C 1280 x 1024 Pixels Rolling 30 FPS 1/3" CMOS Aptina MT9M131STC
UI-1550SE-C 1600 x 1200 Pixels Rolling 18 FPS 1/3" CMOS Aptina MT9D001
UI-1460SE-C 2048 x 1536 Pixels Rolling 15 FPS 1/2" CMOS Aptina MT9M131STC
UI-1480SE-M/C 2560 x 1920 Pixels Rolling/Global Start 53 FPS 1/2" CMOS Aptina MT9P031STM
UI-1490SE-M/C 3840 x 2748 Pixels Rolling/Global Start 3 FPS 1/2" CMOS Aptina MT9J003STC/M
UI-2410SE-M/C 640 x 480 Pixels Global 17.7 FPS 1/3" CCD Sony ICX267
UI-2210SE-M/C 640 x 480 Pixels Global 75 FPS 1/2" CCD Sony ICX414
UI-2220SE-M/C 640 x 480 Pixels Global 52 FPS 1/2" CCD Sony ICX415
UI-2230SE-M/C 1024 x 768 Pixels Global 30 FPS 1/3" CCD Sony ICX204
UI-2140SE-M/C 1280 x 960 Pixels Global 25 FPS 1/3" CCD Sony ICX445
UI-2240SE-M/C 1280 x 1024 Pixels Global 15 FPS 1/2" CCD Sony ICX205
UI-2250SE-M/C 1600 x 1200 Pixels Global 12 FPS 1/1.8" CCD Sony ICX274
UI-2280SE-M/C 2448x2050 Pixels Global 6 FPS 2/3" CCD Sony ICX655

USB RE
IDS uEye RE

      Main Features
  • USB 2.0 interface
  • Compact industrial housing
  • Opto-isolated trigger and strobe
  • CCD and CMOS models
  • Monochrome and color models


Camera Model Resolution Shutter Frame Rate Sensor Size Sensor Model
UI-1220RE-M/C 752 x 480 Pixels  Global 87 FPS 1/3" CMOS Aptina MT9V022
UI-1240RE-M/C 1280 x 1024 Pixels   Global 25 FPS 1/3" CMOS e2v EV76C560BB/EV76
UI-1540RE-M 1280 x 1024 Pixels Rolling 25 FPS 1/2" CMOS Aptina MT9M001STM
UI-1640RE-C 1280 x 1024 Pixels Rolling 30 FPS 1/3" CMOS Aptina MT9M131STC
UI-1550RE-C 1600 x 1200 Pixels Rolling 18 FPS 1/3" CMOS Aptina MT9D001
UI-1460RE-C 2048 x 1536 Pixels Rolling 15 FPS 1/2" CMOS Aptina MT9M131STC
UI-1480RE-M/C 2560 x 1920 Pixels Rolling/Global Start 53 FPS 1/2" CMOS Aptina MT9P031STM
UI-1490RE-M/C 3840 x 2748 Pixels Rolling/Global Start 3 FPS 1/2" CMOS Aptina MT9J003STC/M
UI-2410RE-M/C 640 x 480 Pixels Global 17.7 FPS 1/3" CCD Sony ICX267
UI-2210RE-M/C 640 x 480 Pixels Global 75 FPS 1/2" CCD Sony ICX414
UI-2220RE-M/C 640 x 480 Pixels Global 52 FPS 1/2" CCD Sony ICX415
UI-2230RE-M/C 1024 x 768 Pixels Global 30 FPS 1/3" CCD Sony ICX204
UI-2140RE-M/C 1280 x 960 Pixels Global 25 FPS 1/3" CCD Sony ICX445
UI-2240RE-M/C 1280 x 1024 Pixels Global 15 FPS 1/2" CCD Sony ICX205
UI-2250RE-M/C 1600 x 1200 Pixels Global 12 FPS 1/1.8" CCD Sony ICX274
UI-2280RE-M/C 2448x2050 Pixels Global 6 FPS 2/3" CCD Sony ICX655

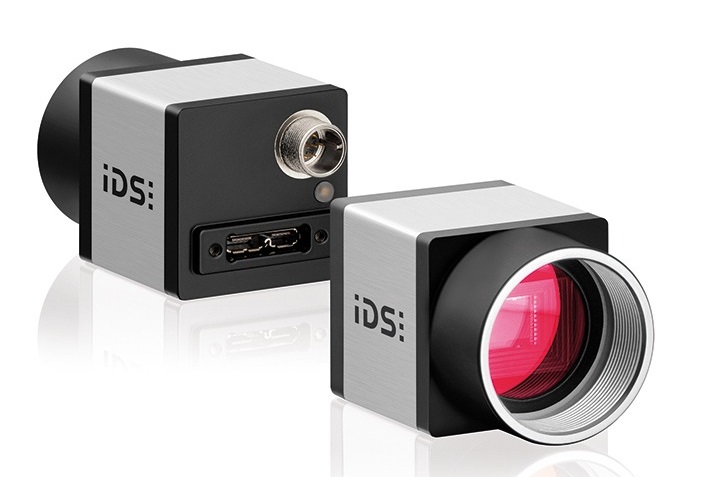

IDS uEye CP

      Main Features
  • USB 3.0 interface
  • Rugged IP65/IP67 housing
  • Opto-isolated trigger and strobe
  • CCD and CMOS models
  • Monochrome and color models


Camera Model Resolution Shutter Frame Rate Sensor Size Sensor Model
UI-3220CP-M 752 x 480 Pixels  Global 100 FPS 1/3" CMOS Aptina MT9V032
UI-3220CP-C 752 x 480 Pixels   Global 25 FPS 1/1.8" CMOS Aptina MT9V032
UI-3140CP-M 1280 x 1024 Pixels  Global 169 FPS 1/2" CMOS Onsemi NOIP1SE1300A-QDI
UI-3140CP-C 1280 x 1024 Pixels  Global 169 FPS 1/2" CMOS Onsemi NOIP1SN1300A-QDI
UI-3240CP-M 1280 x 1024 Pixels  Global 60 FPS 1/1.8" CMOS e2v EV76C560ABT
UI-3240CP-C 1280 x 1024 Pixels  Global 60 FPS 1/1.8" CMOS e2v EV76C560ACT
UI-3250CP-M 1600 x 1200 Pixels  Global 60 FPS 1/1.8" CMOS e2v EV76C570ABT
UI-3250CP-C 1600 x 1200 Pixels  Global 60 FPS 1/1.8" CMOS e2v EV76C570ACT
UI-3260CP-M 1936 x 1216 Pixels  Global 41 FPS 1/1.2" CMOS Sony IMX249LLJ-C
UI-3260CP-C 1936 x 1216 Pixels  Global 41 FPS 1/1.2" CMOS Sony IMX249LQJ-C
UI-3360CP-M 2048 x 1088 Pixels  Global 152 FPS 2/3" CMOS CMOSIS CMV2000
UI-3360CP-NIR 2048 x 1088 Pixels  Global 152 FPS 2/3" CMOS CMOSIS CMV2000
UI-3360CP-C 2048 x 1088 Pixels  Global 152 FPS 2/3" CMOS CMOSIS CMV2000
UI-3370CP-M 2048 x 2048 Pixels  Global 80 FPS 1" CMOS CMOSIS CMV4000
UI-3370CP-NIR 2048 x 2048 Pixels  Global 80 FPS 1" CMOS CMOSIS CMV4000
UI-3370CP-C 2048 x 2048 Pixels  Global 80 FPS 1" CMOS CMOSIS CMV4000
UI-3480CP-M 2560 x 1920 Pixels  Rolling 15 FPS 1/2" CMOS Aptina MT9P031STM
UI-3580CP-C 2560 x 1920 Pixels  Rolling 15 FPS 1/2" CMOS Aptina MT9P006STC
UI-3590CP-C 4912 x 3684 Pixels  Rolling 21 FPS 1/2" CMOS Aptina AR1820HS

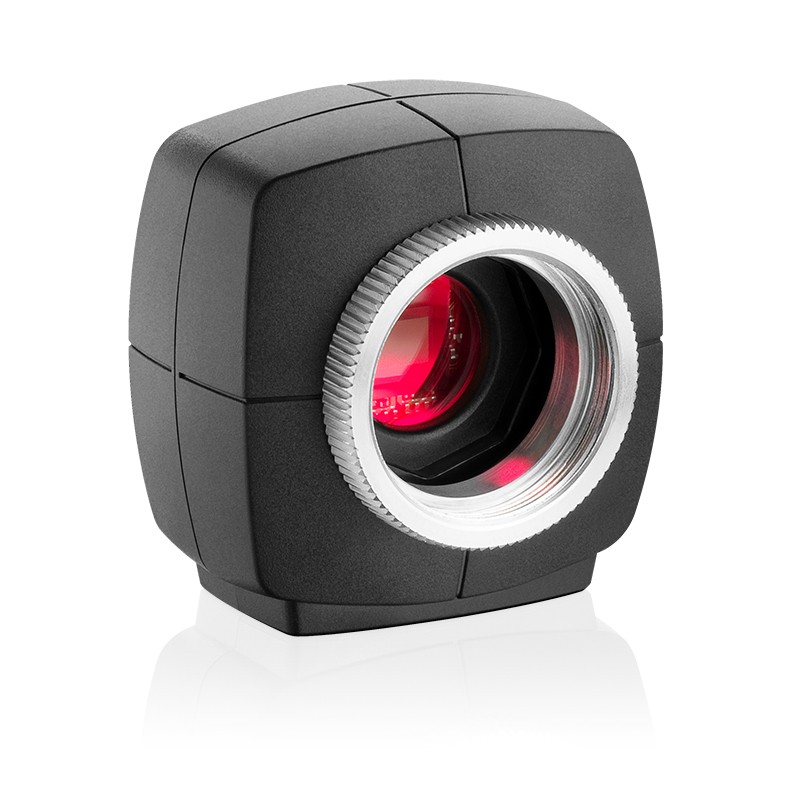

IDS uEye ML

      Main Features
  • USB 3.0 interface
  • Rugged IP65/IP67 housing
  • Opto-isolated trigger and strobe
  • CCD and CMOS models
  • Monochrome and color models


Camera Model Resolution Shutter Frame Rate Sensor Size Sensor Model
UI-3240ML-M/C 1280 x 1024 Pixels  Rolling/Global Start 60 FPS 1/1.8" CMOS e2v EV76C560
U3-3240ML-M/C 1280 x 1024 Pixels  Global 59 FPS 1/1.8" CMOS e2v EV76C560
UI-3250ML-M/C 1600 x 1200 Pixels  Rolling/Global Start  60 FPS 1/1.8" CMOS e2v EV76C570
U3-3250ML-M/C 1600 x 1200 Pixels  Global 40 FPS 1/1.8" CMOS e2v EV76C570
UI-3480ML-M 2560 x 1920 Pixels  Rolling/Global Start 15.2 FPS 1/2" CMOS Onsemi MT9P031
U3-3480ML-M 2560 x 1920 Pixels  Rolling 12.5 FPS 1/2" CMOS  Onsemi MT9P031
UI-3580ML-C2560 x 1920 Pixels Rolling/Global Start15.2 FPS1/2" CMOSOnsemi MT9P006
U3-3580ML-C2560 x 1920 Pixels Rolling12.5 FPS1/2" CMOSOnsemi MT9P006



IDS uEye LE

      Main Features
  • USB 3.0 interface
  • Rugged IP65/IP67 housing
  • Opto-isolated trigger and strobe
  • CCD and CMOS models
  • Monochrome and color models


Camera Model Resolution Shutter Frame Rate Sensor Size Sensor Model
UI-3240LE 1280 x 1024 Pixels  Global 60 FPS 1/1.8" CMOS e2v EV76C560
U3-3240LE-M/C 1280 x 1024 Pixels  Global 59 FPS 1/1.8" CMOS e2v EV76C560
UI-3241LE-M/C 1280 x 1024 Pixels  Rolling/Global Start  60 FPS 1/1.8" CMOS e2v EV76C560
U3-3241LE-M/C 1280 x 1024 Pixels  Global 59 FPS 1/1.8" CMOS e2v EV76C560
UI-3242LE-M/C 1280 x 1024 Pixels  Rolling/Global Start 60 FPS 1/1.8" CMOS e2v EV76C560
U3-3242LE-M/C 1280 x 1024 Pixels  Global 59 FPS 1/1.8" CMOS e2v EV76C560
UI-3250LE-M/C1600 x 1200 Pixels Rolling/Global Start60 FPS1/1.8" CMOSe2v EV76C570
U3-3250LE-M/C1600 x 1200 Pixels Global40 FPS1/1.8" CMOSe2v EV76C570
UI-3251LE-M/C1600 x 1200 Pixels Rolling/Global Start60 FPS1/1.8" CMOSe2v EV76C570
U3-3251LE-M/C1600 x 1200 Pixels Global40 FPS1/1.8" CMOSe2v EV76C570
UI-3252LE-M/C1600 x 1200 Pixels Rolling/Global Start60 FPS1/1.8" CMOSe2v EV76C570
U3-3252LE-M/C1600 x 1200 Pixels Global40 FPS1/1.8" CMOSe2v EV76C570
UI-3480LE-M2560 x 1920 PixelsRolling/Global Start15.2 FPS1/2" CMOSOnsemi MT9P031
U3-3480LE-M2560 x 1920 PixelsRolling12.5 FPS1/2" CMOSOnsemi MT9P031
UI-3481LE-M2560 x 1920 PixelsRolling/Global Start15.2 FPS1/2" CMOSOnsemi MT9P031
U3-3481LE-M2560 x 1920 PixelsRolling12.5 FPS1/2" CMOSOnsemi MT9P031
UI-3482LE-M2560 x 1920 PixelsRolling/Global Start15.2 FPS1/2" CMOSOnsemi MT9P031
U3-3482LE-M2560 x 1920 PixelsRolling12.5 FPS1/2" CMOSOnsemi MT9P031
UI-3580LE-C2560 x 1920 PixelsRolling/Global Start15.2 FPS1/2" CMOSOnsemi MT9P006
U3-3580LE-C2560 x 1920 PixelsRolling12.5 FPS1/2" CMOSOnsemi MT9P006
UI-3581LE-C2560 x 1920 PixelsRolling/Global Start15.2 FPS1/2" CMOSOnsemi MT9P006
U3-3581LE-C2560 x 1920 PixelsRolling12.5 FPS1/2" CMOSOnsemi MT9P006
UI-3582LE-C2560 x 1920 PixelsRolling/Global Start15.2 FPS1/2" CMOSOnsemi MT9P006
U3-3582LE-C2560 x 1920 PixelsRolling12.5 FPS1/2" CMOSOnsemi MT9P006
UI-3590LE-C4912 x 3684 PixelsRolling12.2 FPS1/2.3" CMOSOnsemi AR1820HS
UI-3591LE-C4912 x 3684 PixelsRolling12.2 FPS1/2.3" CMOSOnsemi AR1820HS
UI-3592LE-C4912 x 3684 PixelsRolling12.2 FPS1/2.3" CMOSOnsemi AR1820HS
