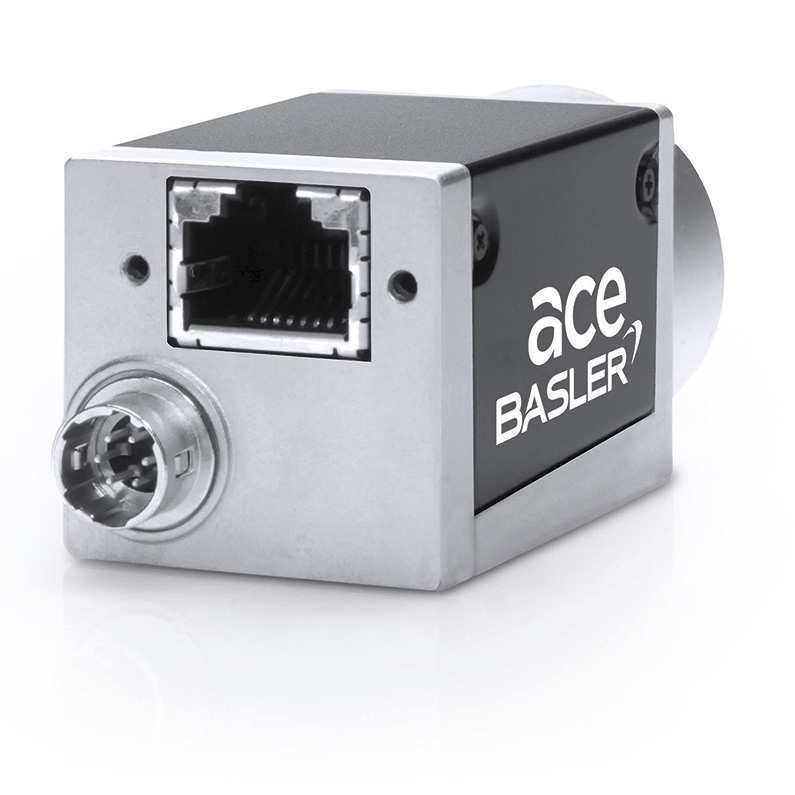

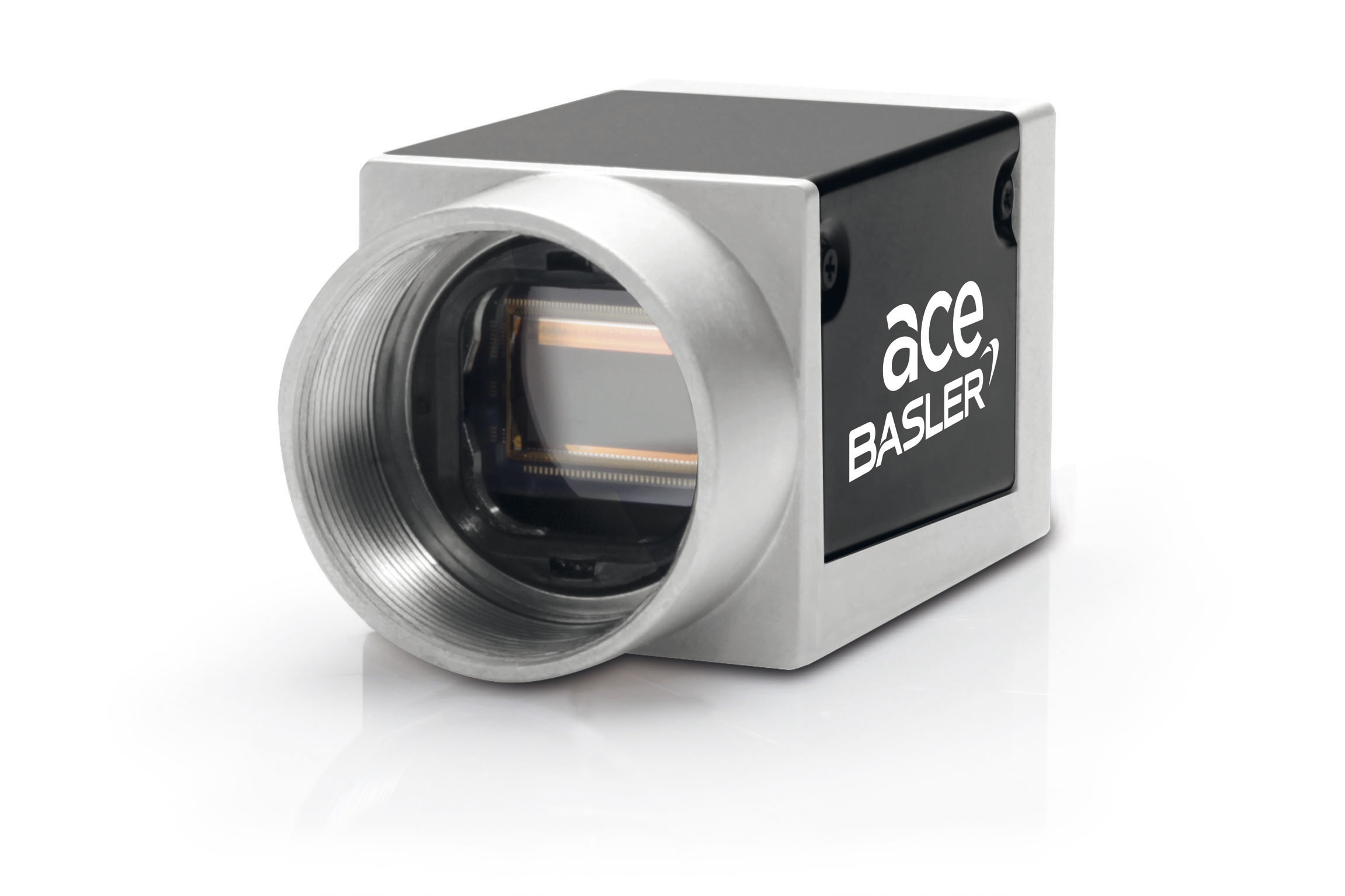

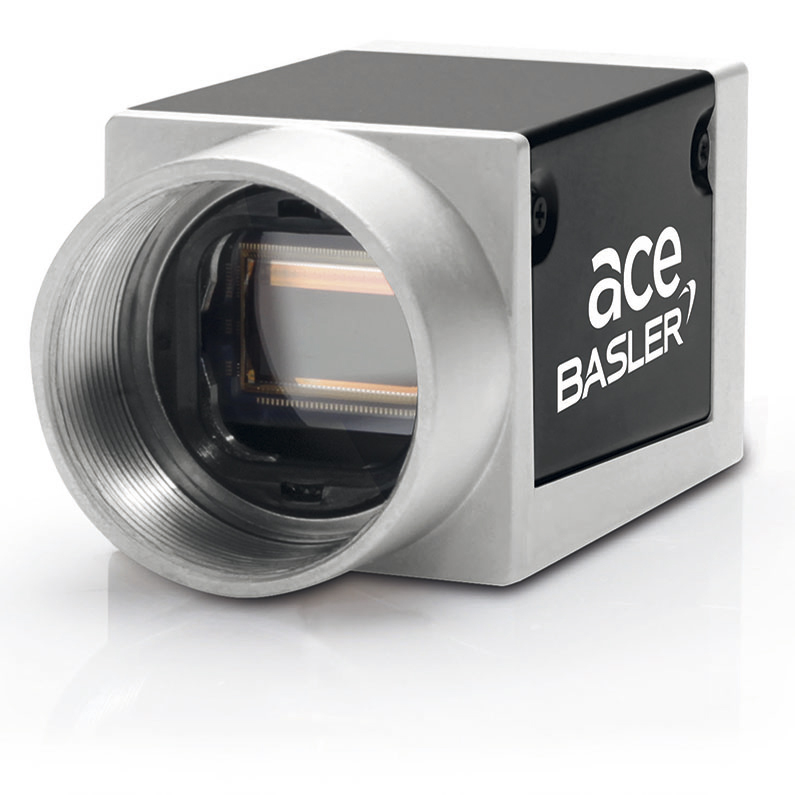

a2A2448-23gmBAS
1/1.8" CMOS, 23 FPS
2448 x 2048 Pixels, Monochrome
Global Shutter
Request Quote
Specifications
Dimensions
Documents
Resolution (H x V pixels)
2448 x 2048 Pixels
Max. Image Circle
1/1.8"
Sensor Type
CMOS Monochrome
Shutter
Global Shutter
Pixel Size horizontal/vertical
2.74 µ x 2.74 µ
Frame Rate
23 FPS
Interface
GigE
Pixel Bit Depth
8/10/12 bits
Exposure Control
Programmable via the camera API
External Trigger Signal
Synchronization
External Trigger
Software trigger
Free-Run
Housing Size (L x W x H)mm
55.5 mm x 29 mm x 29 mm
Housing Temperature
-10°C - 60°C
Lens Mount
C-Mount
Digital Input
1
General Purpose I/O
2
Power Requirements
PoE or 12-24 VDC
Power Consumption (typical)
3.5 W
Weight (typical)
100g
Sensor
Sony IMX547
Sensor Size (mm)
6.7 mm x 5.6 mm
ace Data Sheet
ace GigE Users Manual
