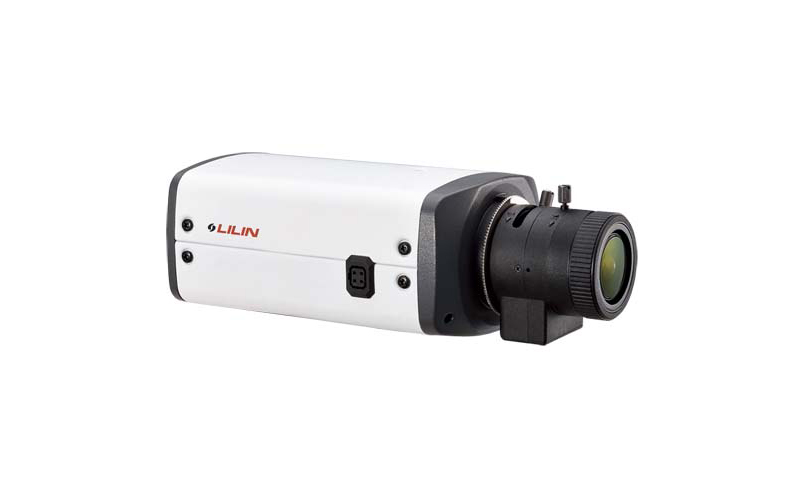

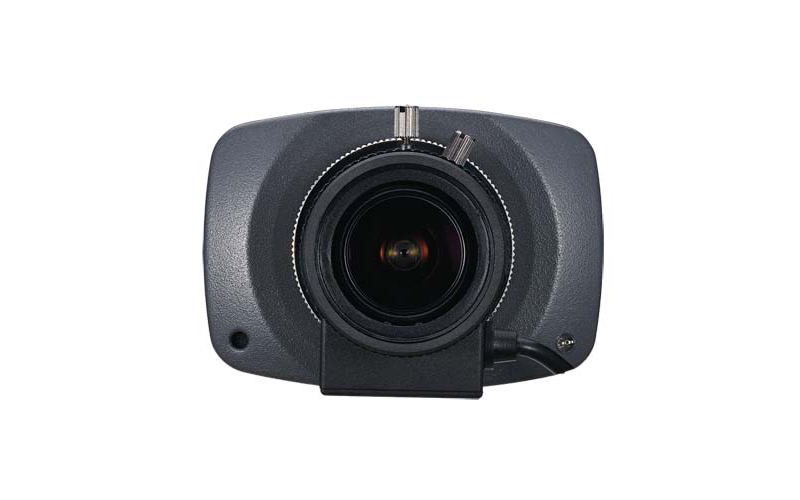

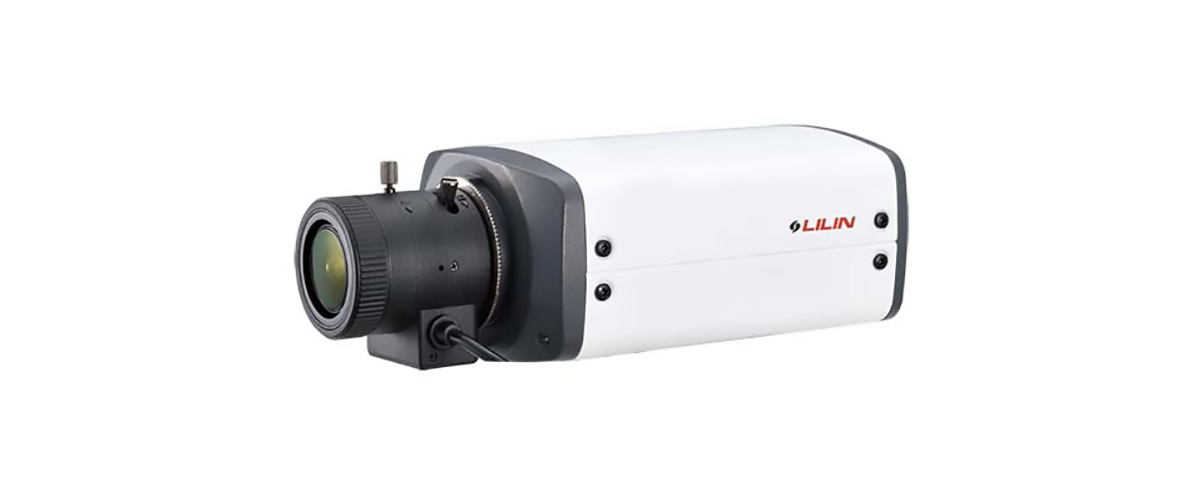

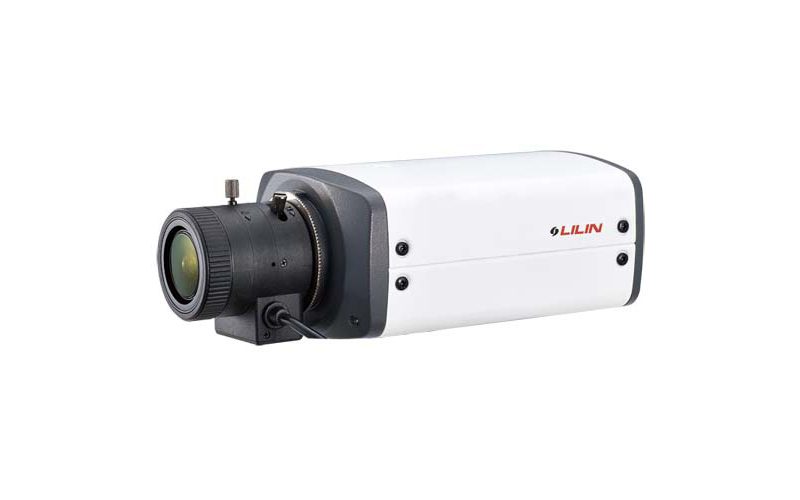

LB1022

  • 1/2.7" CMOS

  • 1920 x 1080 Pixels

  • Full HD
  • Resolution (H x V pixels) 1920 x 1080 Pixels
    Sensor 1/2.7" CMOS
    Scanning System Progressive Scan
    IR cut filter Colour (Day), Monochrome (Night), Auto, Schedule, External Control
    Shutter Time 1/30(1/25)s - 1/8.000s
    Lens 3-10.5mm
    Angle of View
    • 100.1° - 35.8°(H)
    • 79.2 °- 21.3°(V)
    • 132 °- 35.5°(D)
    Video Compression H.264, Motion JPEG
    Frame Rate
    • H.264 : up to 15 FPS @ 1920 x 1080
    • Motion JPEG : up to 15 FPS @ 1920 x 1080
    Video Streaming RTP/HTTP, RTP/TCP, RTP/UDP, Multicast
    Video Bitrate 128Kbps – 8Mbps
    Sense Up Off / 1 Frame / 2 Frames / 3 Frames / 7 Frames
    Sense Up+ Yes
    Auto Gain Control 36 dB Variable Gain
    3D Noise Reduction Off / 1 – 32 Selectable
    2D WDR Off / Auto / x2 / x3 / x4
    Privacy Masking Off / On (4 independent areas)
    ePTZ & Digital Zoom Yes
    Alarm Function
    • Alarm / Motion / Audio detection triggering recording into SD card
    • Image upload over FTP and E-mail by audio / Motion Detection
    Network Interface 10Mbps / 100Mbps Base-T, RJ-45
    Audio 2-way Audio, G.711 / PCM
    SD Card Support Micro SD/SDHC card
    Dimensions (W x H x D)mm 70 x 50 x 110
    Weight 380g
    Power Supply DC12V-6W / PoE-7.5W
